FGM 160 Installation and Hook-Up Instructions
62.120.001
Page 20 of 40
5.3.2.3 48°/42° installations
For an installation where the transducer-holder angles are 48° (Downstream) and 42°
(Upstream), the retraction needed for each transducer is 16.2mm for the 48° transducer (see
Figure 27), and 20mm for the 42° transducer (see Figure 28). The transducer distance must
then be increased by 36.2mm (16.2mm+20mm) in the flow computer configuration.

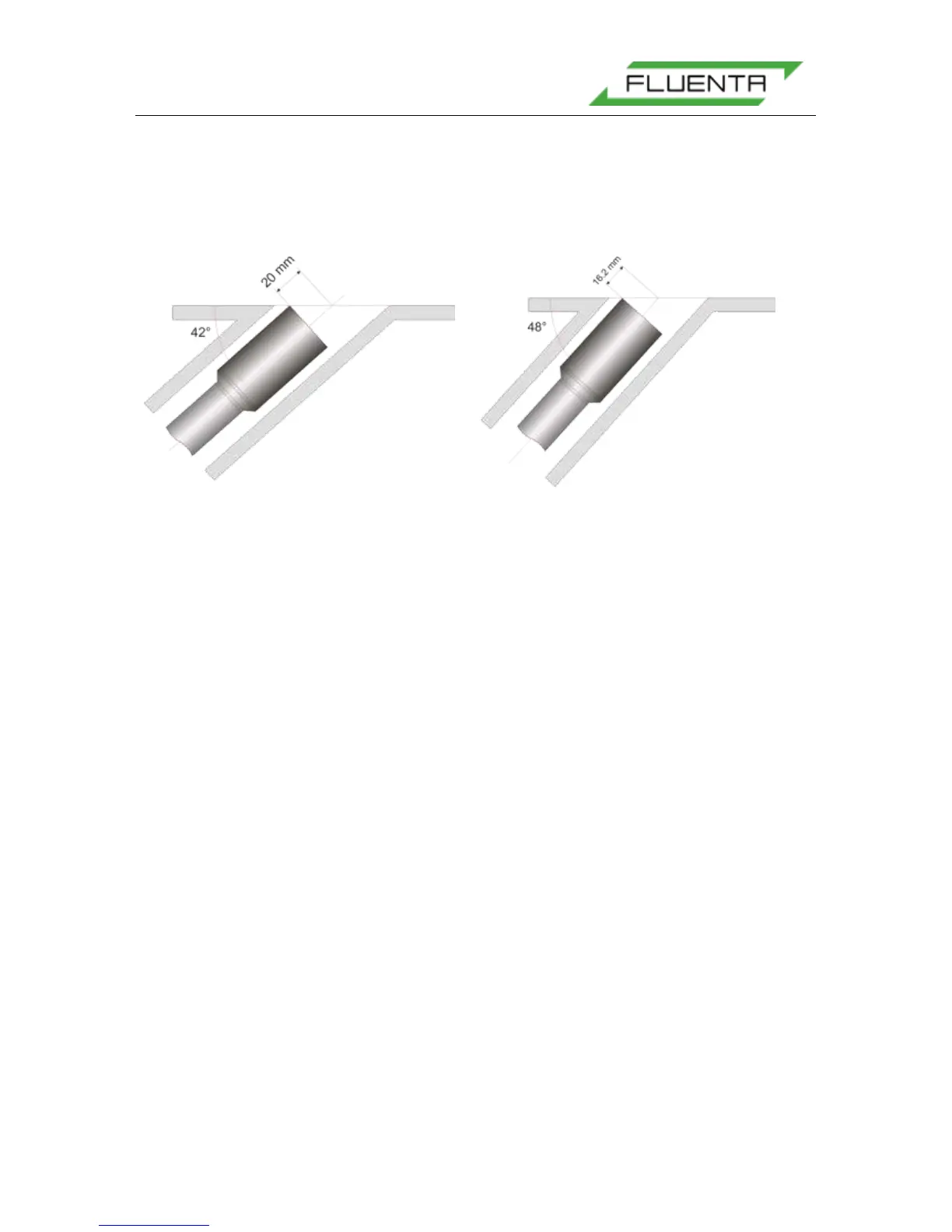

Figure 27: Edge-flush position for a 42°
transducer holder.
Figure 28: Edge-flush position for a 48°
transducer holder.
