6.2.5.4.1 Active Output Configuration (Default Configuration)
In active output configuration, the current loops are powered from FGM 160 computer (30V
loop voltage).
In active output configuration:
- “CLx out” terminal is connected to CL-GND.
- Current loop is connected between CL+Supply and “CLx in” terminals.
(as default all “CLx out” terminals are connected to CL-GND by jumpers at the terminal blocks)

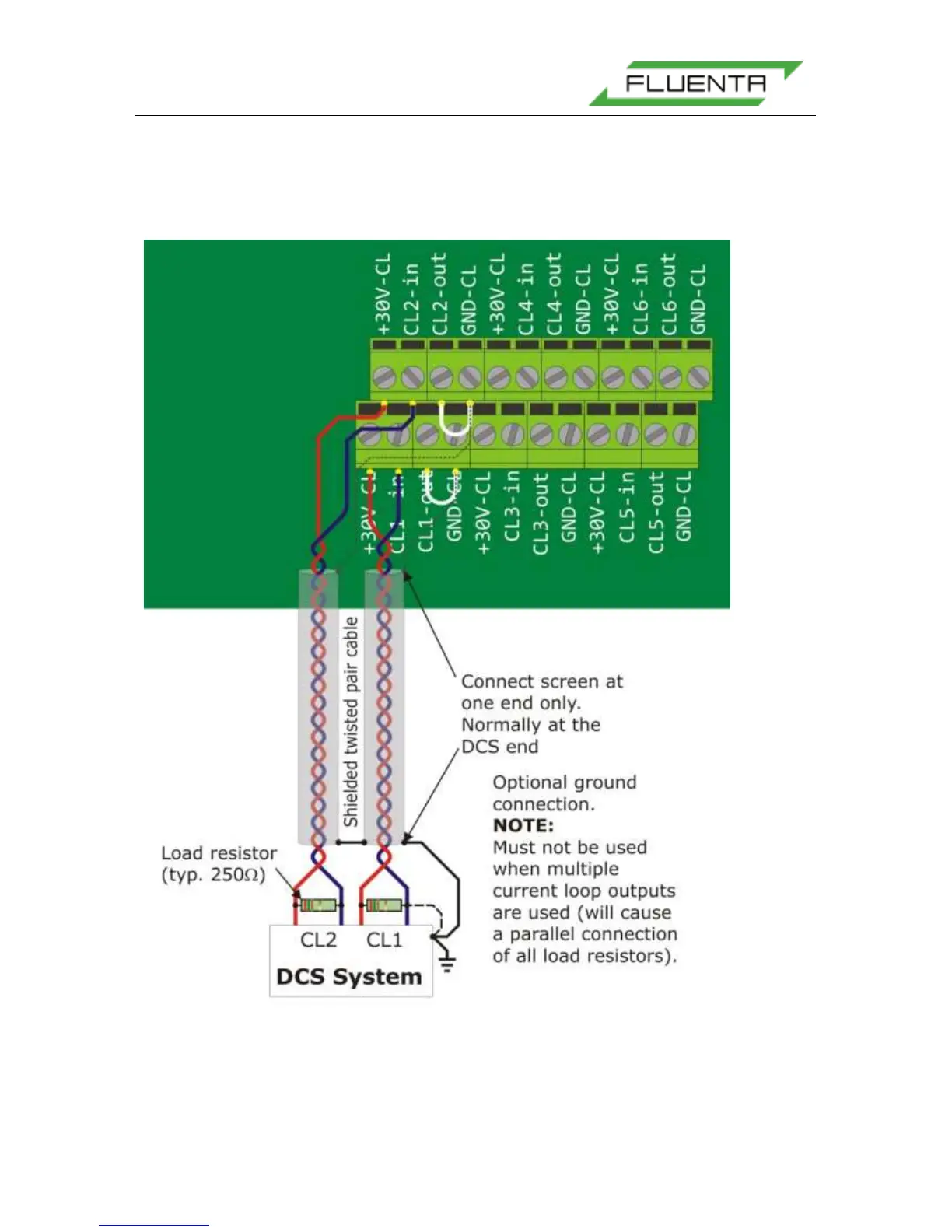

Figure 40: Active output current loop(s), wiring
