6.2.2 Power Cable
The FGM 160 requires a 24 VDC power supply (ref. section 4.3 Equipment Information).
Keep the twisting of the conductor pair and route the conductors to the power input terminals
(ref. Figure 31). If applicable, terminate the screen to the PE Earthbar.

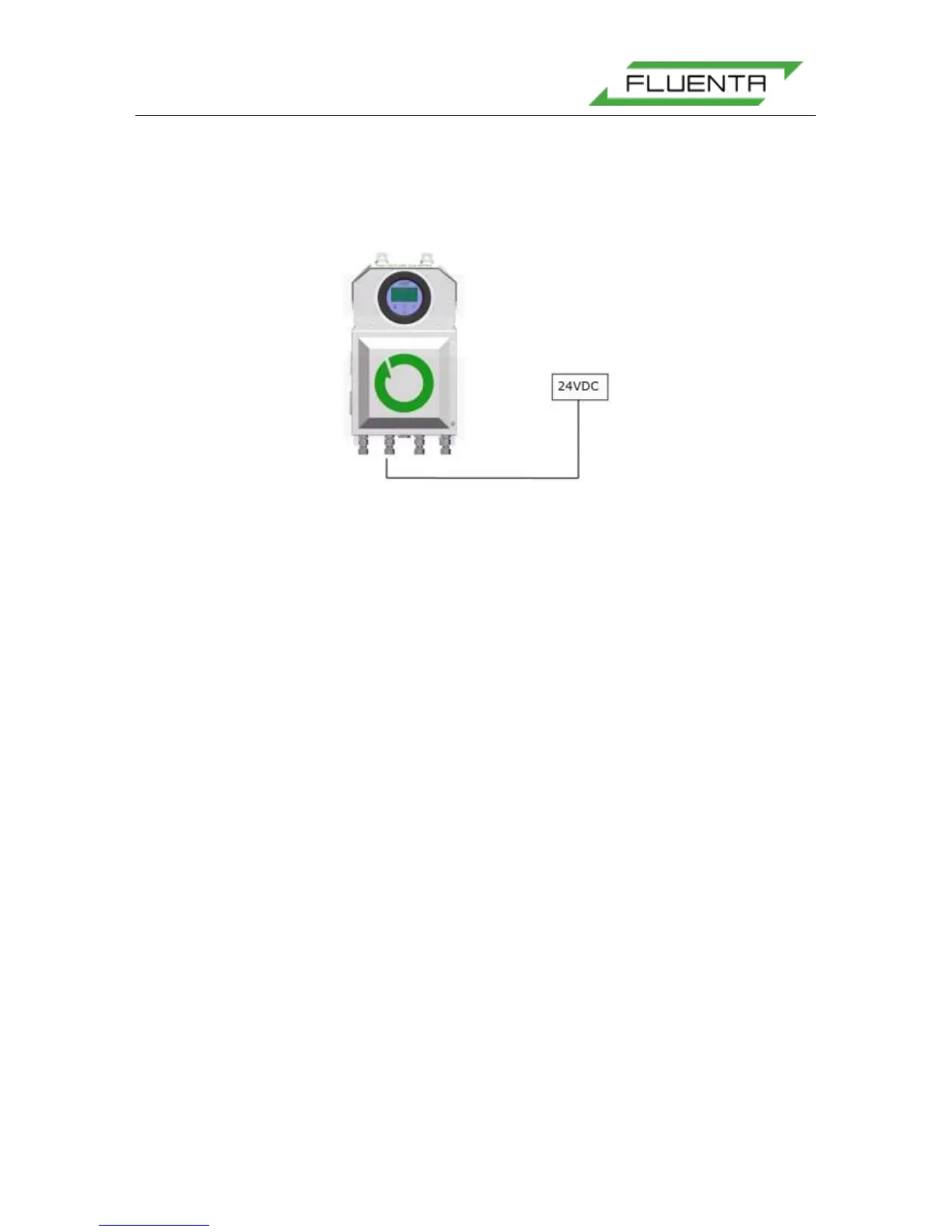

Figure 32: Power to the FGM 160.
NOTE:
It is forbidden to energize the computer without a properly trained
personnel to supervise it. Certified personnel include Fluenta service
engineers, service engineers of our agents who have received proper
training and operators who have attended and completed Fluenta’s
2-day Operators Training Course. Energizing the computer without
Fluenta certified personnel will cause loss of warranty.
6.2.3 Ultrasonic Transducer Cables
The ultrasonic transducer cables are already prepared at the Fluenta production facilities.
These cables should be handled with care.
Verify the labeling/tag name on the cable. Pull the cable through its respective gland; make
sure that the cable gland is of the required type and size. Secure the cable and cable gland.
It is recommended that the cable between the FGM and the transducers is kept as short as
possible, 10 meter cable is supplied as a standard. For other lengths than standard, Fluenta
must be notified.
