fluenta FGM 160 - Figure 46: Multiple Current Loop Outputs, Active Output Configuration; Figure 47: Multiple Current Loop Outputs, Passive Output Configuration; HART Output

FGM 160 Installation and Hook-Up Instructions
62.120.001
Page 35 of 40

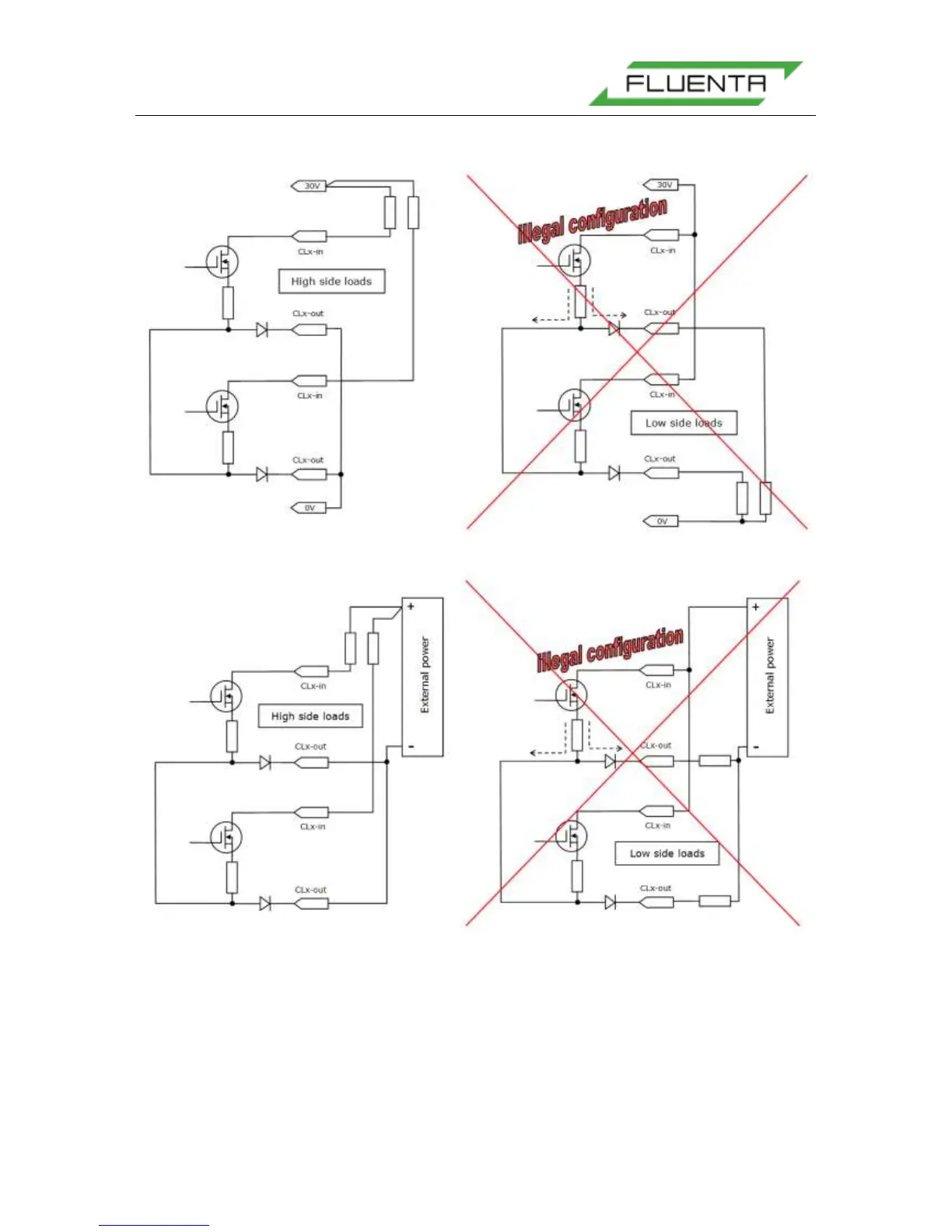

Figure 46: Multiple current loop outputs, Active output configuration
Figure 47: Multiple current loop outputs, Passive output configuration
6.2.5.5 HART Output
One of the current loop outputs (CL6) can be configured and used as a HART
communication channel.
