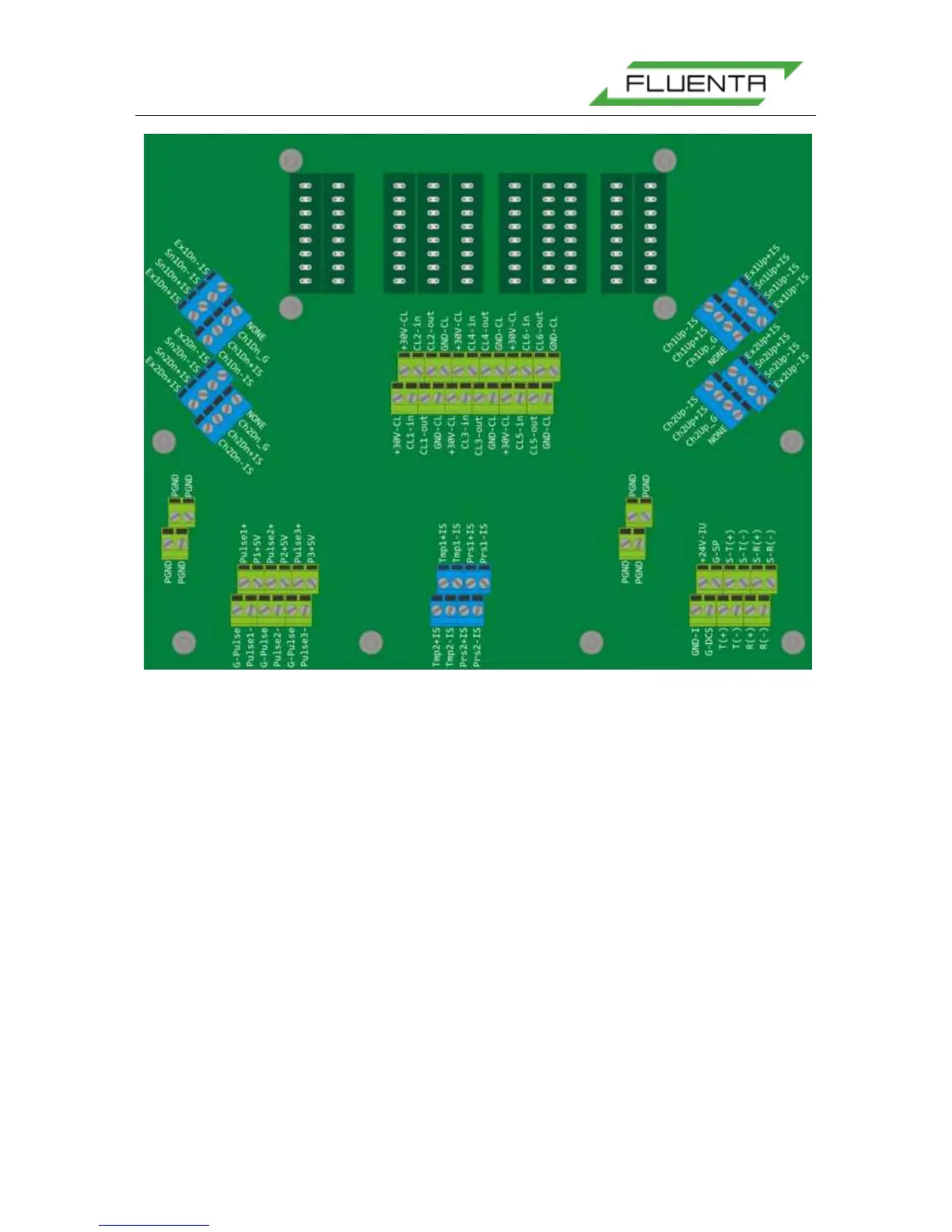

Figure 31: Ex-e enclosure terminals overview.
Note:
Foundation Fieldbus terminal overview available in doc. no. 77.120.217.
6.2.1 Cable Preparations
The steps described below should be carried out at both ends of the cables. However, the
installation of glands is not applicable for the Local Equipment Room.
• Verify the labeling/tag name on the cable.
• Verify whether the cable is “megged” or not.
• Cut the cable to a length that allows slack.
• Pull the cable through its respective gland, and make sure that the cable gland is
of the required type and size.
• Terminate and secure the cable and cable gland according to instructions for the
specific cable gland.
• Strip and terminate the conductors and screen according to good workmanship.
• If the cable is not “megged”, it should be carried out at this point.
• The conductors and screens should also be checked for continuity.
