FGM 160 Installation and Hook-Up Instructions
62.120.001
Page 26 of 40
The ultrasonic transducers shall be connected as follows. This is carried out at the Fluenta
production facilities.
Upstream:
Ch1Up–IS
Ch1Up+IS
Ch1Up_G
Downstream:
Ch1Dn-IS
Ch1Dn+Is
Ch1Dn_G
Keep the twisting of the conductor pairs when connecting to terminals.
All conductors of the prefabricated transducer cables are labeled according to the signal
names of the Ex-e terminals (ref. Figure 34)

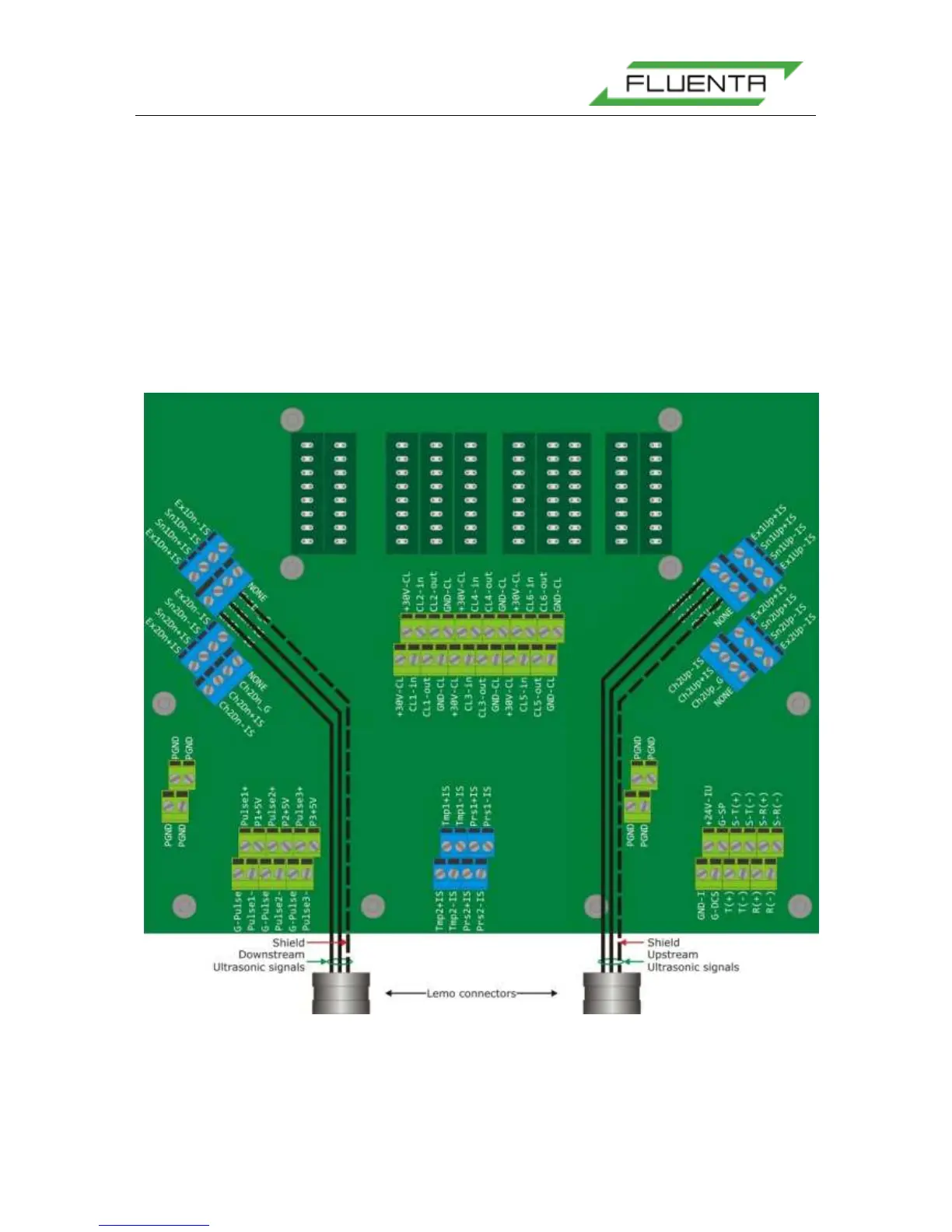

Figure 34: Connection details for ultrasonic transducers.
