Fluidwell F012-P User Manual

F012-P User Manual
FW_F012-P_M_v0501-01_EN Page 29
● COIL LO: sensitivity from about 90mV p-p
● COIL HI: sensitivity from about 20mV p-p
● Type ZF: COIL HI sensitivity from about 10mV p-p
● Type ZG: COIL HI sensitivity from about 5mV p-p.
Vref 1.2 V DC
Common ground unit
2 Coil
3 Coil
1 Shield

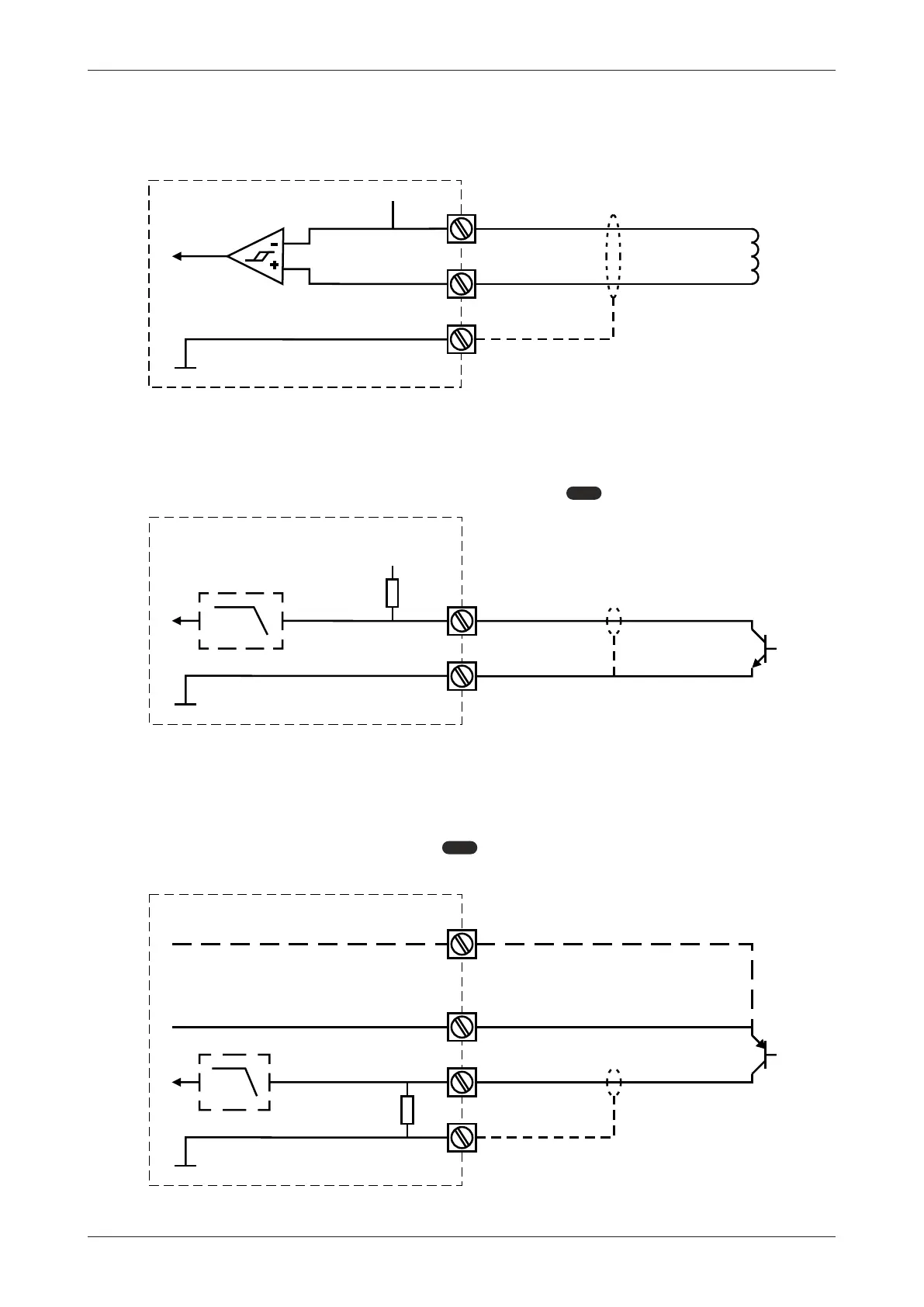

Fig.16: Terminals 1 - 3: Coil signal input
NPN
The F012-P is suitable for use with flowmeters with an NPN output signal. For reliable pulse
detection, the pulse amplitude has to go below 1.2V. Signal setting NPN-LP employs a low-pass
signal noise filter, which limits the maximum input frequency (
SETUP
5.1: FLOWMETER > SIGNAL[»16]).
100 kΩ
Selectable
low-pass filter
Shield
+ 3.2 V DC
NPN
Common ground unit
2 Signal
1 GND
Fig.17: Terminals 1 - 2: NPN signal input
PNP
The F012-P is suitable for use with flowmeters with a PNP output signal. Terminal 3 offers 3.2V
which has to be switched by the sensor to terminal 2 (SIGNAL). For a reliable pulse detection, the
pulse amplitude has to go above 1.2V. Signal setting PNP-LP employs a low-pass signal noise filter,
which limits the maximum input frequency (
SETUP
5.1: FLOWMETER > SIGNAL[»16]).
With Type PD a sensor supply voltage of 8.1V DC can be taken from terminal 6.
Resistance value:
see signal selection table
Common ground unit
Selectable low-pass filter
PNP
2 Signal
6 Type PD: 8.1 V DC
3 +3.2 V DC
1 Shield
Fig.18: Terminals 1 - 3 (6): PNP signal input
