Fluidwell F012-P User Manual

F012-P User Manual
FW_F012-P_M_v0501-01_EN Page 31

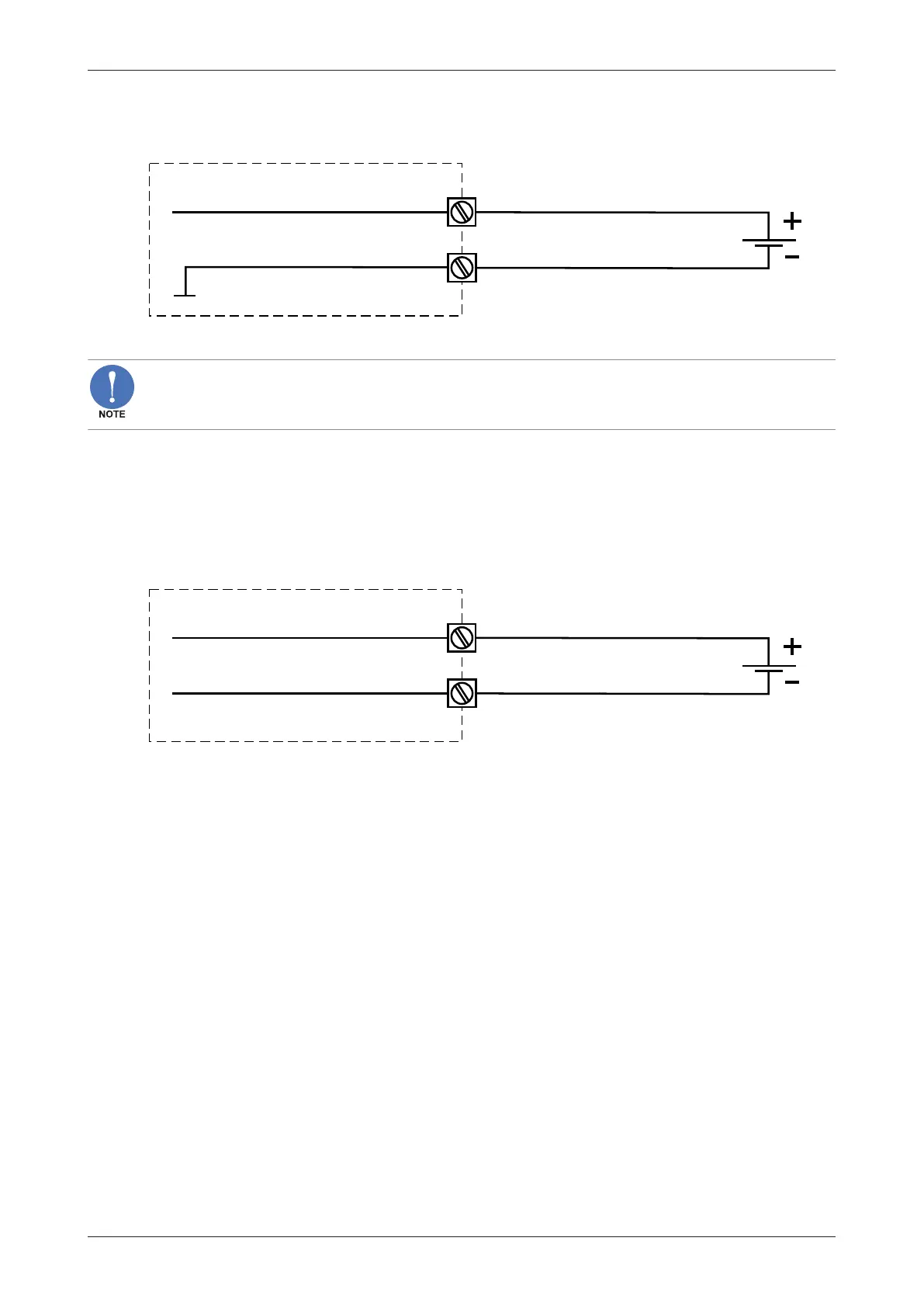

6.5.2 TERMINALS 4-5: POWER SUPPLY - TYPE PX AND PD
To power the F012-P a 8-30V DC (type PX) or 16-30V DC (type PD) power supply can be applied.
Connect the "-" to terminal 4 and the "+" to terminal 5.
PX 8 - 30 V DC
PD 16 - 30 V DC
5
4
Common ground unit
Fig.22: Terminals 4 - 5: Power supply
Optional battery – Type PB
With Type PB your product is equipped with a long-life Lithium primary battery. The battery will
power the F012 when external power is not available.
6.5.3 TERMINAL 6: SENSOR POWER SUPPLY - TYPE PD
With Type PD, a power supply (8.2V, max. 5mA) for the sensor is available at terminal 6.
Please note that the limited sensor supply at terminal 3 is maintained with Type PD.
6.5.4 TERMINALS 9-10: BACKLIGHT POWER SUPPLY - TYPE ZB
To power the optional backlight, a voltage from 20 to 30 V must be connected to the display. The
maximum current will be 30mA. Connect the “-“ to terminal 9 and the “+“ to terminal 10.
20 - 30 V DC10
9
Fig.23: Terminals 9-10: Backlight power - Type ZB
