User Manual F012-P
Page 42 FW_F012-P_M_v0501-01_EN
7.4 CONFIGURATION EXAMPLES INTRINSICALLY SAFE APPLICATIONS
7.4.1 F012-P-PC-(PX)-XI-(ZB) BATTERY POWERED - EX IA IIC/IIIC

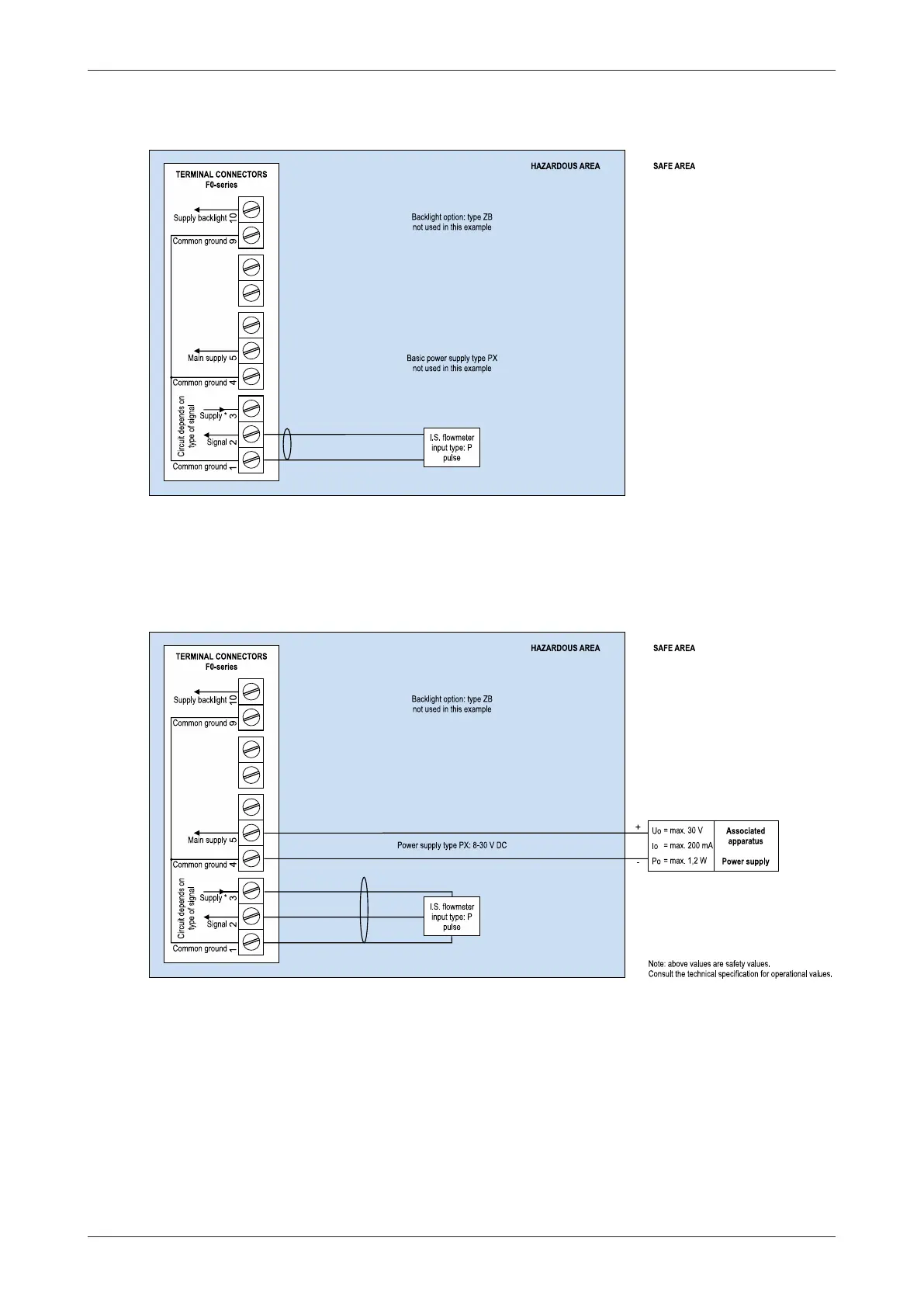

Fig.34: F012-P-PC-(PX)-XI-(ZB) - Ex ia IIC/IIIC - Intrinsically Safe application
Sensor supply voltage on Terminal 3: 1.2-3.2V DC.
Please note: Type PX may be used in combination with the battery (Type PC). PX will power the
F012-P, the battery will be disabled automatically until the power is disconnected
7.4.2 F012-P-PX-XI-(ZB) - EX IA IIC/IIIC
Fig.35: F012-P-PX-XI-(ZB) - Ex ia IIC/IIIC - Intrinsically Safe application
Sensor supply voltage on Terminal 3: 1.2-3.2V DC.
Please note: Type PX may be used in combination with the battery (Type PC). PX will power the
F012-P, the battery will be disabled automatically until the power is disconnected
