6.3.2 MOUNTING THE F-SERIES
The enclosure can be installed by itself or with the aid of a mounting plate in the configurations
shown below. When the product is installed on a wall or onto a meter, please use components and
installation techniques that are suitable for the used materials.
When using the mounting plate, please follow the instructions that came with the accessories.
Alternatively, the product can be panel mounted by using only the front cover.
Wall mount by using the holes on the outside of
the back cover
Wall mount by using the mounting plate
(accessory)
Meter mount by using one of the openings in the
bottom of the back cover
Pipe mount by using the mounting plate with
bracket and hose clamps (accessory)
Panel mount by using only the front cover

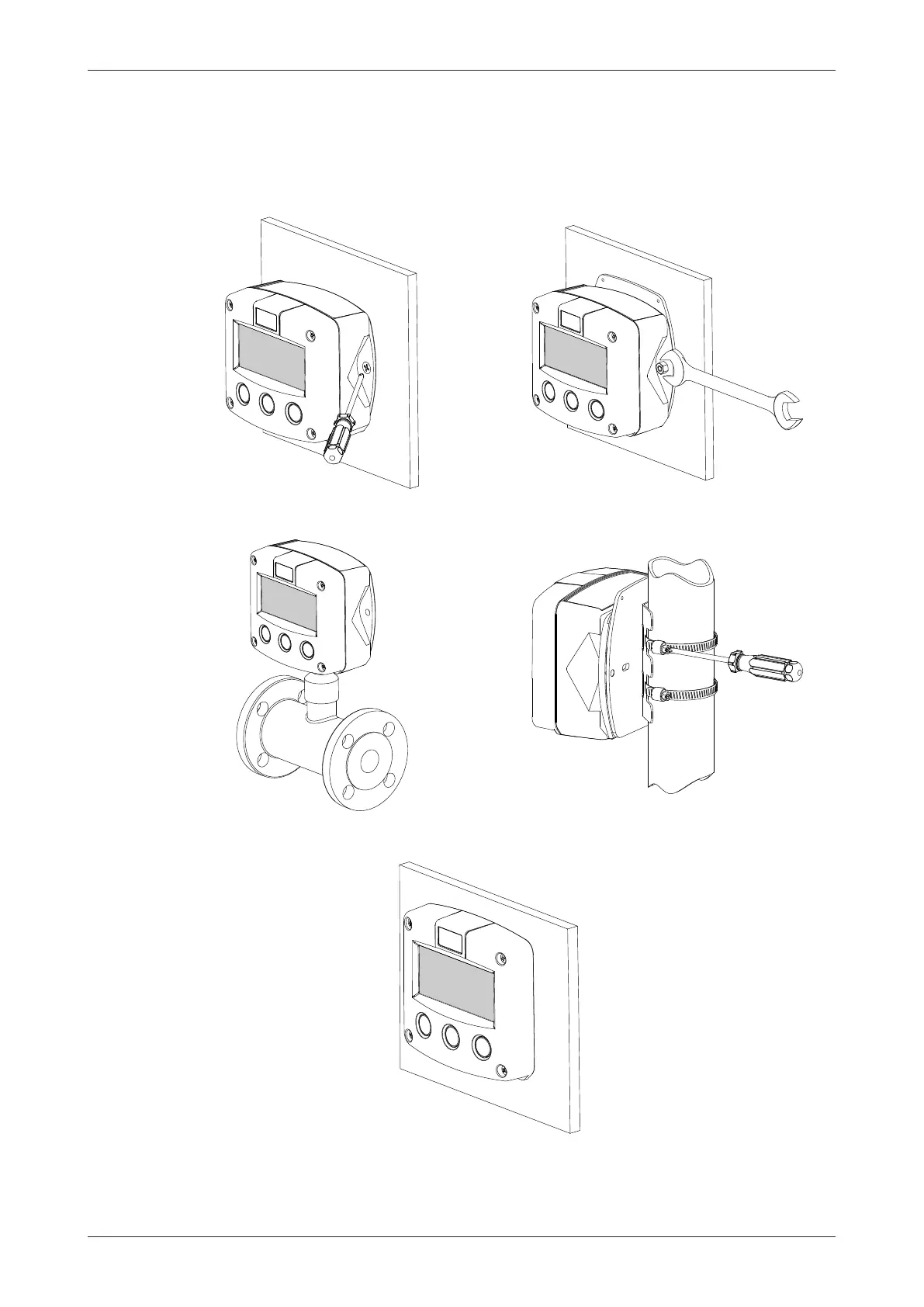

Fig.12: Installation – mounting configurations
