F012-P User Manual

FW_F012-P_M_v0501-01_EN Page 43

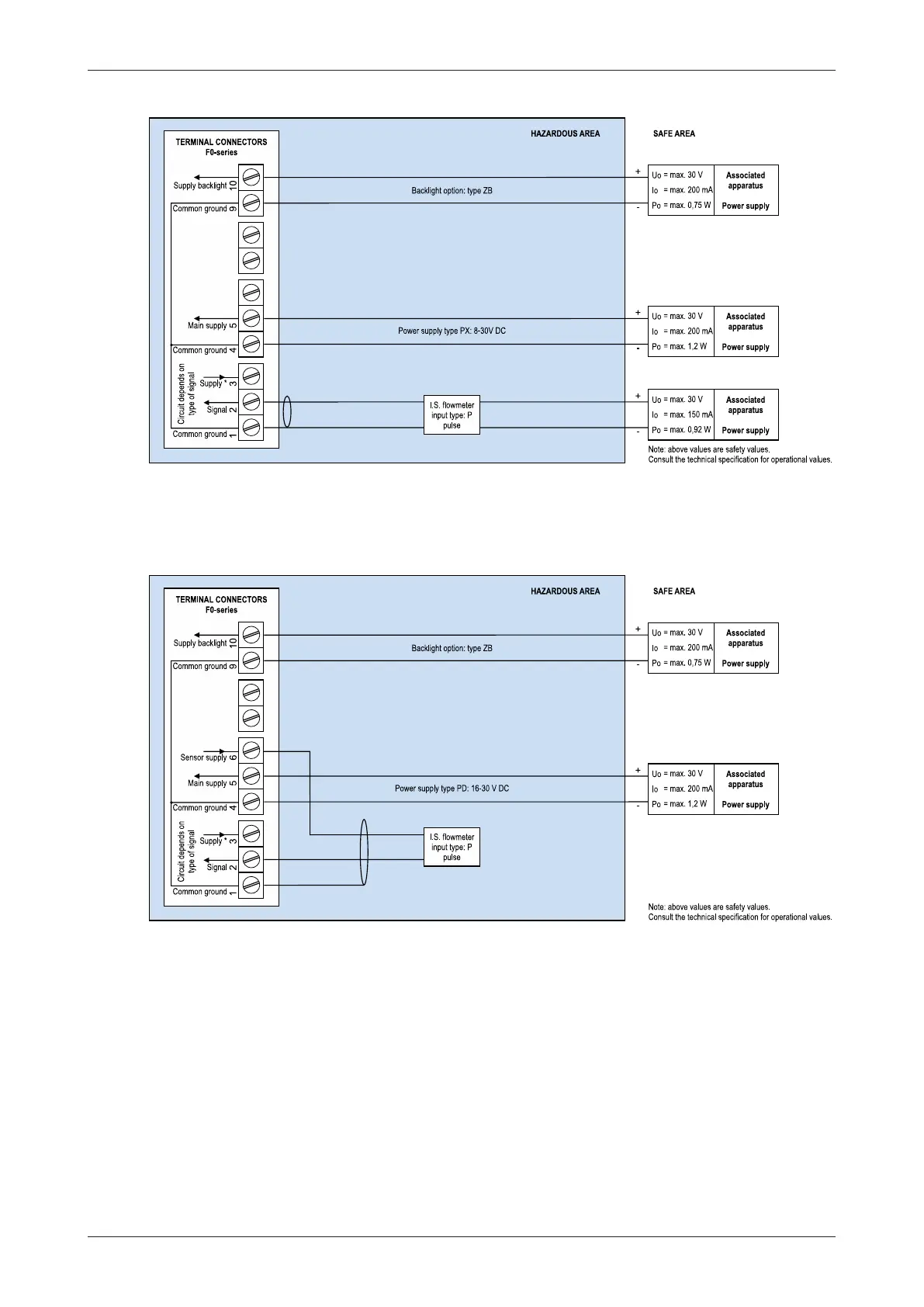

7.4.3 F012-P-PX-XI-ZB - EX IA IIC/IIIC

Fig.36: F012-P-PX-XI-ZB - Ex ia IIC/IIIC - Intrinsically Safe application

Please note: Type PX may be used in combination with the battery (Type PC). PX will power the

F012-P, the battery will be disabled automatically until the power is disconnected.

7.4.4 F012-P-PD-XI-ZB - EX IA IIC/IIIC

Fig.37: F012-P-PD-XI-ZB - Ex ia IIC/IIIC - Intrinsically Safe application

Sensor supply voltage on Terminal 3: 1.2-3.2 V DC, Terminal 6: 8.2 V DC.

Please note: Type PD may be used in combination with the battery (Type PC). PD will power the

F012-P, the battery will be disabled automatically until the power is disconnected
