3 INTRODUCTION
3.1 SYSTEM DESCRIPTION
The flow rate indicator / totalizer model F012-P is a microprocessor-driven instrument designed to
show the current flow rate, resettable total and non-resettable accumulated total.

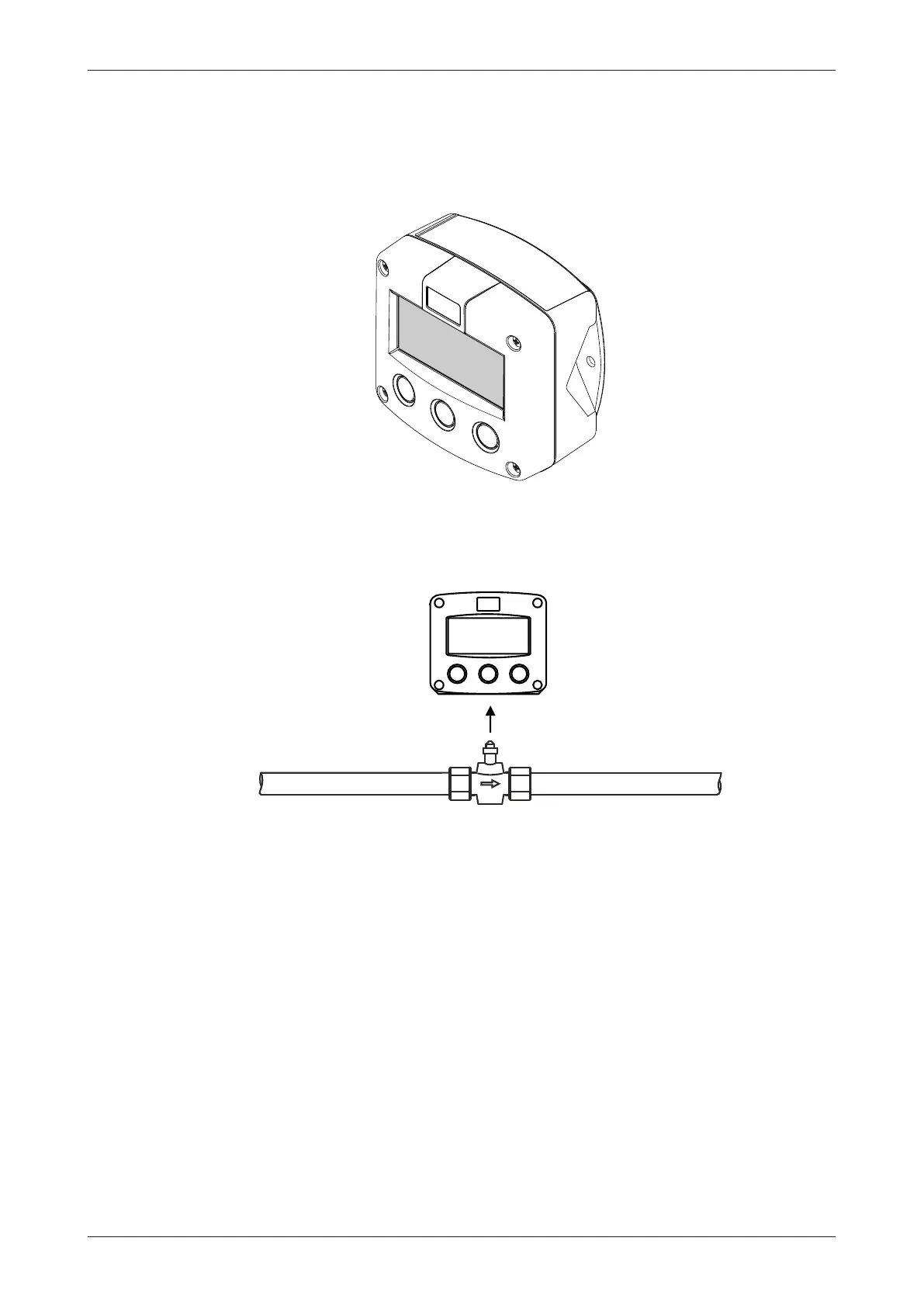

Fig.1: The F012
This manual describes the daily use, configuration and installation of the F012-P with pulse input
from a flowmeter and its available options.
The following figure shows the F012-P used in a typical application.
Fig.2: Typical application
3.2 PRODUCT FEATURES
3.2.1 GENERAL CHARACTERISTICS
● Ultra-low power consumption to allow for long battery life (Type PB/PC)
● Various mounting possibilities
● A choice of enclosure materials: GRP, aluminum or stainless steel (316L), suitable for every
industrial environment
● Ability to process a broad range of sensor signals
● Simple and standard configuration and operator interface.
Configuration
The F012 can be used for many types of application and has a SETUP mode to allow for configuring
it to your requirements. See Section 5: Configuration[»11] for further information.
All settings are stored in an EEPROM memory so they will not be lost if there is a power failure.
3.2.2 INPUT
● One flowmeter with a passive or active pulse, NAMUR or coil signal output
● Several options are available for powering the sensor.
