A sensor supply voltage can be taken from terminal 7.
Shield
Resistance value:
see signal selection table
PNP
Selectable low-pass filter
Common ground unit
6 Signal
5 GND
7 Sensor supply

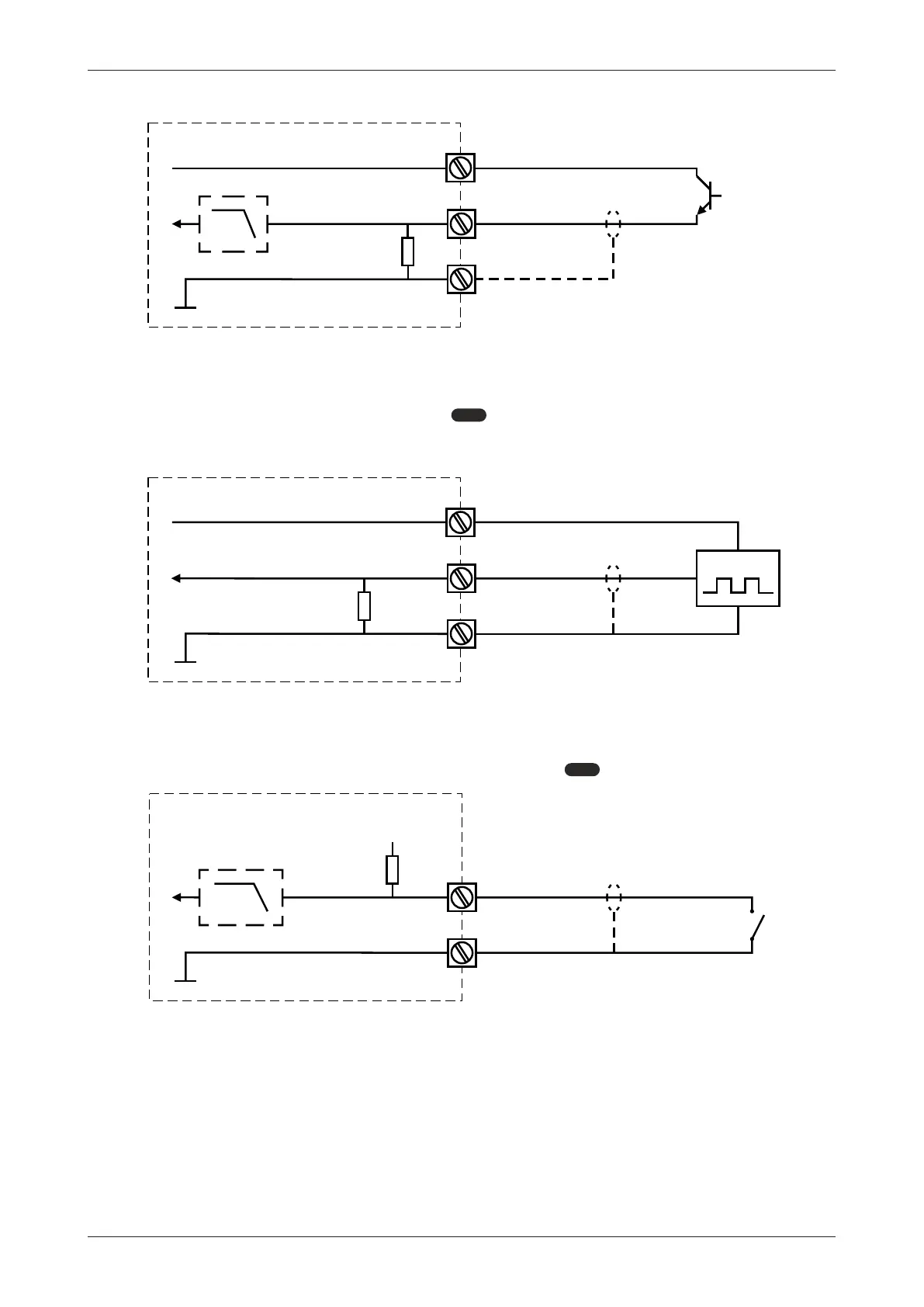

Fig.27: Terminals 5 -7: PNP signal input
Active signal
The F012-P is suitable for flowmeters with an Active signal output. With an input impedance of
47kΩ, the detection level is about 1.2V. See
SETUP
5.1: FLOWMETER > SIGNAL[»16] for more information.
Active signal selection is often used in combination with the sensor supply output offered with type
PM and type PF.
Shield
47 kΩ
Common ground unit
6 Signal
5 GND
7 Sensor supply
Sensor
Fig.28: Terminals 5 - 7: Active signal
Reed switch
The F012-P is suitable for use with flowmeters with a reed switch. To avoid pulse bounce from the
reed switch, it is advised to select REED LP - low-pass filter (
SETUP
5.1: FLOWMETER > SIGNAL[»16]).
1 MΩ
Selectable
low-pass filter
Shield
+ 3.2 V DC
Reed
switch
Common ground unit
6 Signal
5 GND
Fig.29: Terminals 5 - 6: Reed switch signal
