Fluke 190-104 - Pictures Showing Disassembly Steps

Fluke 190-104/190-204
Service Manual
6-6
Note 1: when installing the LCD-module into the top case, take care that no dust or
dirt is present between module and the window/decal.
Note 2: before reinstalling the Main PCA module on to the top case, put the grey
plastic strip around the BNC-inputs in place.
6.2.7 Pictures Showing Disassembly Steps
Note: pictures may be subject to minor changes without prior notice.

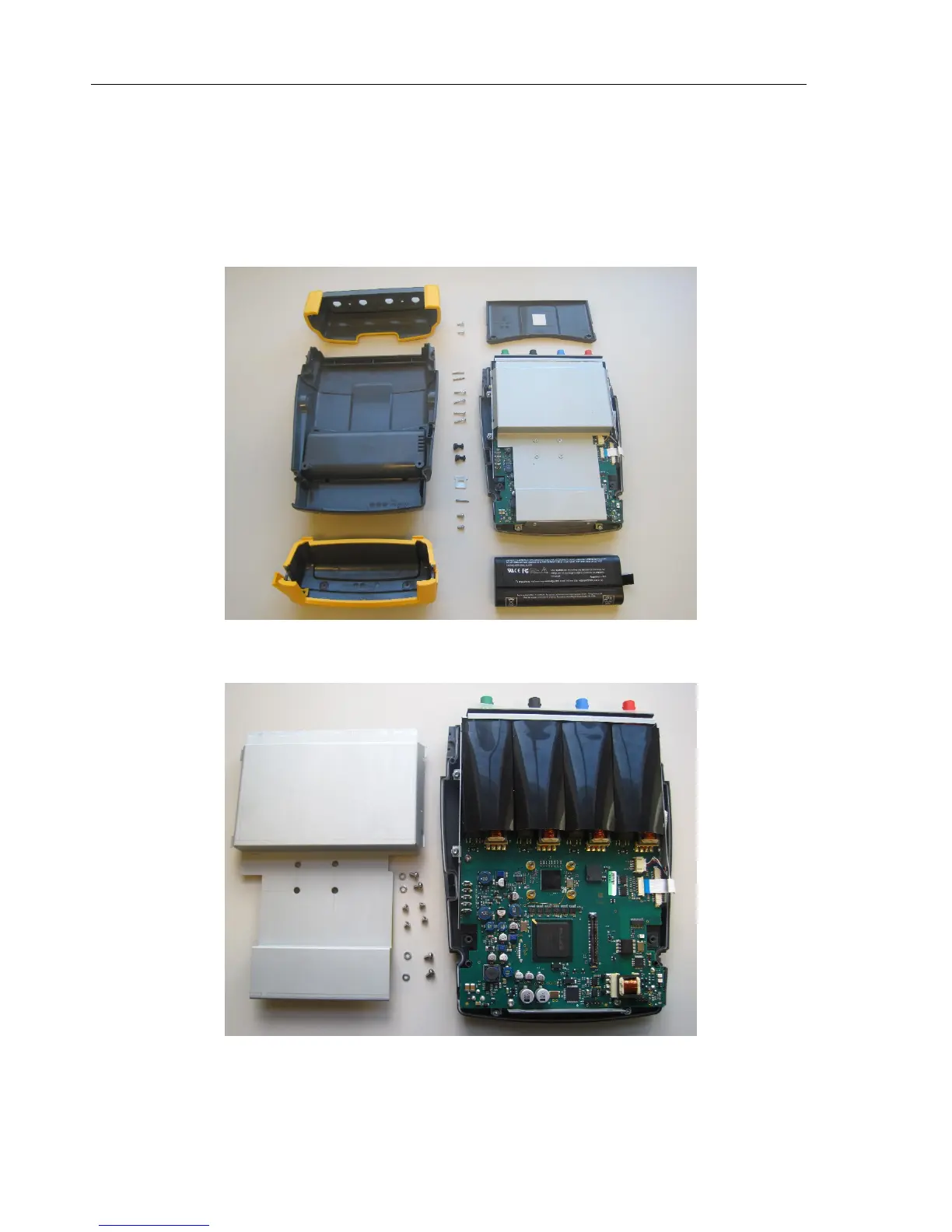

Opened Case + Screws.
Screening Plate Removed + Screws.
