Fluke TiX500 - Page 12

TiX500, TiX520, TiX560, TiX580
Users Manual
8

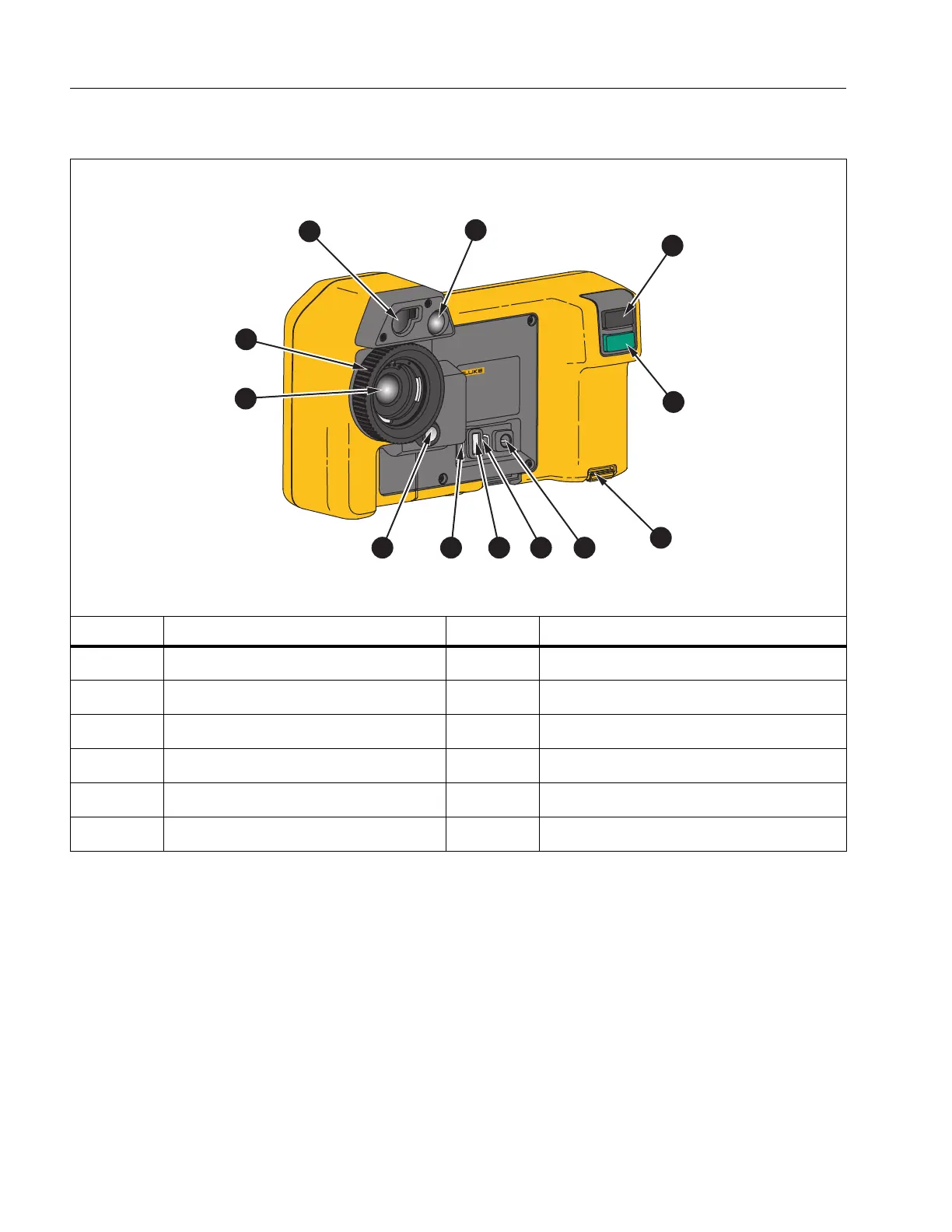

Table 4 shows the front of the Product.
Table 4. Front
TiX520
THERMAL IMAGER
1
12 9
10
2
3
4
6
5
8
7
11
Item Description Item Description
Infrared Camera Lens Hand Strap Anchor
Manual Focus Control AC Adapter/Charger Input Terminal
Laser Pointer/Distance Finder USB Cable Connection
Visual Light Camera Lens USB Storage Device Connection
Laser Distance Finder Button HDMI Connection
Image Capture Button LED Torch/Flashlight












