16
When pressed, EV/Lighting wheel can set the light intensity.
EV/Lighting wheel
Button: Save Point of Interest (POI)
Wheel:
- Default:
- Set the EV if camera in automatic mode
- Set the Exposure time if the camera is in manual low ISO mode or in manual high ISO
mode.
- While FN button pressed: Set the onboard lighting intensity
USB port
Connection to the provided tablet
HDMI port
Offers the possibility to connect an external screen to the GCS
Power port
Connect to the controller charger to charge the internal battery of the controller.

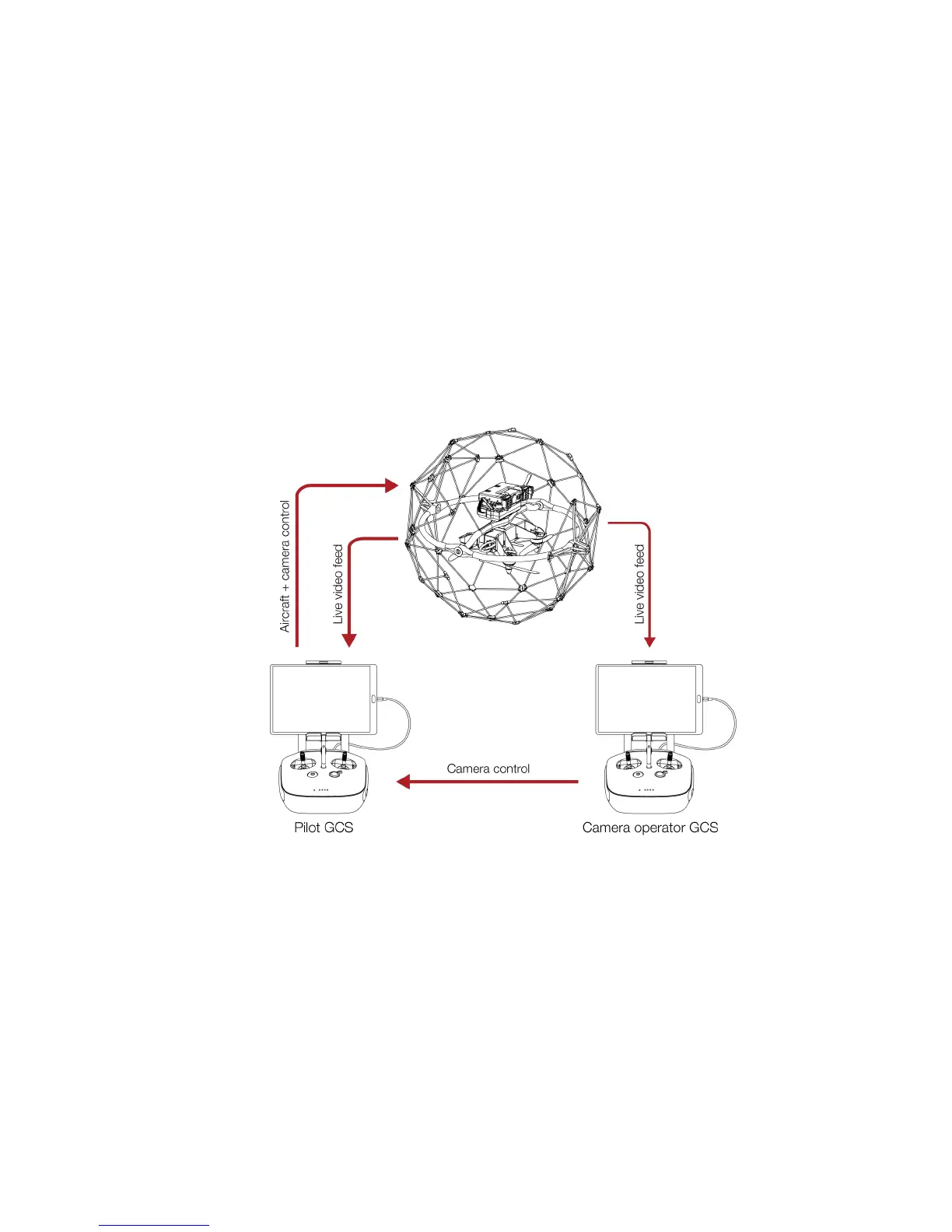

Figure 3.8: Camera operator overview
The tablet, USB cable and charging are describe in section 3.2 Ground Control System.
3.4 Amplified deported antenna system (option)
In remote environment, the need of deporting the antenna can offer a more reliable communication link
between the GCS and Elios. It can be used to inspect confined space without enter by placing only the
Amplified Deported Antenna System (ADAS) inside. This option can be provided by Flyability.
