4.10 Setting up the amplified deported antenna system (option)
It is very important that the ADAS controller is powered after the whole relay antenna is set up.
Not follow these steps may result in serious damage on the ADAS controller.
4.10.1 Without deported antenna
1. Connect the external antennas to the ADAS controller external antenna connector.
2. Only then, turn on the ADAS controller

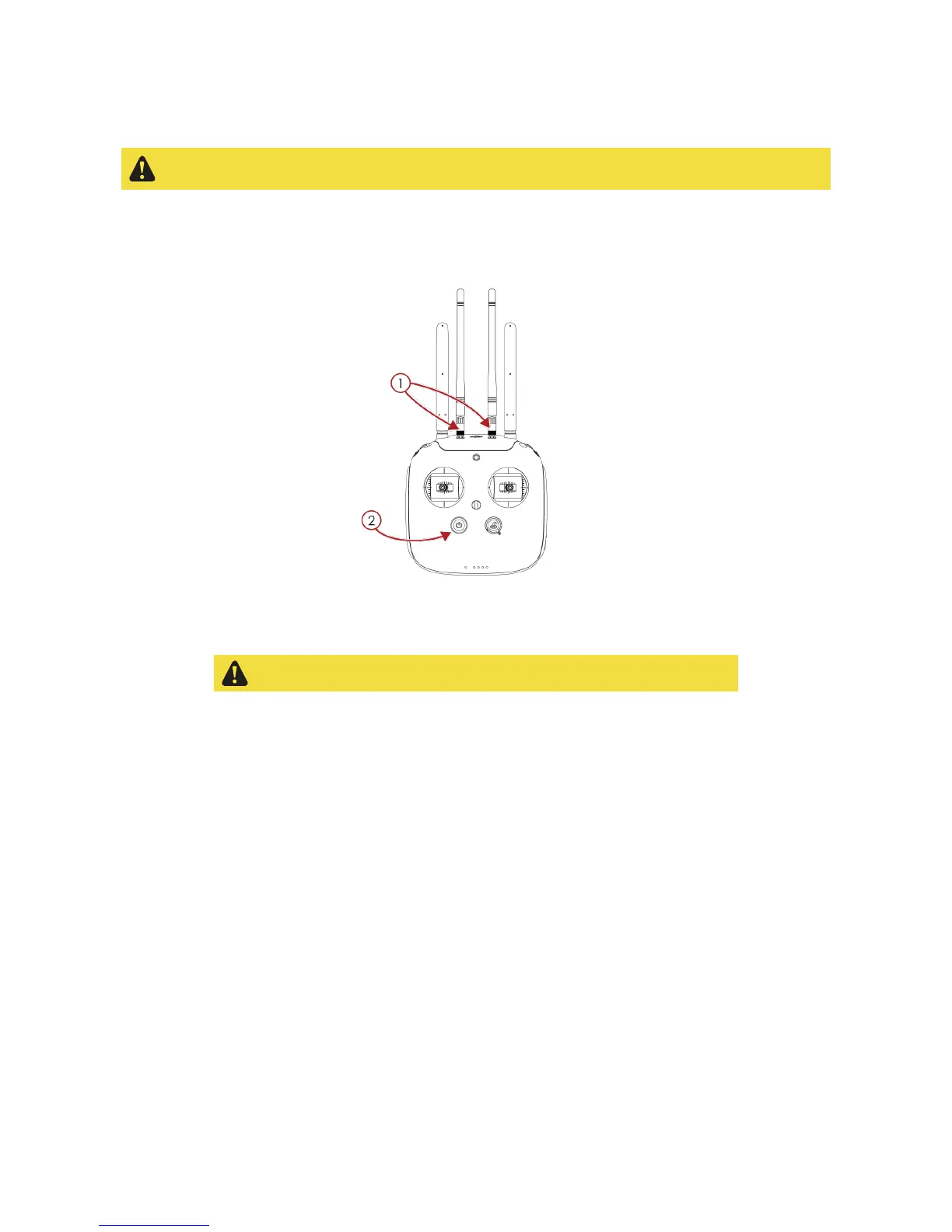

Figure 4.18: ADAS controller set up
4.10.2 With deported antenna
The extension cables must be fully deployed whilst using the ADAS.
1. Plug the external antennas to the “Antenna” side of the signal boosters
2. Once the external cables are fully deployed, connect its red marked end of to the “Signal” side of
the signal boosters.
3. Connect the other side of the extension cables to the ADAS controller external antenna plug.
4. Place and secure a battery on the signal booster battery holder. Then, power the signal boosters.
5. Only then, turn on the ADAS controller.
