4. Select the Pilot GCS from the Master RC List and input the connection password. 1234 by default.
6.7 Trimming Elios
If Elios is drifting a lot in a particular direction in the horizontal plan, it is possible to trim the control of the
aircraft. Make sure that the drift direction is consistence regardless of the aircraft orientation in the room.
1. Turn on the controller, launch the DJI GO app on the tablet and go to the controller settings.
2. Camera View > > RC Control Settings > RC calibration. Tap on “Start”

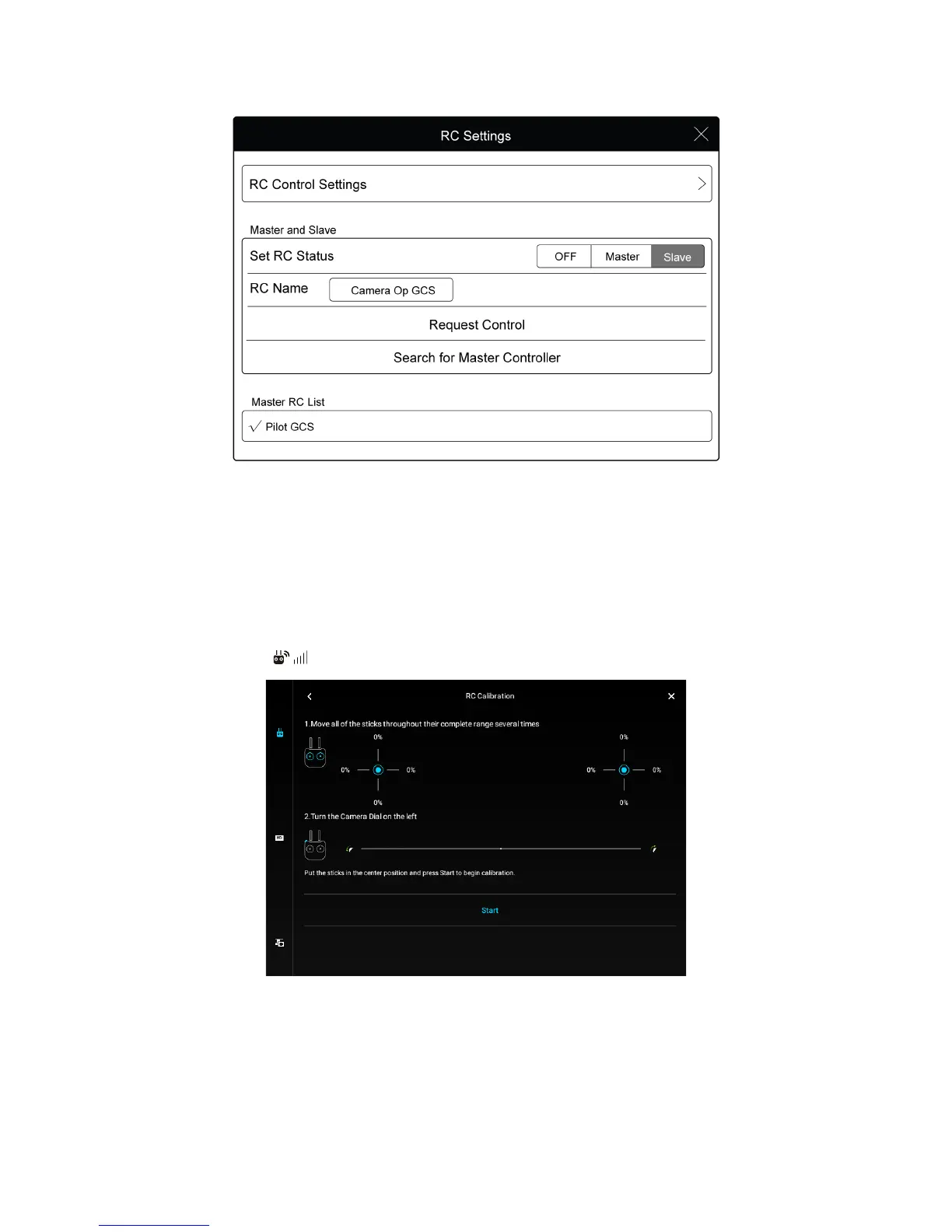

Figure 6.9: RC calibration
3. When ask to put the sticks in their center position, give a slight offset on the stick towards the
drift direction. Then hit “OK”
