4.2.3 Mount and Plug the Battery
1. Slight the Battery into the Battery Holder.
2. Secure the latter using the strap.
3. To plug the battery, simply slide the battery connector all the way into the Elios’ Power connector.

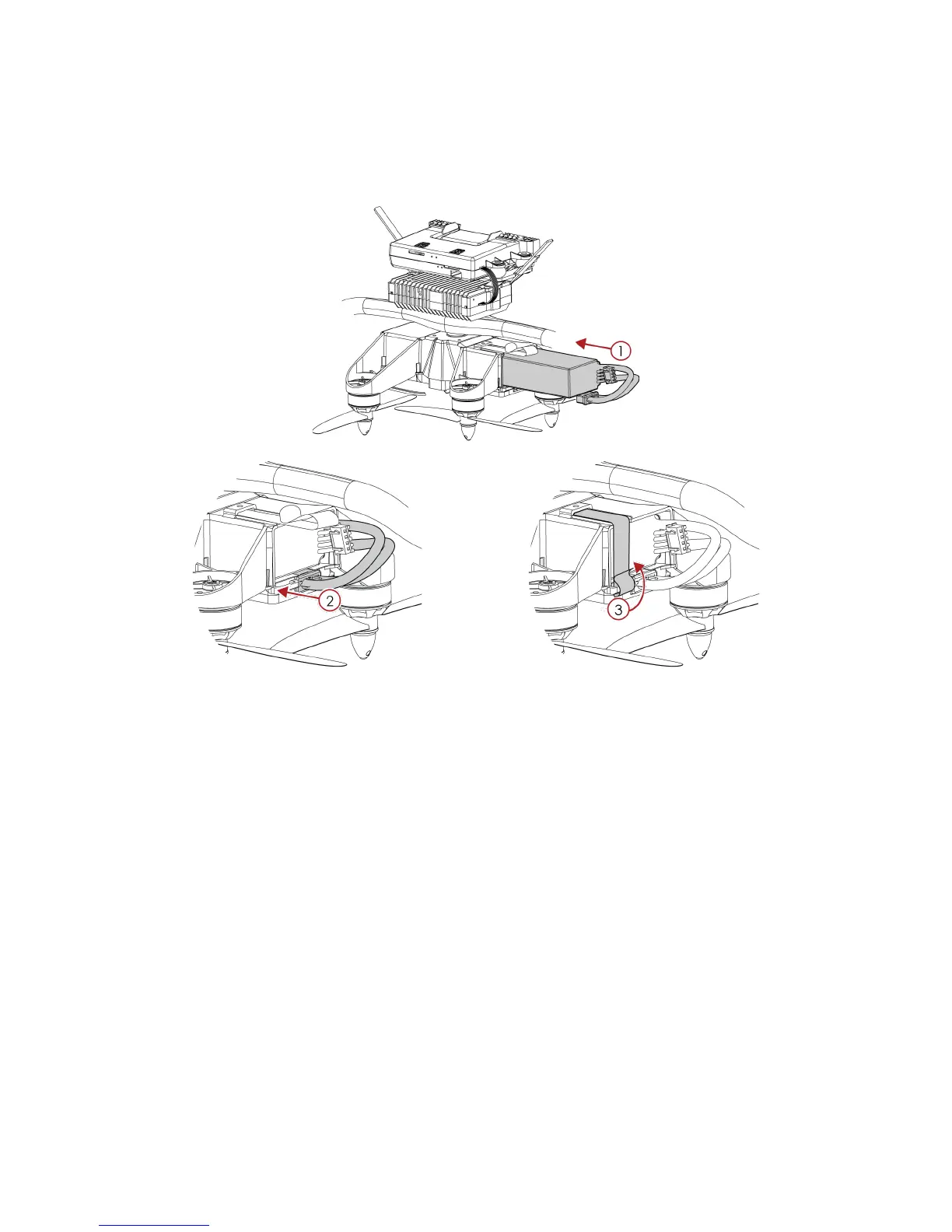

Figure 4.4: Battery insertion and connection
Once the battery is connected, Elios is on and ready to be armed.
