29

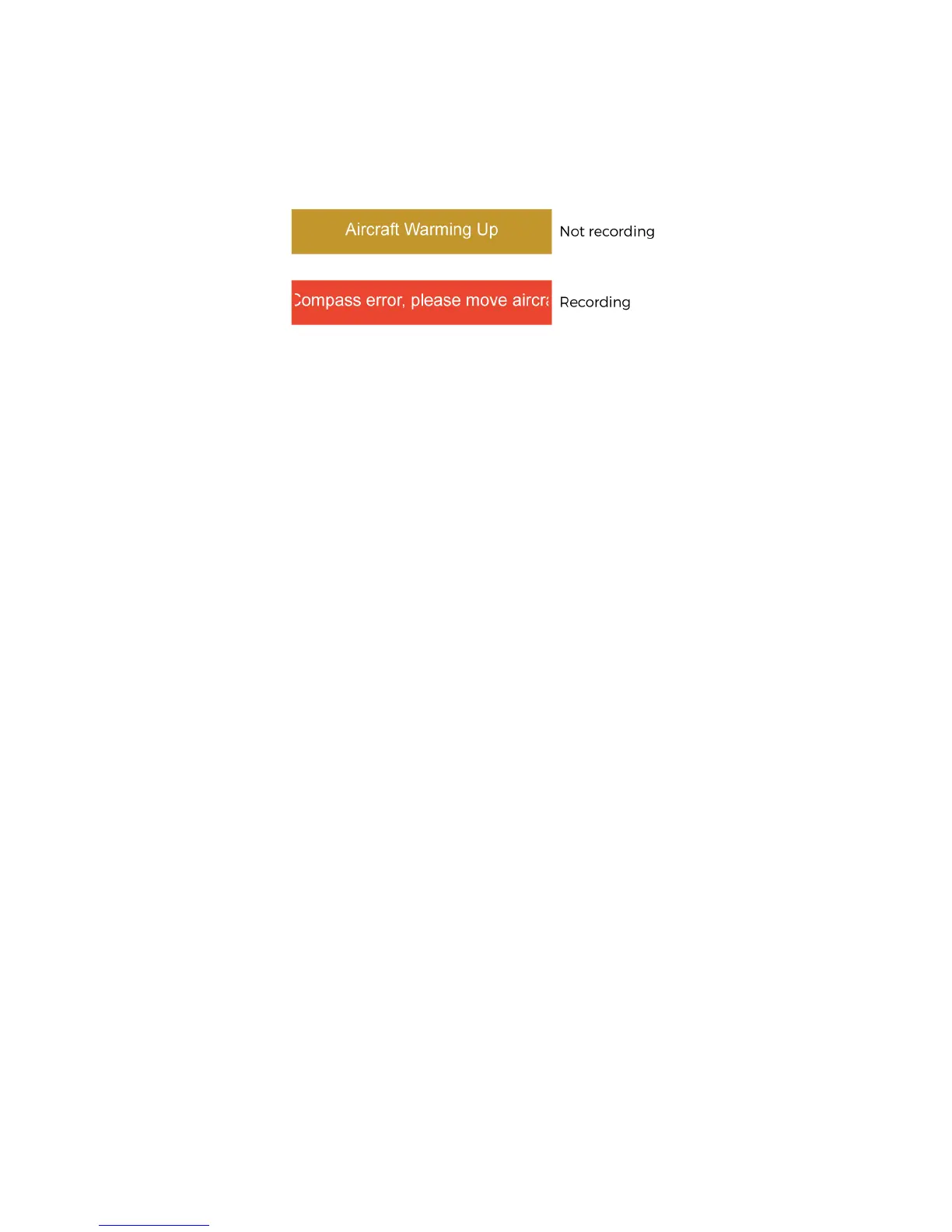

Recording status
We use standard error message from DJI GO to display the camera status. They are translated as
follow:
- “Aircraft warning up”: Camera not recording
- “Compass error”: Camera is currently recording.
Figure 4.15: Recording status telemetry
Battery voltage
Display current voltage of the battery connected to the robot in [V]
Link quality
Show the current link quality between the GCS and the aircraft.
- On the left, quality of the uplink control communication signal.
- On the right, quality of the downlink video and telemetry communication signal.
The other displayed information are not relevant to the use of Elios. Please do not pay attention to them.
