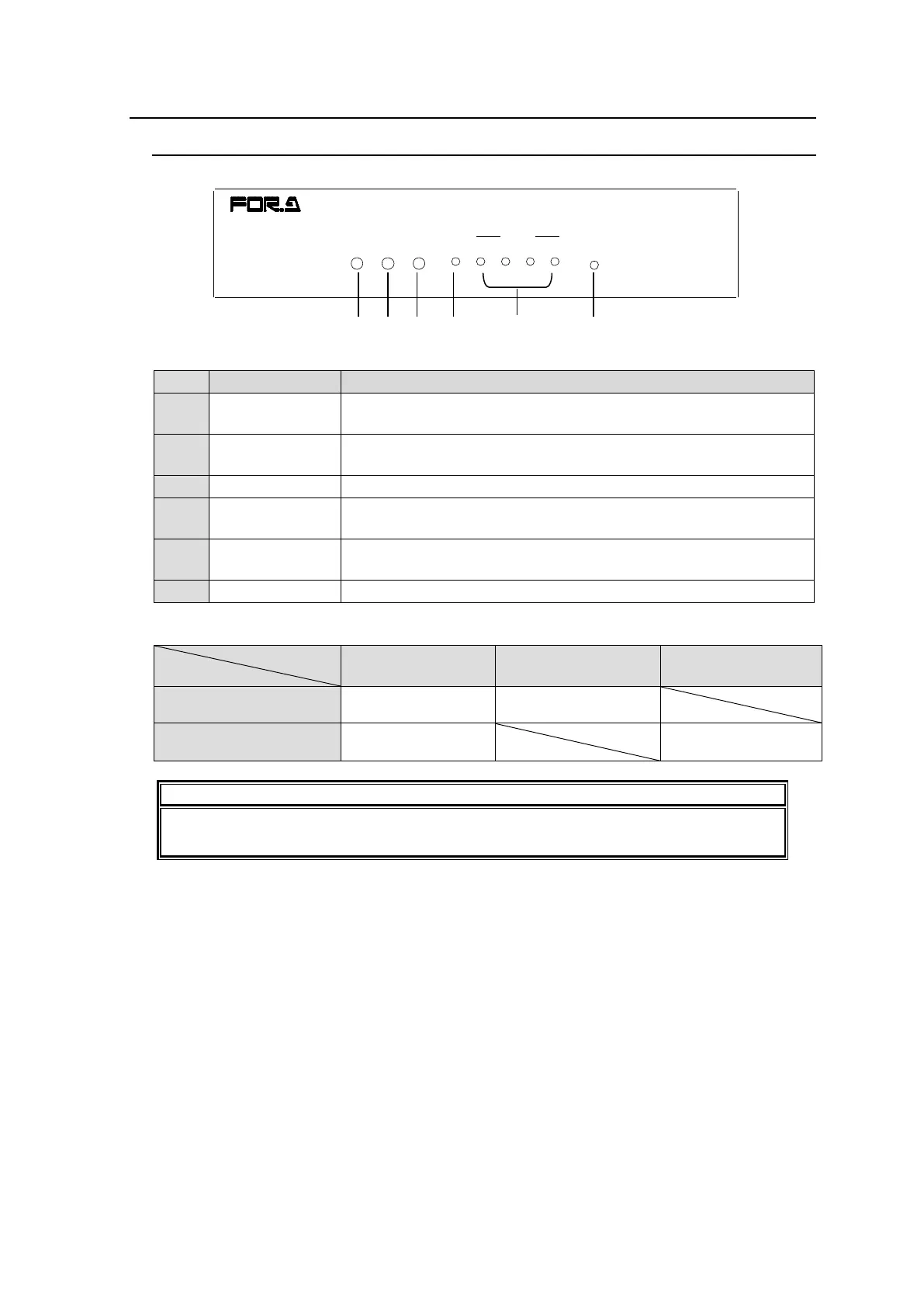

2-3. MFR-TALM
2-3-1. Front Panel
No.
Item
Description
A
POWER
Displays the power status.
See the table below for details on indications.
B
BUSY
Displays the writing status of the flash memory for backup settings.
See the table below for details on indications.
C
REF IN
Lights green when an external reference signal is present.
D
GPI
Lights green a GPI function is assigned.
Turns off when no GPI function is assigned.
E
RS-422 1 - 4
Lights green when a port function is assigned.
Turns off when no port function is assigned.
F
RESET
Resets MFR-TALM.
Color indications on the MFR-TALR front panel
LED color
LED
Green
Red
Orange
POWER
Normal
Power alarm
BUSY
Normal processing
Writing to flash
memory
NOTE
After finishing settings, do not power OFF the unit while BUSY LED is lit orange,
since the system is writing to Flash. (It takes about two minutes at max.)
POWER BUSY REF IN GPI RS-422 RESET
21 43
TALLY MAN AGER UN IT
MFR-TALM
A
B
E
F
C
D
