FOR-A MFR Series - Dip Switch Settings

17

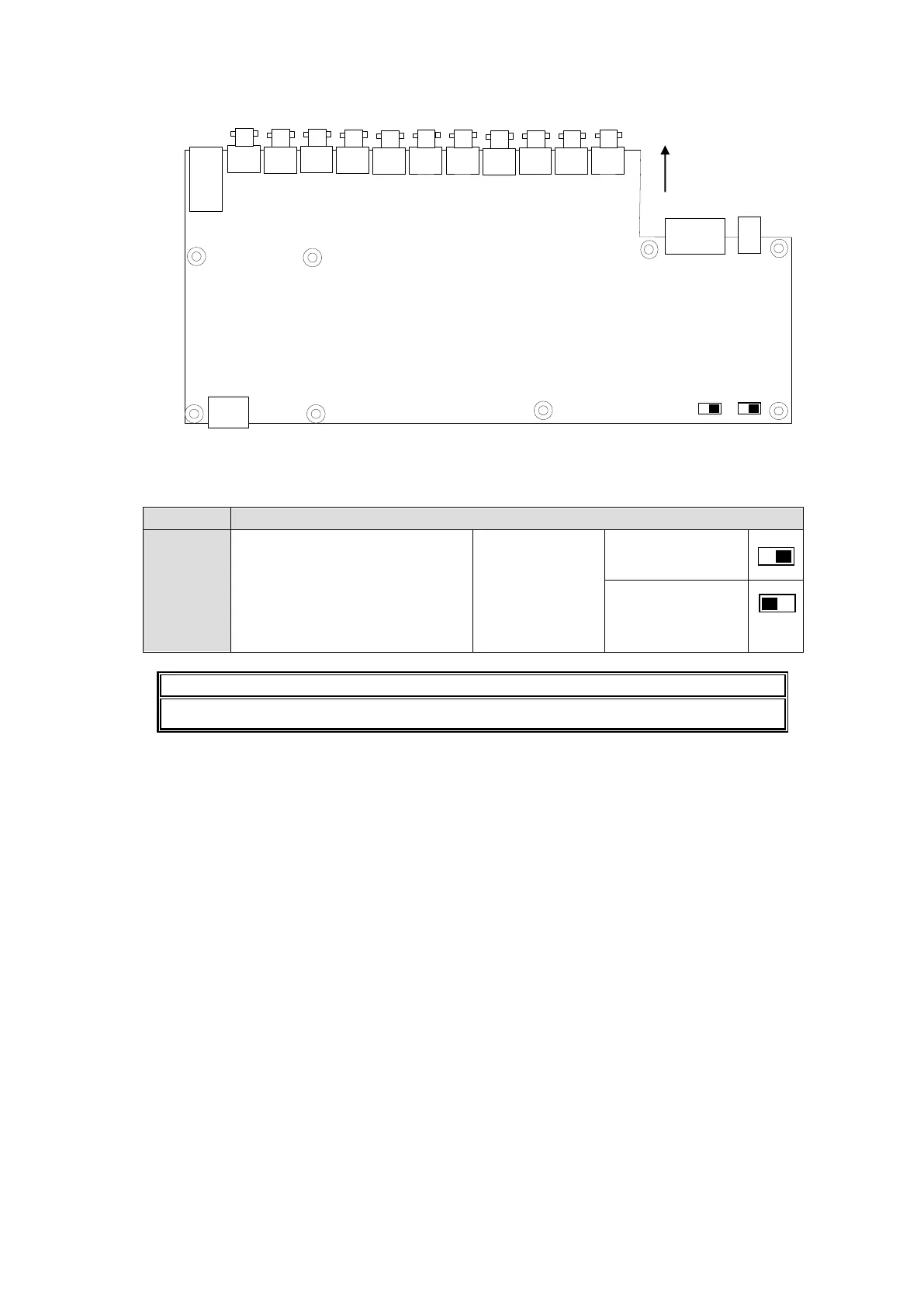

Default DIP switch settings are as shown below.
 DIP switch settings
Switch
Description
S1, S2
Used to select RS-232C/RS-422.
To change the selection, refer to
the setting position figures on the
right.
Be sure to change both switch
positions so that they match the
selected settings.
Switch settings
RS-232C
(Factory default)
RS-422
IMPORTANT
S3 and S4 are for maintenance only. Do not change their settings.
Rear
side
S1
S2
