34

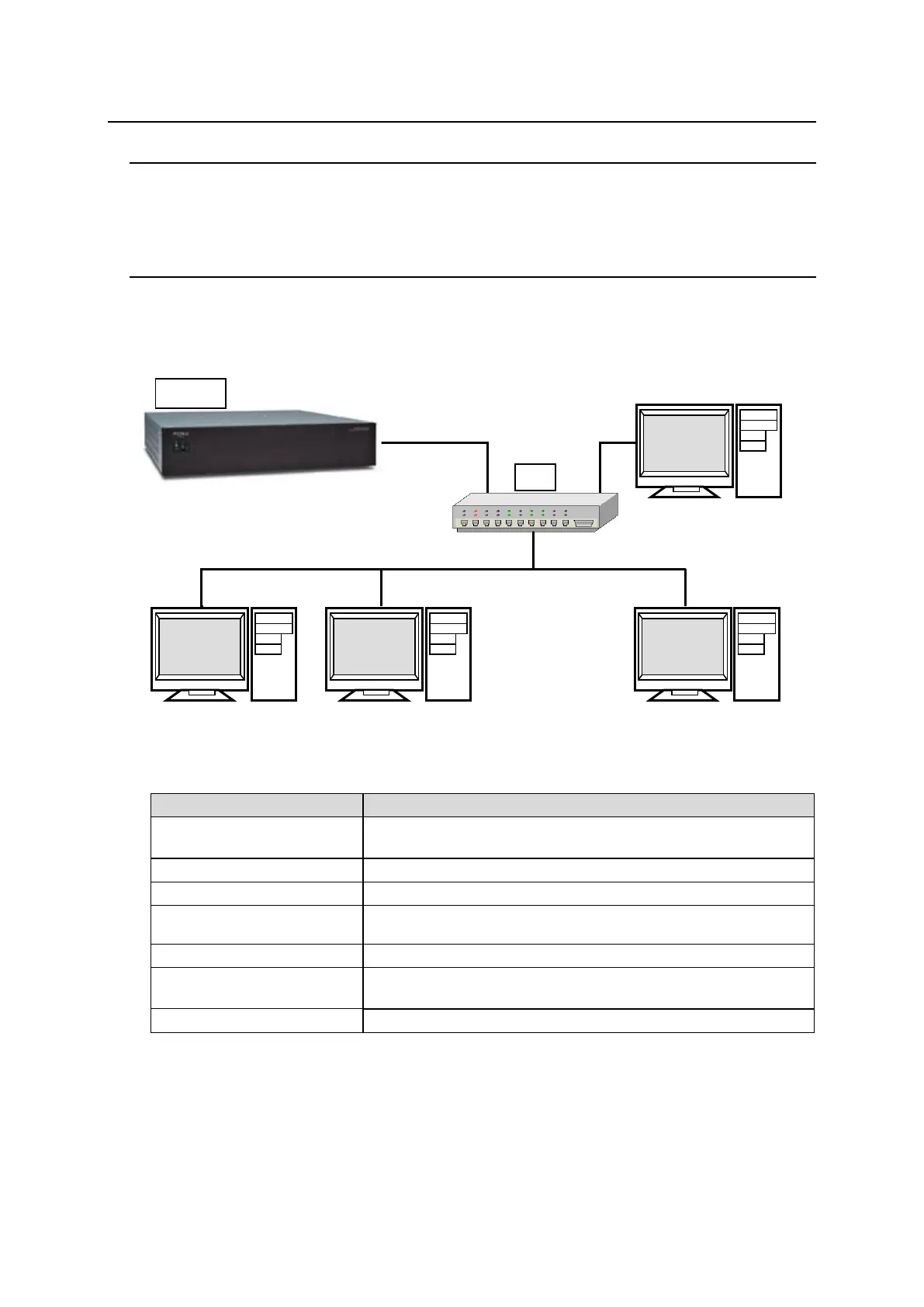

4. Serial / LAN Command Control
4-1. Serial Interface
Crosspoint switchover and tally output can be controlled via the SERIAL ports on the MFR
Series main unit or MFR GPI.
4-2. LAN Interface
The MFR Series main unit is able to connect to a third-party automatic control system via the
RJ-45 port (PC-LAN port). The TCP/IP communication protocol is supported. The control PC will
be the Client, and the MFR Series main unit will be the Server.
Basic specifications
Item
Description
IP address (PC-LAN port)
192.168.1.12
(Subnet Mask: 255.255.255.0)
Port number
Setting range: 49152 to 65534 (Default: 23)
Number of PCs
Max. 16
Response / Resending
Wait before sending next command (Resend if the Echo is not
returned.)
Login password
None
Communication protocol
TCP/IP, Control PC: Client, MFR-3232: Server
Crosspoint Remote Control using ASCII code.
Command protocol
Crosspoint Remote Control protocol
Hub
Client
No.1
Client
No.2
Client
No.**
Web-base
d Control
Server
MFR Series main unit
PC-LAN port
