28
Note that in all main units the IP address of MFR-LAN1 is set to 192.168.1.10 and that
of PC-LAN to 192.168.1.12 as factory default. To prevent IP address overlap in a
system, you need to change IP addresses of either unit.
Also note that desired IP addresses can be set for system devices according to your
network conditions.
Setup Procedure
1) Connect all devices in the MFR system as shown in the figure in the previous page.
2) Power on the MFR-1616, Remote Control unit and computer. (Do not power on the
MFR-1616A.) Set the IP address for the Remote Control Unit (①) and computer (④).
Power off the MFR-1616.
3) Power on the MFR-1616A. Set the MFR-1616A IP addresses (⑤ and ⑥) as shown in
the previous page. Set the Switching Point to Sync in the same menu page.
4) Power on the MFR-1616.
5) Connect to the MFR-1616 Web-based control and open the Build Setting page.
Check on Build Enable to enable the Main Unit Link feature.
See section 12 "Main Unit Link" in the "Web-based Control Operation Manual."

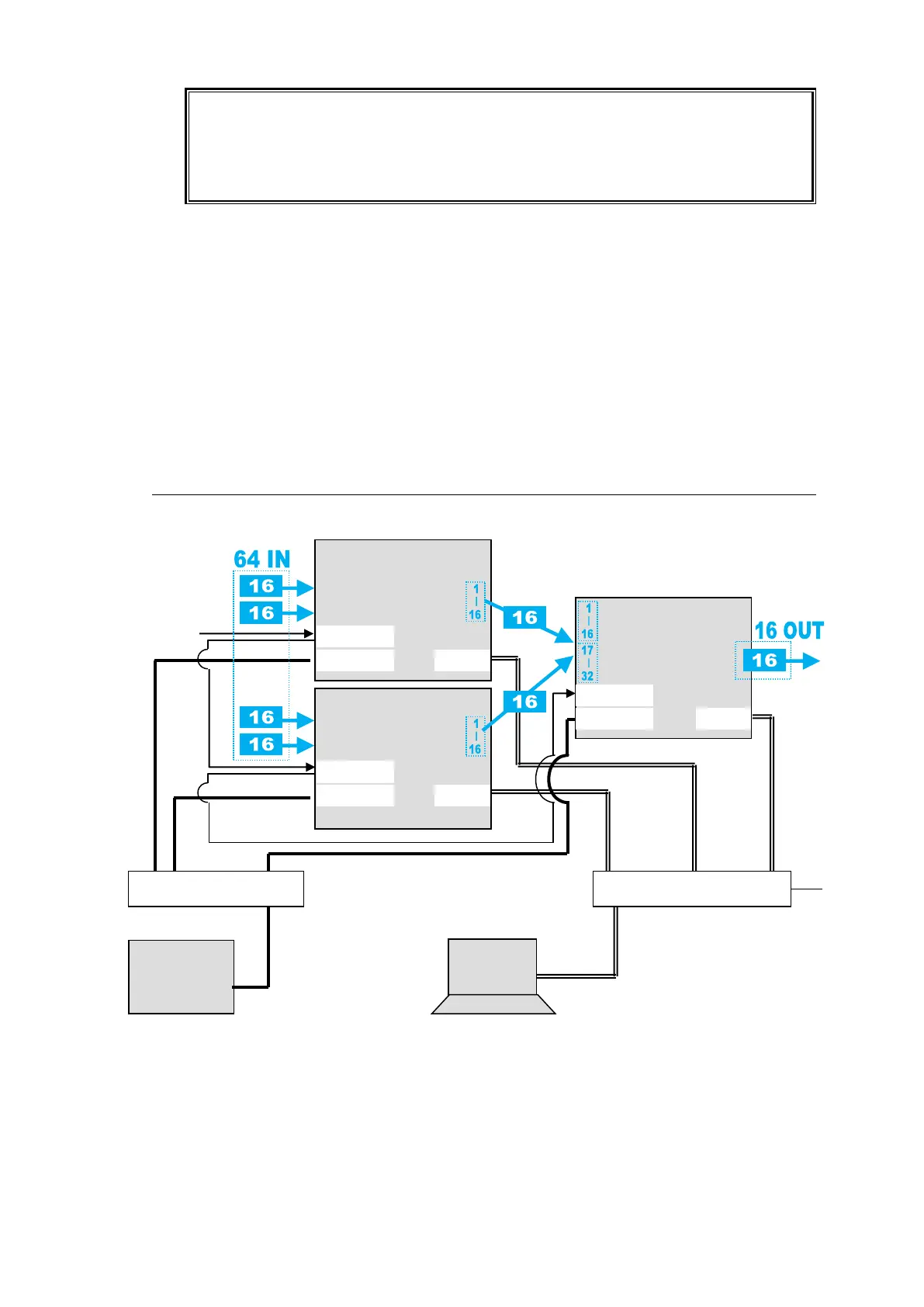

3-2-2. Expanded Matrix System Example
The system example below connects three MFR-3232 units to form a 64 x 16 virtual matrix.
Setup Procedure
1) Connect three MFR-3232 units, one by one, to the MFR system, referring to the
previous chapter for details on to setting network settings. Do not use the same IP
address twice in the system.
2) Connect all three MFR-3232 units to the MFR system. Connect BNC cables based on
SDI signal routing paths.
3) Connect to the Web-based Control of an MFR-3232 and open the Build Setting page.
Check on Build Enable to enable the Main Unit Link feature.
See section 12 "Main Unit Link" in the "Web-based Control Operation Manual."
To Next Page
