Phase connections / Motor rotation
For all 3 Phase electrical connections the pump rotation direction is important. After switching the machine
on press the Vacuum button on the operation screen and check that vacuum is present at the hole in the
centre of the table. If there is no vacuum or if pressure is present then reverse 2 of the phase connections.
THIS MACHINE MUST BE PROPERLY EARTHED IN ACCORDANCE WITH LOCAL REGULATIONS.
Pneumatic connection
The connection to the machine should be via a lockable shut off valve.
Ensure that the pneumatic air supply is regulated to 5 BAR or less and is properly filtered. A competent
person must make compressed air connections.
If flexible hoses are used it is strongly advised that they are of Nylon, canvas or wire reinforced rubber and
suitably rated for pressure and temperature. Connection hose size is 12mm diameter. Threaded fittings are
BSP. The machine is supplied with 12mm Nylon Hose and an addition 12mm to ½” BSPT connector.
Maximum airline pressure must not exceed 5 BAR or 80 PSI.

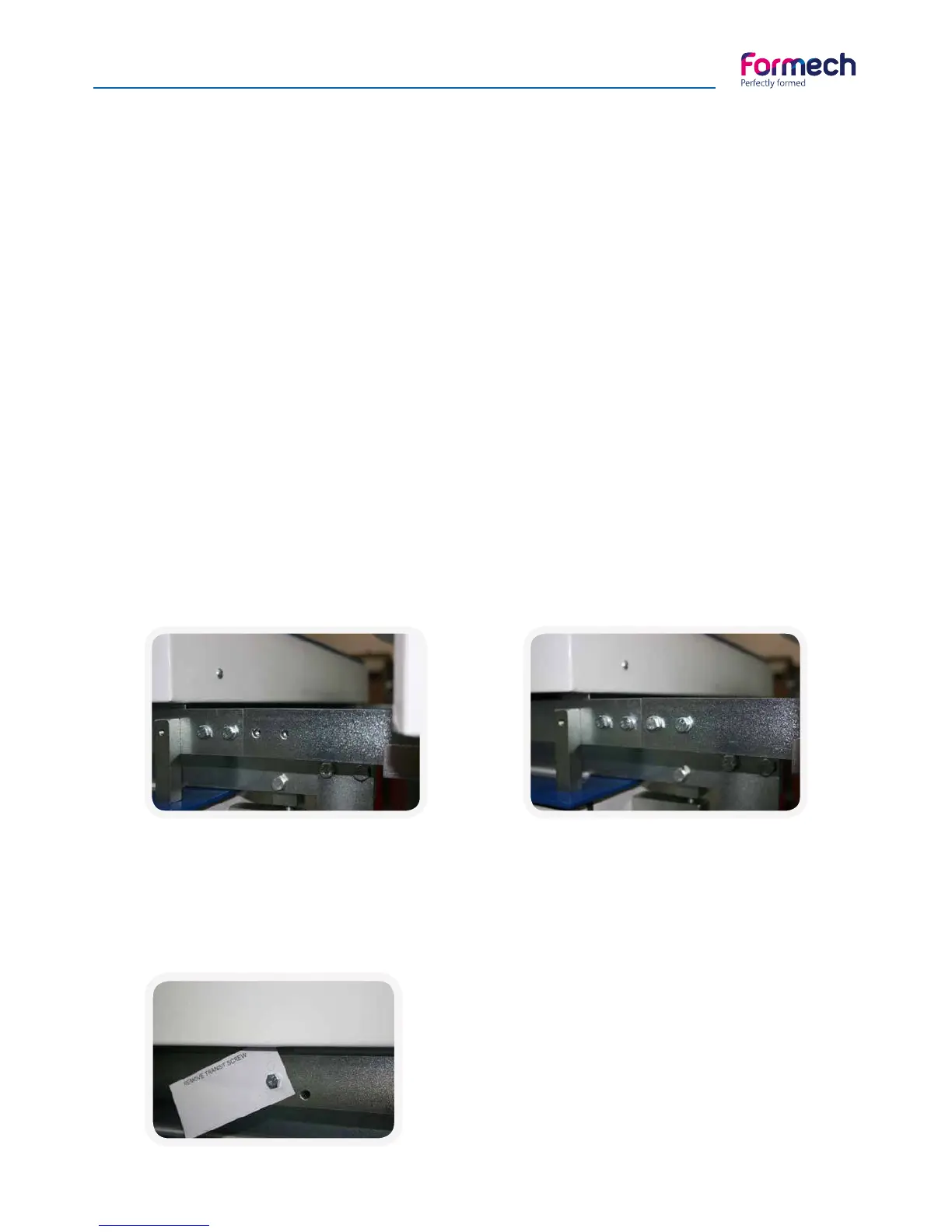

Fitting of the heater guard
The Heater Guard is attached to the rear rails. Remove the 2 screws from each side of the heater rail
connecting links.
ENSURE THAT LOCAL LIFTING AND HANDLING PROCEDURES ARE APPLIED AND MONITORED BY
A PERSON RESPONSIBLE FOR HEALTH AND SAFETY.
Installation
Slide the heater guard onto the links
(2 people are required to perform this lift)
Refit and tighten the screws through the
rear heater rail and into the links.
