Formech 686 - Optional - Fitting the Reducing Windows

Manual - Formech 686PT - Rev 8.8
17
Installation

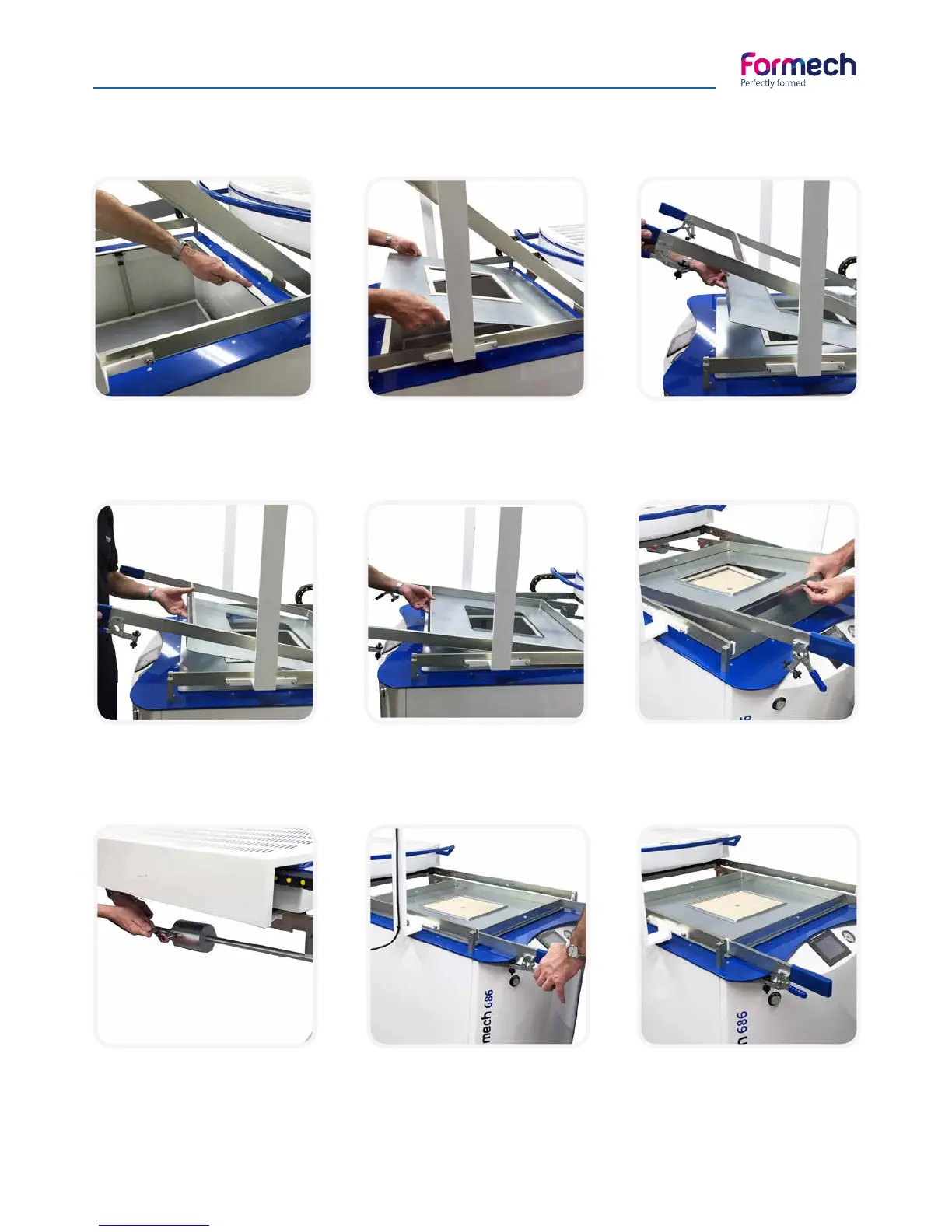

Optional - Fitting the reducing windows
Hold the upper reducing window while bringing down the clamp frame (4&5). Fit the bolt and the nut on the
front and back to secure the window to the clamp frame (6). Dot not tighten with a spanner.
Adjust the counterbalance
weight with a 13mm spanner
sliding it to the rear of the ma-
chine (7).
Adjust the toggle clamps to
accomodate the extra thickness
of the reducing window (8).
12mm Baseboard in position
for tool mounting (9).
Lift the clamp frame and place the lower reducing window over the two cap head screws at the rear (1&2).
Place the upper reducing window in the clamp frame at the rear (3).
1 2 3
4 5 6
7
8 9
