35
Tools

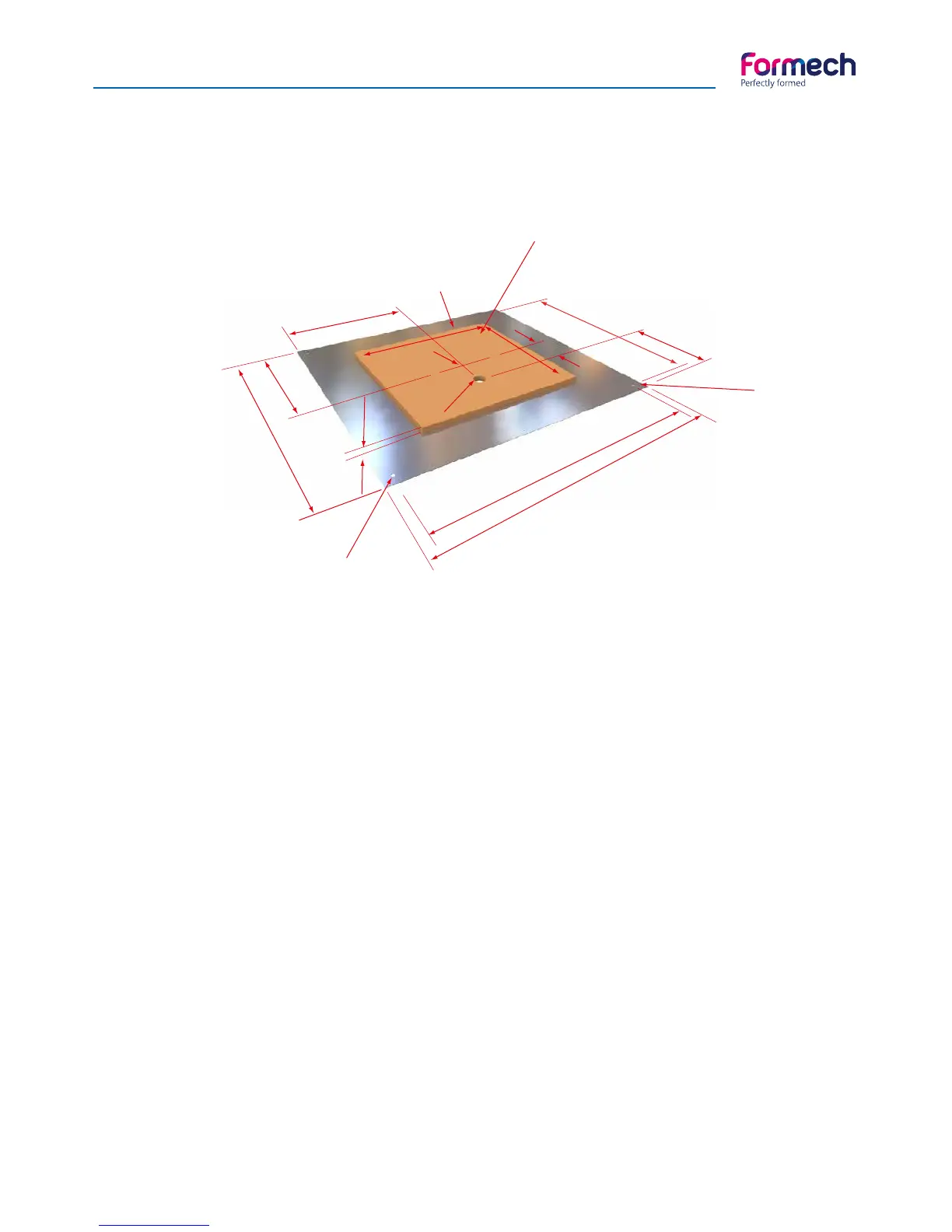

686 reducing window baseboard
641mm (25.23”)
615mm (24.21”)
Make board 4mm ( 0.15”) smaller
than reducing window aperture front
to back and left to right
213.5mm (8.40”)
12mm (1/2”)
320.5mm (12.61”)
Use four M6 cap head set screws
or M6 CSK machine screws x 19mm (3/4”)
long to bolt the board to the table (platen)
596mm (23.46”)
570mm (22.44”)
7mm (.275”) Diameter holes
R15mm (0.59”)
686 reducing window base board
Centre of board
position
92.5mm (3.64”)
307.5mm (12.10”)
R2mm (0.078”)radius on
top edge all round to stop
MDF from flaking
1mm (0.039”) mild steel
Attach MDF baseboard to steel plate
with screws or high strength double sided
tape
