42

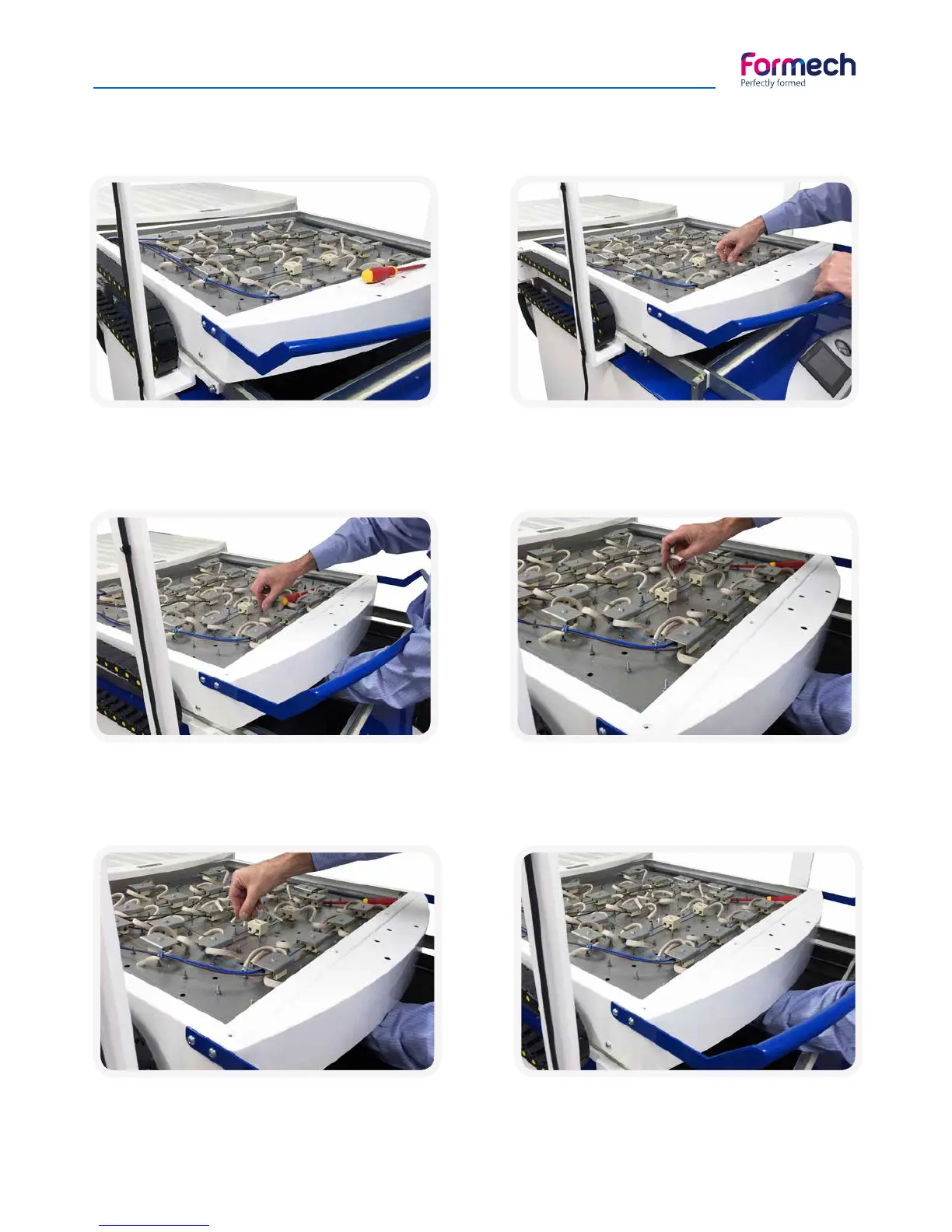

Replacing a heating element (continuation)
Each element has two wires, which are connec-
ted to two separate connector blocks. Loosen the
connector block screws.
Remove the four nuts and washers (with a 7mm
spanner) that secure the element to the tray.
Position your hand underneath to catch the ele-
ment as it is released.
Remove the loose insulation sleeves.
Feed the element wires through the holes
in the tray.
Catch the element.
Fault Diagnostics / Maintenance
