Fostex MR-8 - Top Panel Controls - Left Section; Input Connectors

10
MR-8 Owner’s Manual
ENTER
MENU
CURSOR
UNDO
/REDO
CONTRAST
0 RETURN
TIME BASE
SELECT
STORE
B / OUT
A / INPLAY MODE
AUTO PUNCH
RESET
RECORD STOP PLAY
REWIND F FWD
MASTERING
BRIGHTNATURAL
POWERFUL
BOUNCE
1-6 > 7/8
1-4 > 5/6
HALL
DELAY
REC
SELECT
PA N
EFFECT
SEND
INPUT A
L
R
L
R
L
R
L
R
0
10
0
10
0
10
0
10
BRIT STACK US METAL
60's COMBO
DYNAMIC
CONDENSER
TUBE
REVERB / DELAY TIME
MIN
MAX
ROOM
PLATE
MIC SIMULATION
AMP SIMULATION
MIC
BAL
UNBAL
/GUITAR
BAL
UNBAL
MIN
MAX
2
1
R
L
PHONES
STEREO OUT
INPUT A
INPUT B
EFFECT
DISTORTIONTRIM
TRIM
PEAK
LINE MIC
PEAK
LINE MIC
MIN MAX
MASTER
7 / 8
5 / 6432
1
MAX
MIN
MAX
MIN
LOCATE REC END
LOCATE ABS ZERO
DIGITAL MULTITRACKER
-1 +1
LOCATE
7/8 >
+ - _ 0
A B C 1
D E F 2
G H I 3
J K L 4
Y Z 9
V W X 8
S T U 7
P Q R 6
M N O 5
NO
YES
GUITAR
PHONES VOL
INPUT A SELECT
COUNTER
STEREO
WAV FILE
DELETE
A - B PLAY
1
3
8
9
10
13
14
15
16
2
12
11
4
567

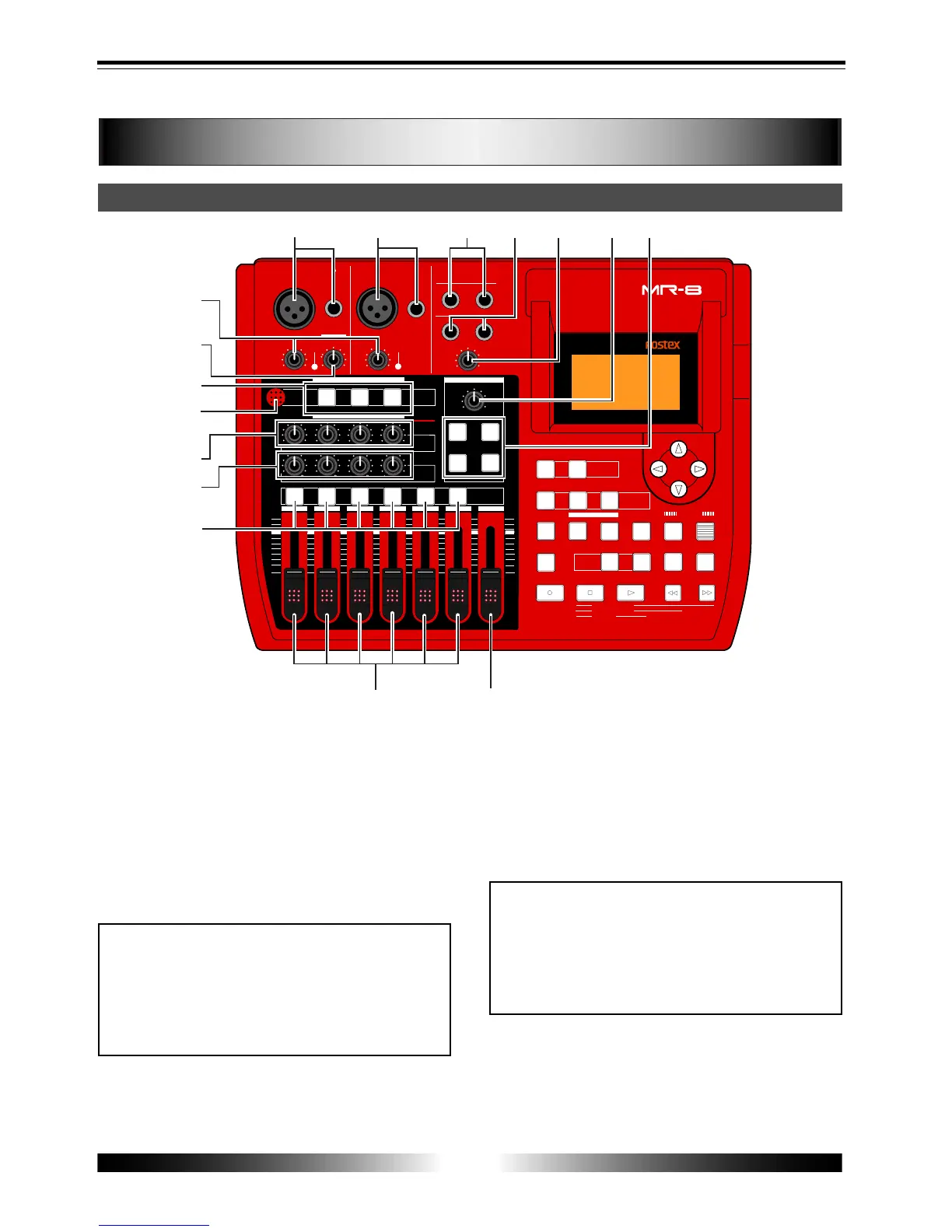

Top panel (left part)
Names and Functions
1. [INPUT A] connectors
Both the [BAL] XLR and [UNBAL/GUITAR] phone
connectors are provided. You can connect a gui-
tar, microphone, keyboard, etc. According to the
source connected, select the [INPUT A SELECT]
switch appropriately.
To record a mono source, use only the [INPUT A]
section. To record a stereo source, use both the
[INPUT A] and [INPUT B] sections (see page 29).
<NOTE>
On each input section, the [UNBAL/GUITAR]
phone connector takes priority to the [BAL]
XLR connector. You cannot use both the
[UNBAL/GUITAR] and [BAL] connectors on the
same section simultaneously.
2. [INPUT B] connectors
Both the [BAL] XLR and [UNBAL] phone connec-
tors are provided. You can connect a micro-
phone, keyboard, etc.
This section is used only when recording a ste-
reo source. When recording a mono source, this
section is not used (see page 29).
<NOTE>
On each input section, the [UNBAL] phone
connector takes priority to the [BAL] XLR con-
nector. You cannot use both the [UNBAL] and
[BAL] connectors on the same section simul-
taneously.
3. [STEREO OUT] jacks (L, R)
These jacks output the stereo (L and R) buss sig-
nals. Connect these jacks to a monitor equipment
or master recorder (see page 26).
