8 Spanning Tree
8.1 Spanning Tree Protocol without VLAN configuration

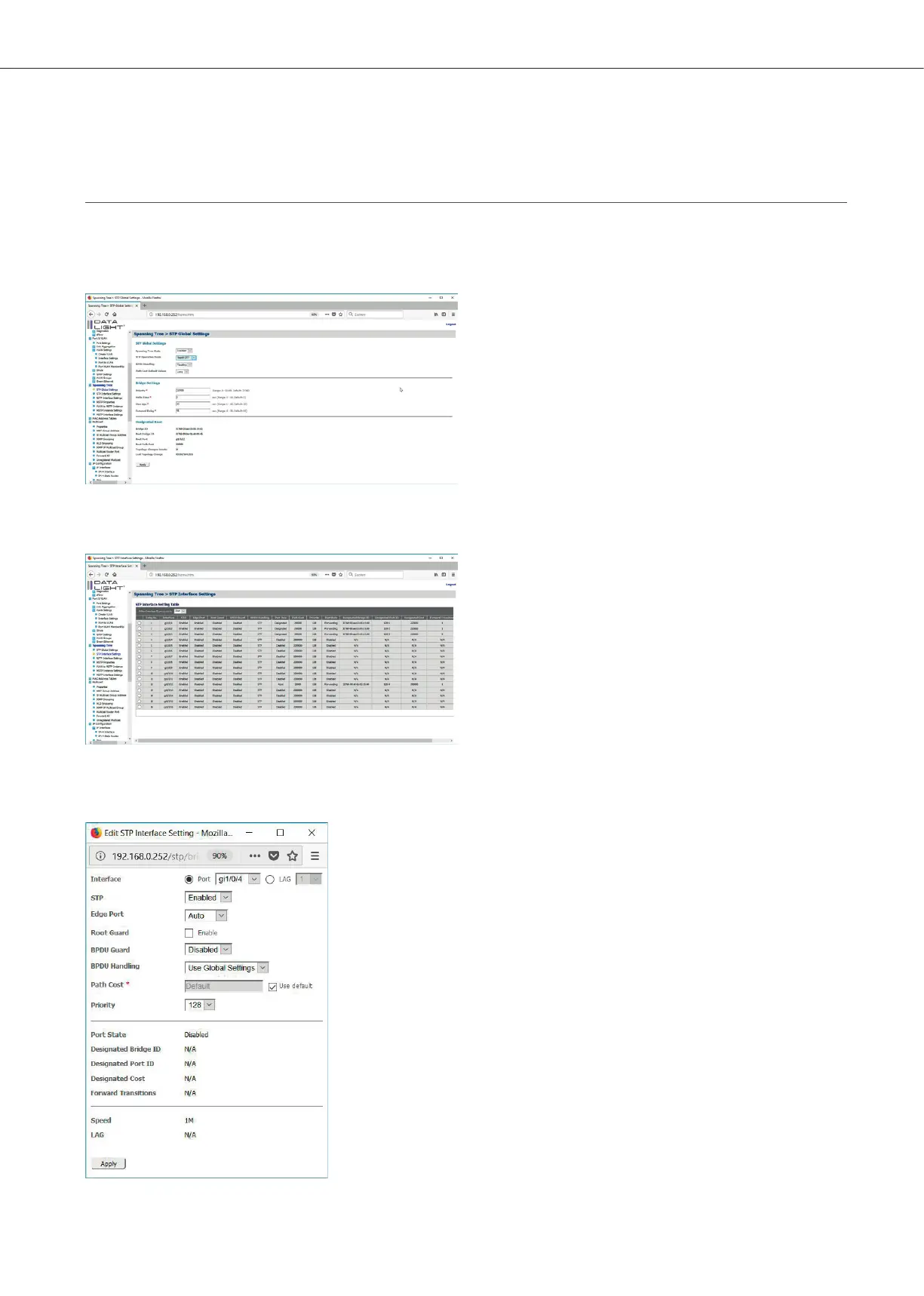

In the menu Spanning Tree > STP Global Settings the configuration for the Spanning Tree can be seen
and some global configuration can be made for the switch.
Figure 57: Spanning Tree global settings page
In the menu Spanning Tree > STP Interface Settings specific configuration for the interfaces can be done.
Figure 58: Spanning Tree Interface settings page
Check the interface, which should be configured and click on “Edit”.
Figure 59: Spanning Tree Interface settings Popup
