8 Spanning Tree
Here the dierent parameters for the Spanning Tree construction can be configured for the port. Configured values can be seen
in the STP Interface Setting table.

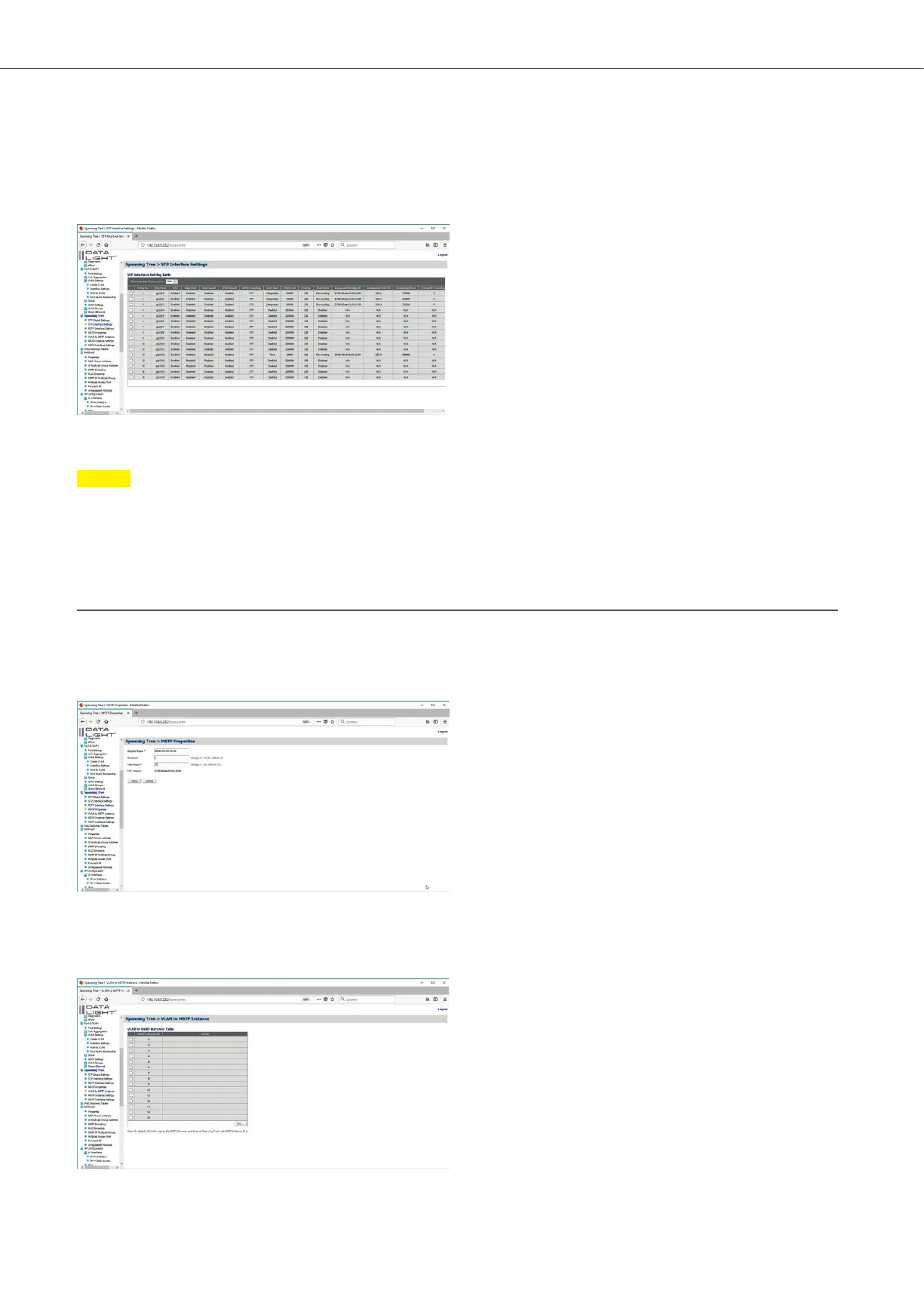

Figure 60: Spanning Tree Interface Settings page with test configuration on Interface 4
Note
If all Spanning Tree configurations were done, don’t forget to save all done configuration permanent on the switch.
The save process is described in the section file management.
8.2 Multiple Spanning Tree Protocol with VLAN Configuration
For the use with dierent VLANs the spanning tree may should have dierent behavior for dierent VLAN.
Such behavior can be configured with the MSTP. This can be found in the menu Spanning Tree > MSTP Properties.
Figure 61: MSTP Properties page
The key feature of MSTP is, that for dierent VLAN dierent STP Instances can be configured.
Therefore, in the menu Spanning Tree > VLAN to MSTP Instance these relations can be configured.
Figure 62: VLAN to MSTP Instance page
