9 Port Mirroring
9.2 SPAN Session Sources Interface
The sources can be configured in the menu Port & VLAN > SPAN > SPAN Session Sources.

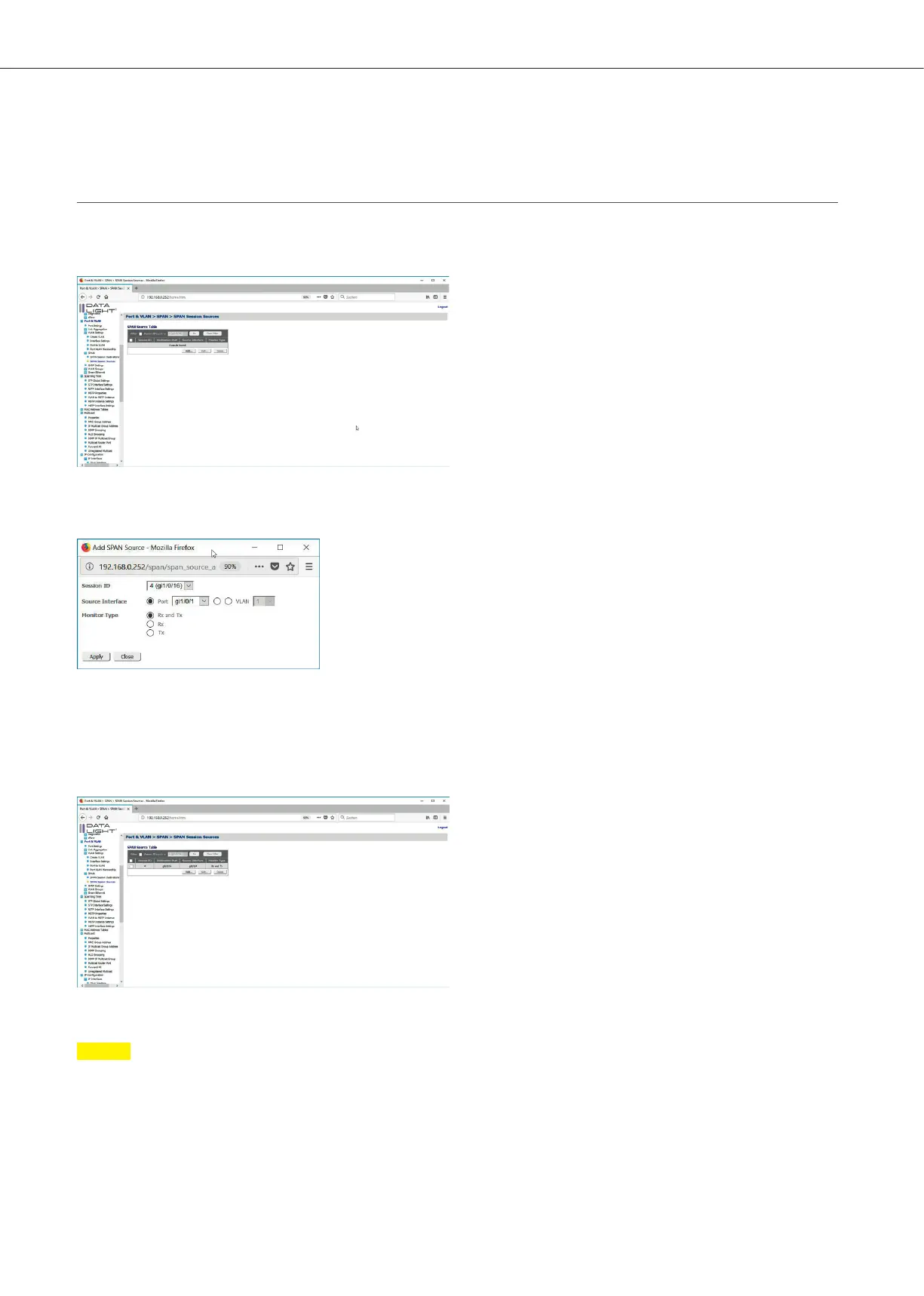

Figure 72: Port Mirroring Source page
Click on “Add” to add sources to an Session.
Figure 73: Port Mirroring Source Popup
Choose the Session ID and the source Port. It is also possible to choose the trac type, which should be mirrored.
After a click on “Apply” the configuration can be seen in the Span Source Table. If more than one source should be used
for one session, repeat this process with the same Session ID.
Figure 74: Port Mirroring Source page with test configuration
Note
If all SPAN configurations were done, don’t forget to save all done configuration permanent on the switch.
The save process is described in the section file management.
