2.3 Basic Configuration

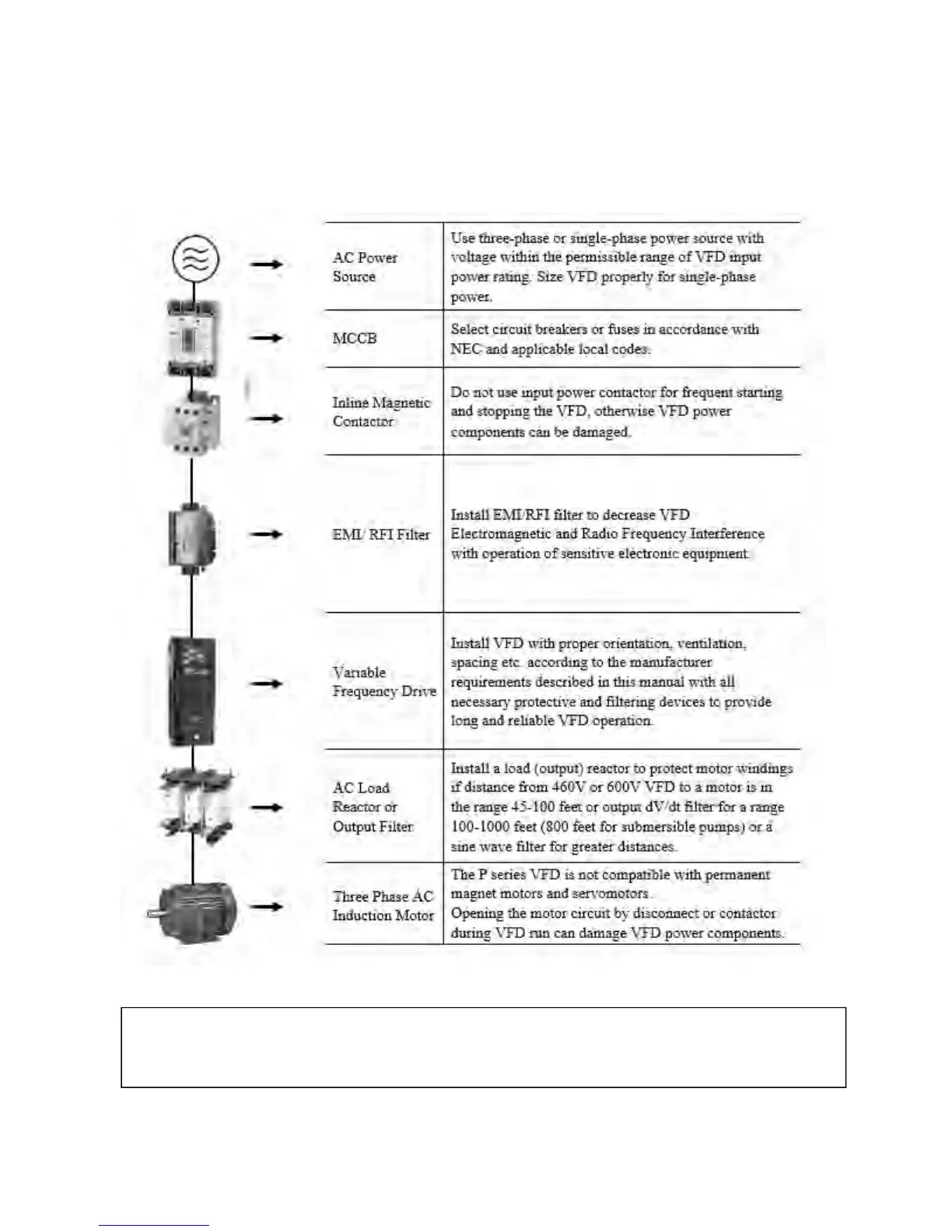

ThefollowingarethemostcommondevicesusedinmotorcontrolbranchoperatedbyVFD.
Adequateperipheraldevicesmustbeselectedandcorrectconnectionsmadetoensureprope rVFD
operation.AnincorrectlyappliedorinstalledVFDcanresultinsystemmalfuncti onorreductionin
productlifeaswellascomponentdamage.Youmu
streadandunderstandthismanualthoroughly
beforeproceedingwithinstallation.
Note:Donotinstallmagneticcontactorinthemotorcircuitforstart/stoporemergencystop
purpose.OpeningthemotorcircuitwhenVFDrunsatabove50%itsratedcapacitycancauseVFD
powercomponentsfailure.
