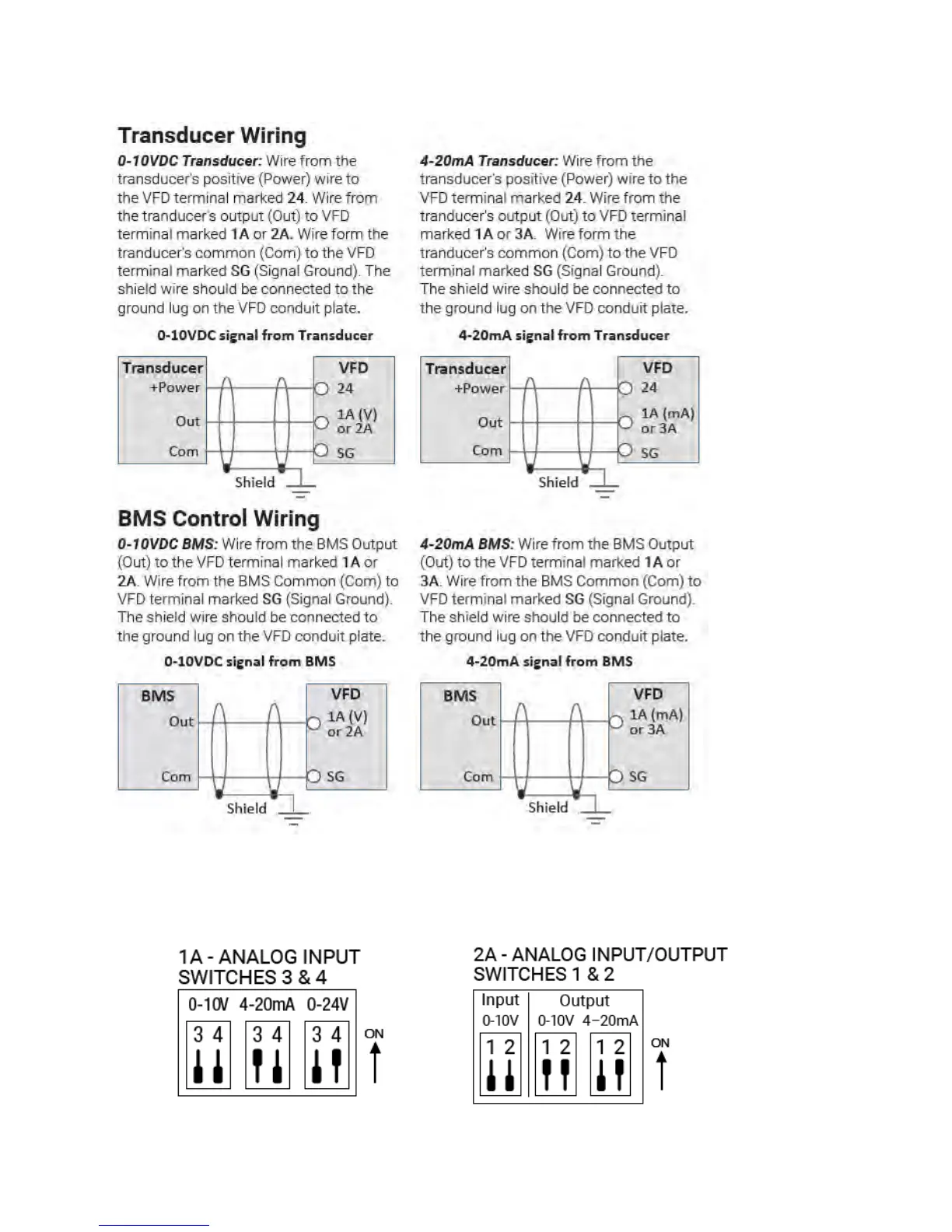

4.9 Signal Wiring
4.10 Analog DIP Switch Configurations
TheanalogI/OconfigurationDIPswitches1through4canbefoundtotherightoftheanalogI/O
terminals.DIPswitchesmustbeconfiguredpertheillustrationsbelowtooperateasdesired.
