CHAPTER 4 – INSTALLATION AND WIRING
CHAPTER 4 - INSTALLATION AND WIRING

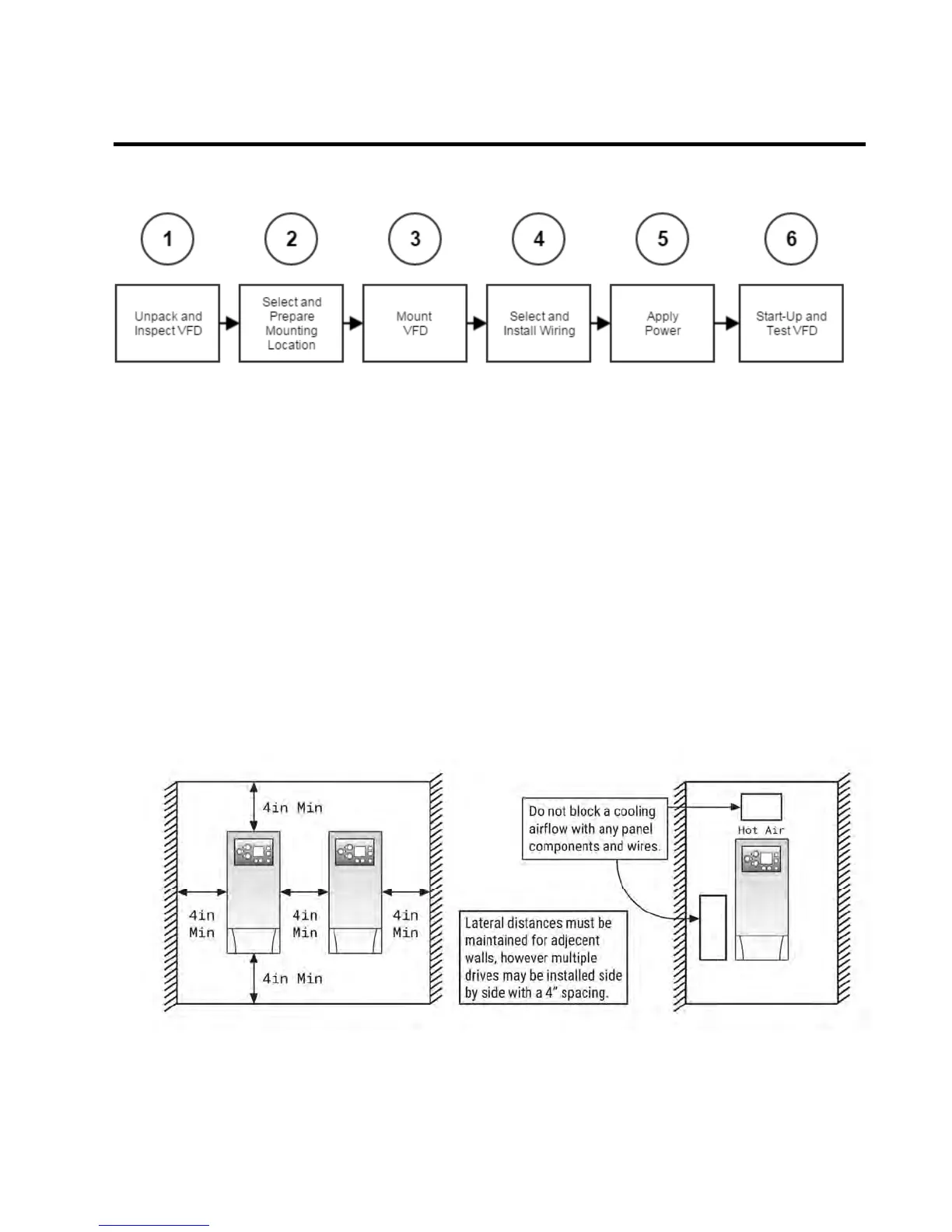

Refer to the flowchart pictured below (Figure 4.1.1) for proper installation of the Q-Link VFD.
(Figure 4.1.1)
4.1 Installation and Precautions

Carefully review all installation warnings and instructions before proceeding.
 Handle VFD with care to prevent damage to the plastic components. Do not hold VFD
by the front cover.
 Do not mount VFD on the equipment with excessive vibration above 5.9 m/sec
2
.
 Install VFD in a location where temperature is within the permissible range 14~122°F
(-10~50°C).
 Install it on a non-combustible surface because VFD generates heat during normal
operation.
 Mount VFD vertically (top up) for proper heat dissipation. Provide sufficient clearance
for an airflow around VFD. (see figure 4.1.1 below)
(Figure 4.1.1)
