4.11 Bypass Controller DIP Switch Configurations
TheBypassController(BPC)DIPswitchescanbefoundontheupperleftoftheunitBPC,presentonlyin
theQ‐LinkSmartBypasspackages.ThedefaultpositionforbothswitchesisOFF.TheBPCmodule
functionscanbeenabledbymovingthedesiredswitchinward(right)towardthecenterofth
emodule

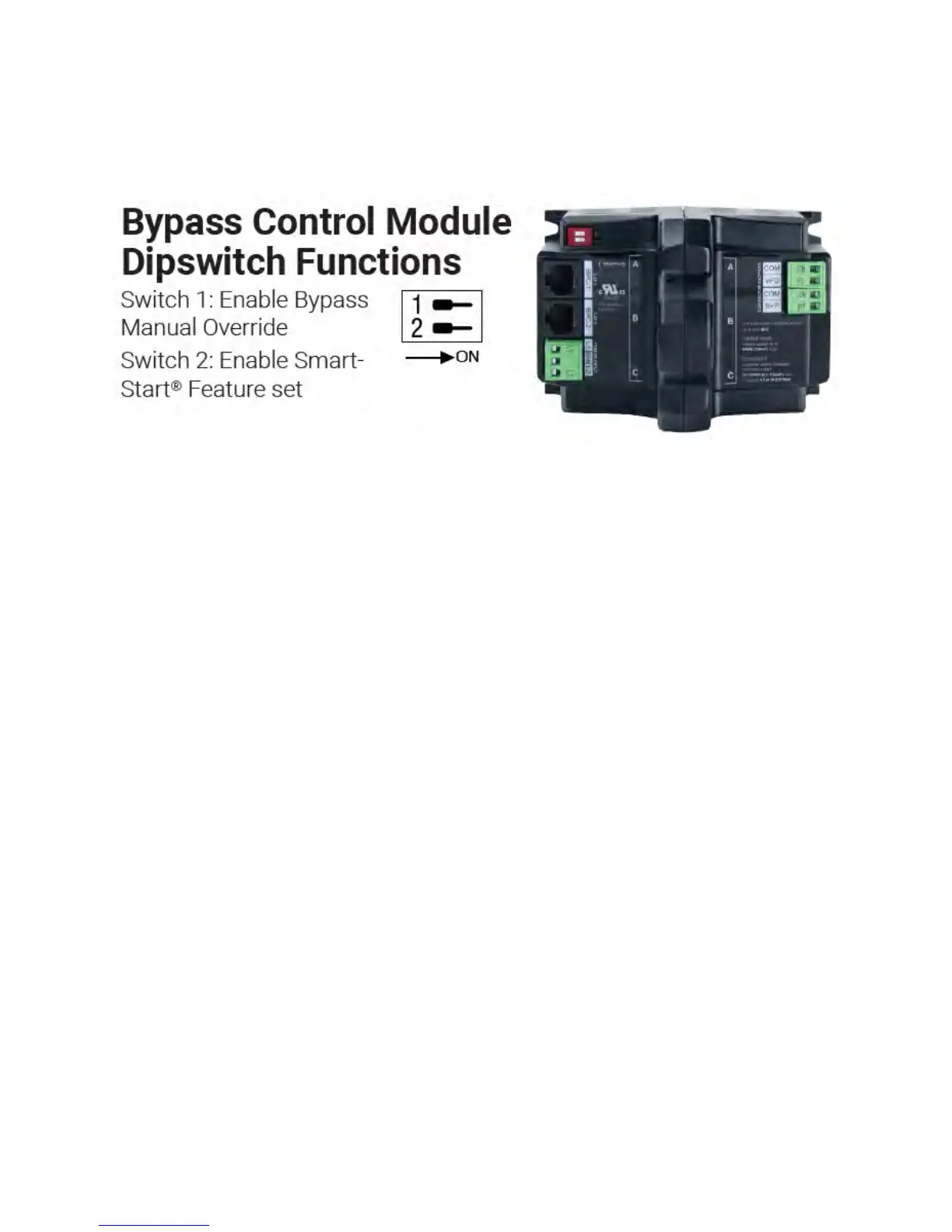

(seeimagebelow).

