4.2 Conduit Guidelines


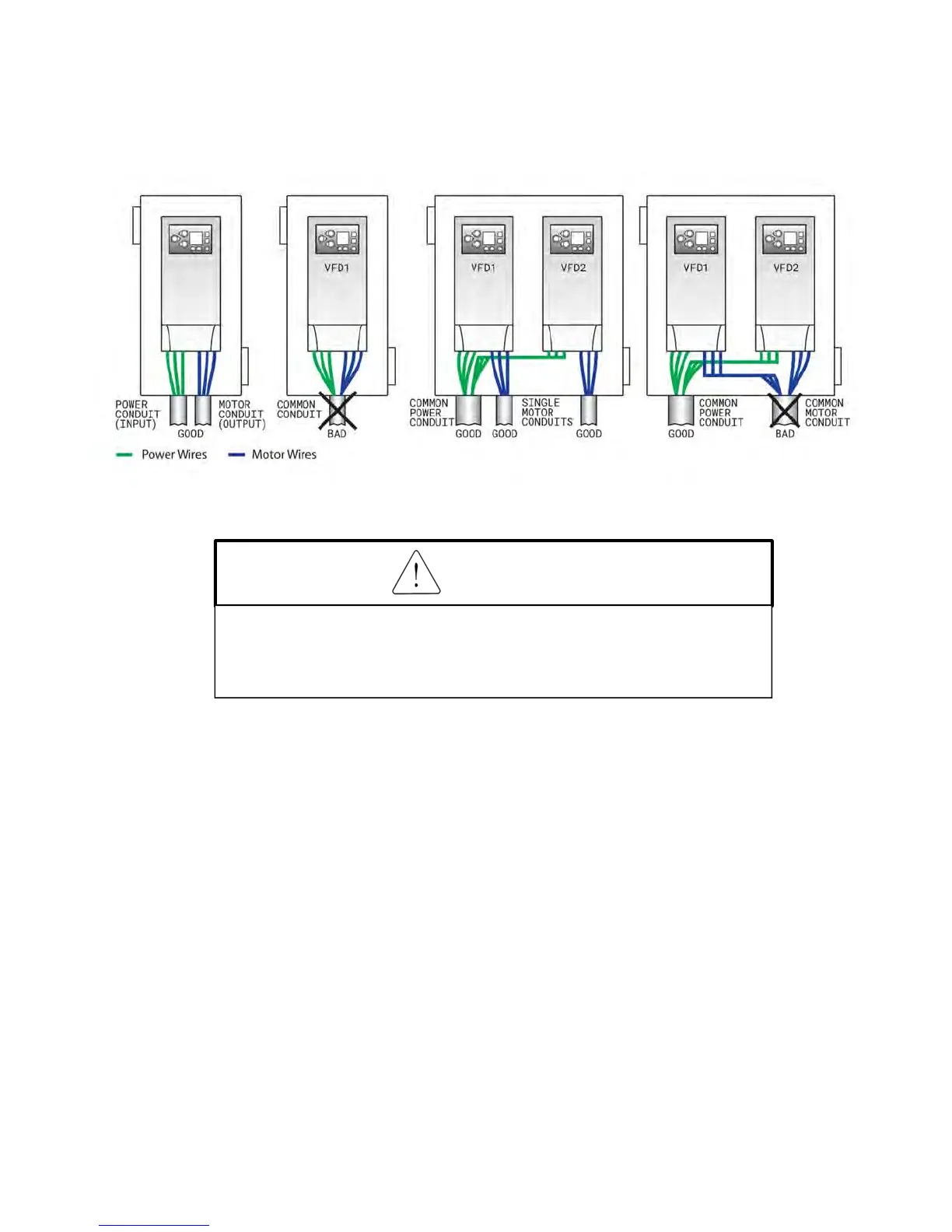

 Follow the conduit guidelines as shown in the figure below. Refer to Figure 4.2.1.
(Figure 4.2.1)






CAUTION
VFDcanmalfunctionorbedamagedifmotorandpowerwiresarein
thesameconduitormotorwiresfromtwoormoreVFDsareinthe
sameconduit.
