8 Cyclone PRO User Manual
CYCLONE PRO
3 CYCLONE PRO HARDWARE
The following is an overview of the features and interfaces of the Cyclone
PRO unit.
3.1 Cyclone PRO Power Supply
The Cyclone PRO requires a regulated 6V DC Center Positive power supply
with 2.5/5.5mm female plug. The Cyclone PRO derives its power from the
Power Jack located on the side of the unit.

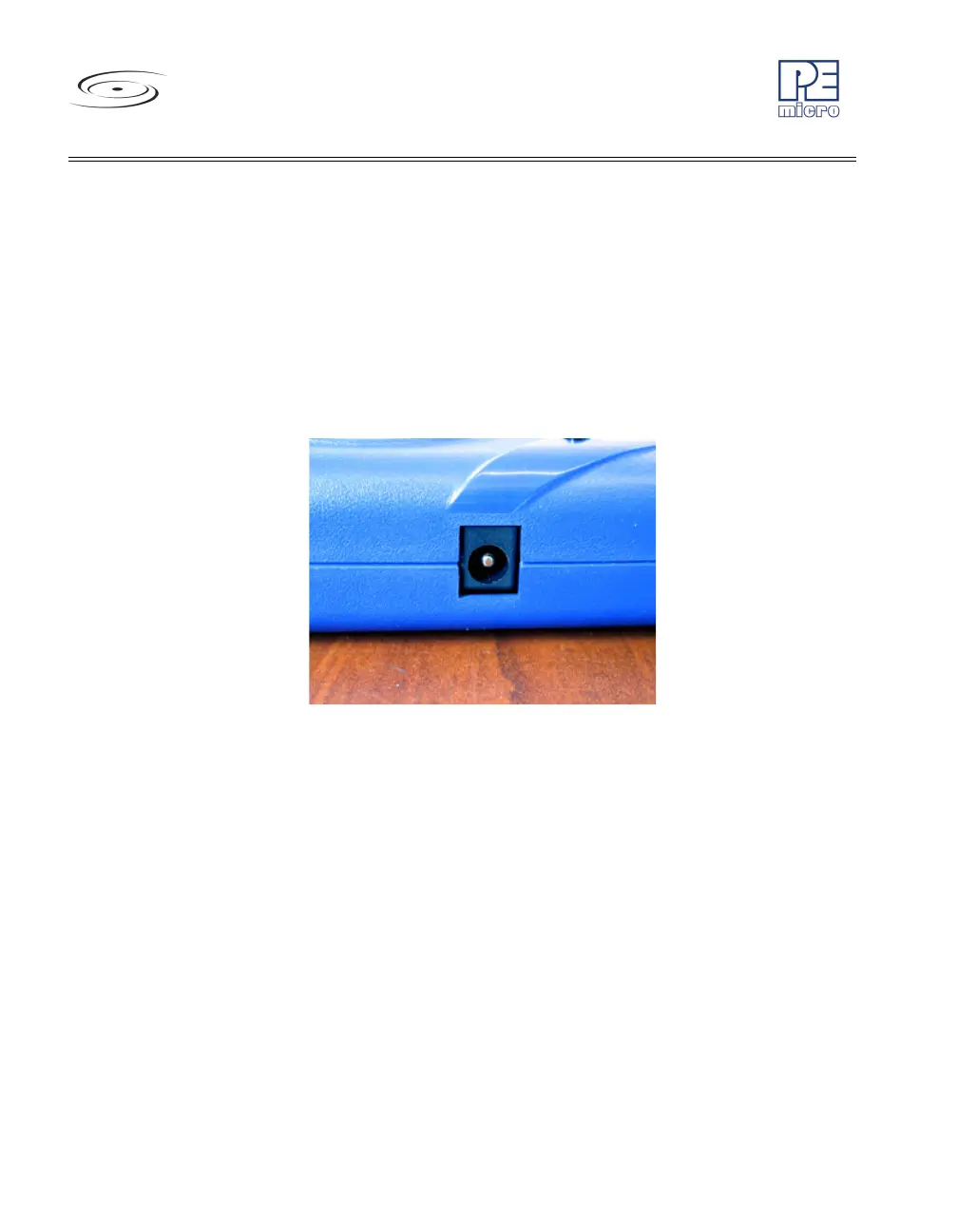

Figure 3-2: Cyclone PRO Power Jack
3.2 RS232 Communication
The Cyclone PRO provides a DB9 Female connector to communicate with a
host computer through the RS232 communication (115200 Baud, 8 Data bits,
No parity, 1 Stop bit).
