136 Cyclone PRO User Manual
CYCLONE PRO
13.28 68HC908MR4/8

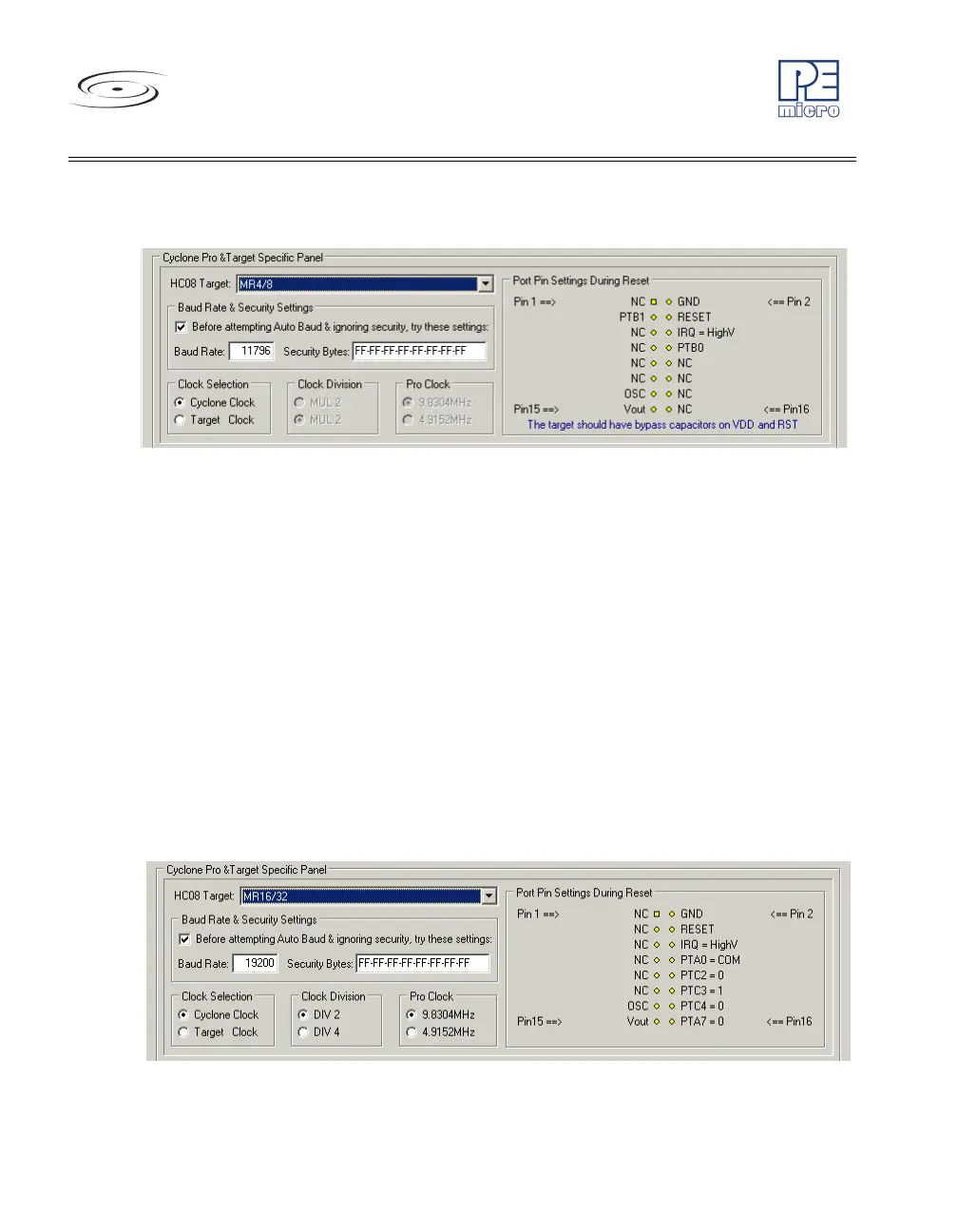

Figure 13-28: 68HC908MR4/8 Family MON08 Pinout
The target GND is connected to the Pin 2 of the target MON08 Header.
The target RESET line is directly connected to the Pin 4 of the target MON08
Header.
The target IRQ line is directly connected to the Pin 6 of the target MON08
Header.
PORTB0 from the target processor is connected to the target MON08 Header
Pin 8, acting as the target MR4/8 data receiving line. The Cyclone PRO pulls
up this signal with a 10K Ohm resistor to the target VDD.
PORTB1 from the target processor is connected to the target MON08 Header
Pin 3, acting as the target MR4/8 data transmitting line. The user need to pull
down this signal with a 10K resistor to GND.
13.29 68HC908MR16/32
Figure 13-29: 68HC908MR16/32 Family MON08 Pinout
