54 Cyclone PRO User Manual
CYCLONE PRO

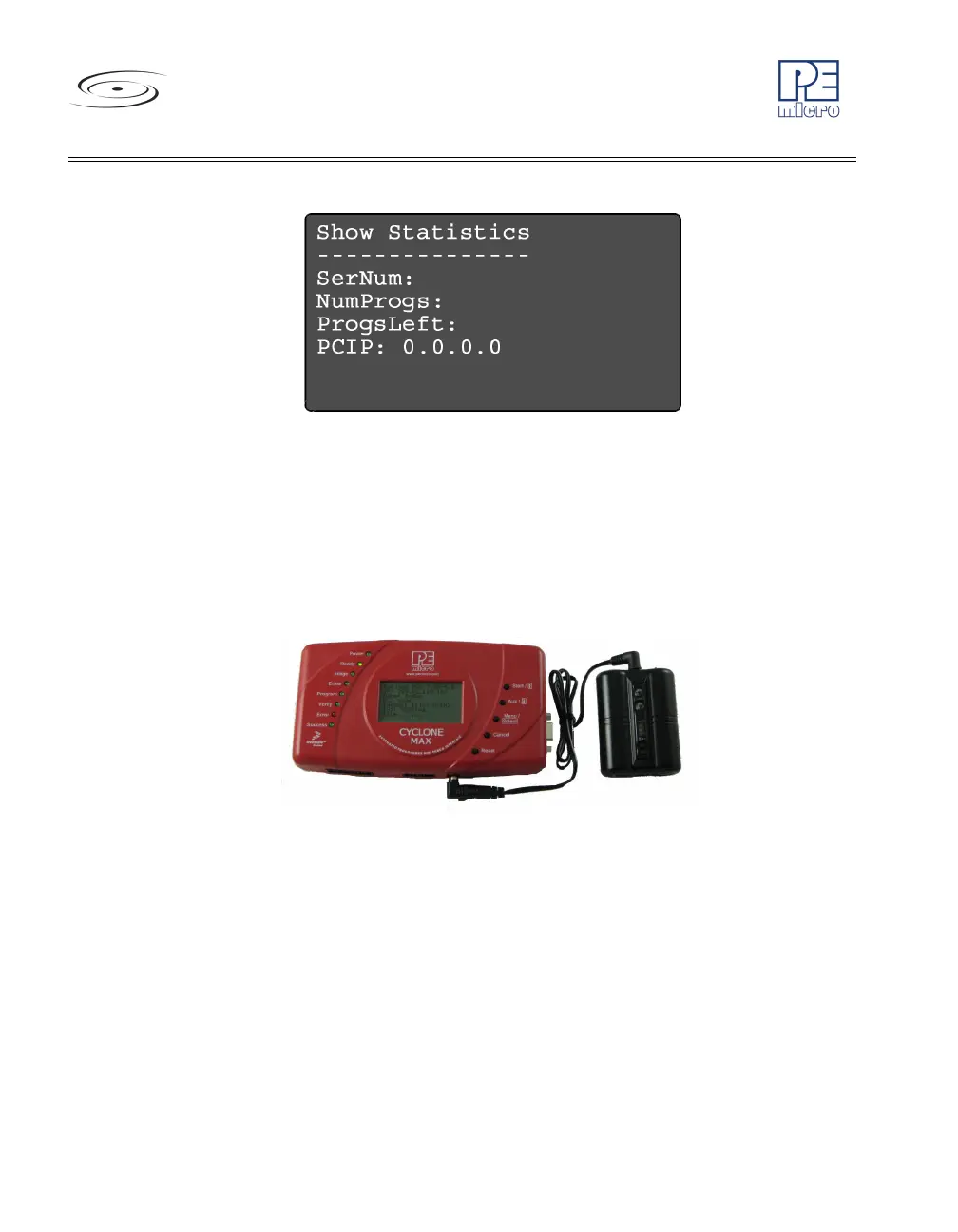

Figure 6-6: Show Statistics
6.3 Cyclone Battery Pack
Manual control of stand-alone mode is also useful for performing field
updates. In this situation, there is often no access to a PC or power outlet.
However, the Cyclone may be powered by using a Cyclone PowerPack,
which is a lightweight and compact lithium ion battery (available separately).
Figure 6-7: Cyclone with Cyclone PowerPack
The combination of the Cyclone programmer and the battery pack creates a
fully operational field programming setup that is lightweight, compact, and
extremely portable. All that is required for a field update is to connect the
battery-powered, pre-programmed Cyclone to the target and initiate
programming.
