Cyclone PRO User Manual 15
CYCLONE PRO
pinouts for different HC08 devices are specified in the configuration software
and also in CHAPTER 13 – TARGET MON08 HEADER PINOUTS.
3.11 Ribbon Cable
The Cyclone PRO communicates with the target through either a 16-pin
ribbon cable (MON08) or 6-pin ribbon cable (BDM). Both have a 0.100-inch
centerline dual row socket IDC assembly (not keyed). The ribbon cable is
designed such that the Cyclone PRO MON08/BDM Connector and the Target
Header have the same pinout, i.e., Pin 1 of the Cyclone PRO MON08
Connector is connected to Pin 1 of the target MON08 Header. Figure 3-10
sketches the connection mechanism (looking down into the sockets) for the
MON08 ribbon cable. The 6-pin BDM ribbon cable uses a similar scheme with
fewer pins.

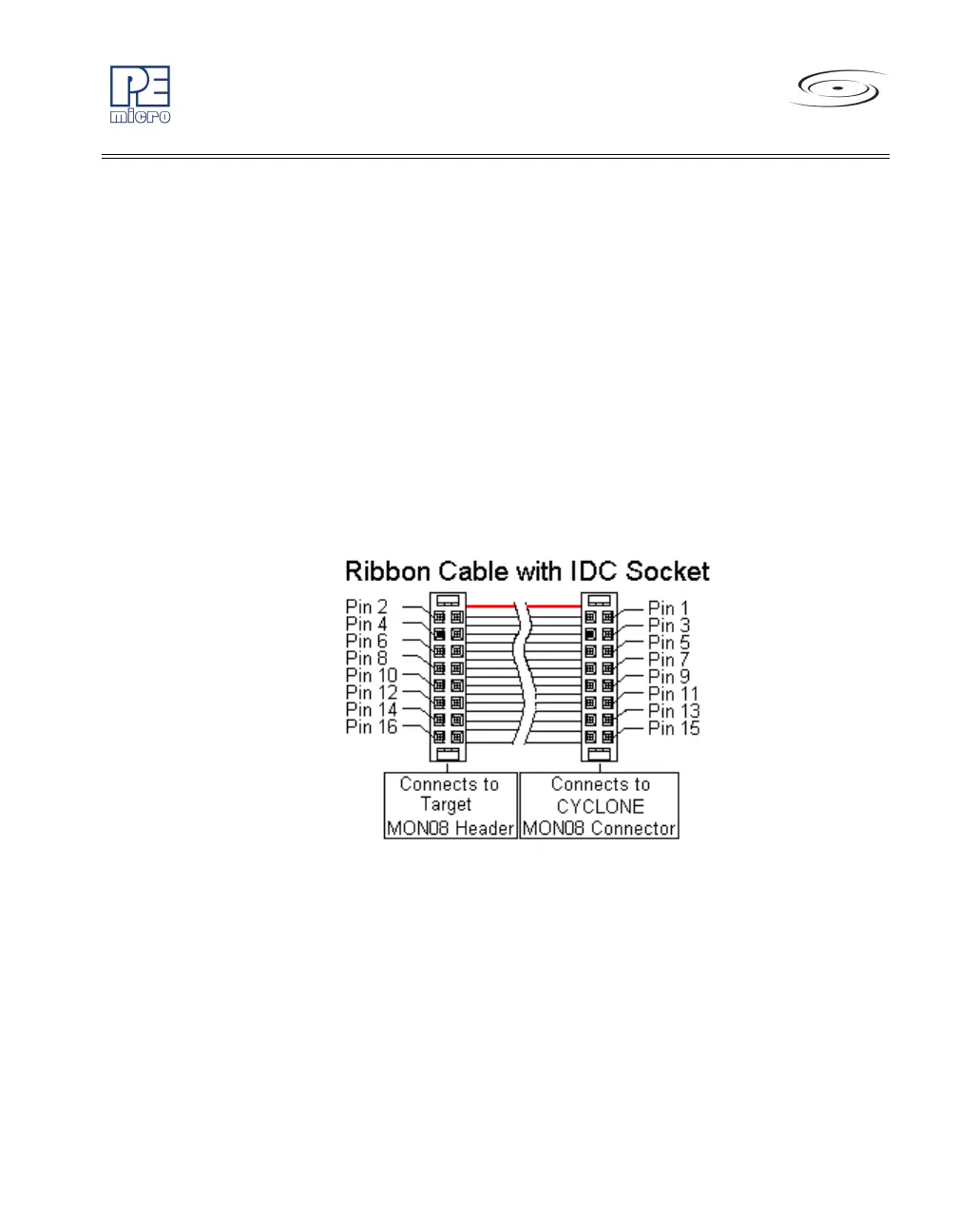

Figure 3-10: Ribbon Cable Diagram When Looking Into IDC Socket
3.12 Target Power Management
Note: Cyclone PRO Rev. C implements different jumper settings than previous
revisions of the hardware. Rev. C has added a fifth jumper position, which
was necessary for the “Power In Jack ->Power Out Jack” power management
setting. Rev. C has also added new target management schemes, including
one for BDM Pin6, which are explained below.
The Cyclone PRO provides three target power management schemes for
