10 Cyclone PRO User Manual
CYCLONE PRO

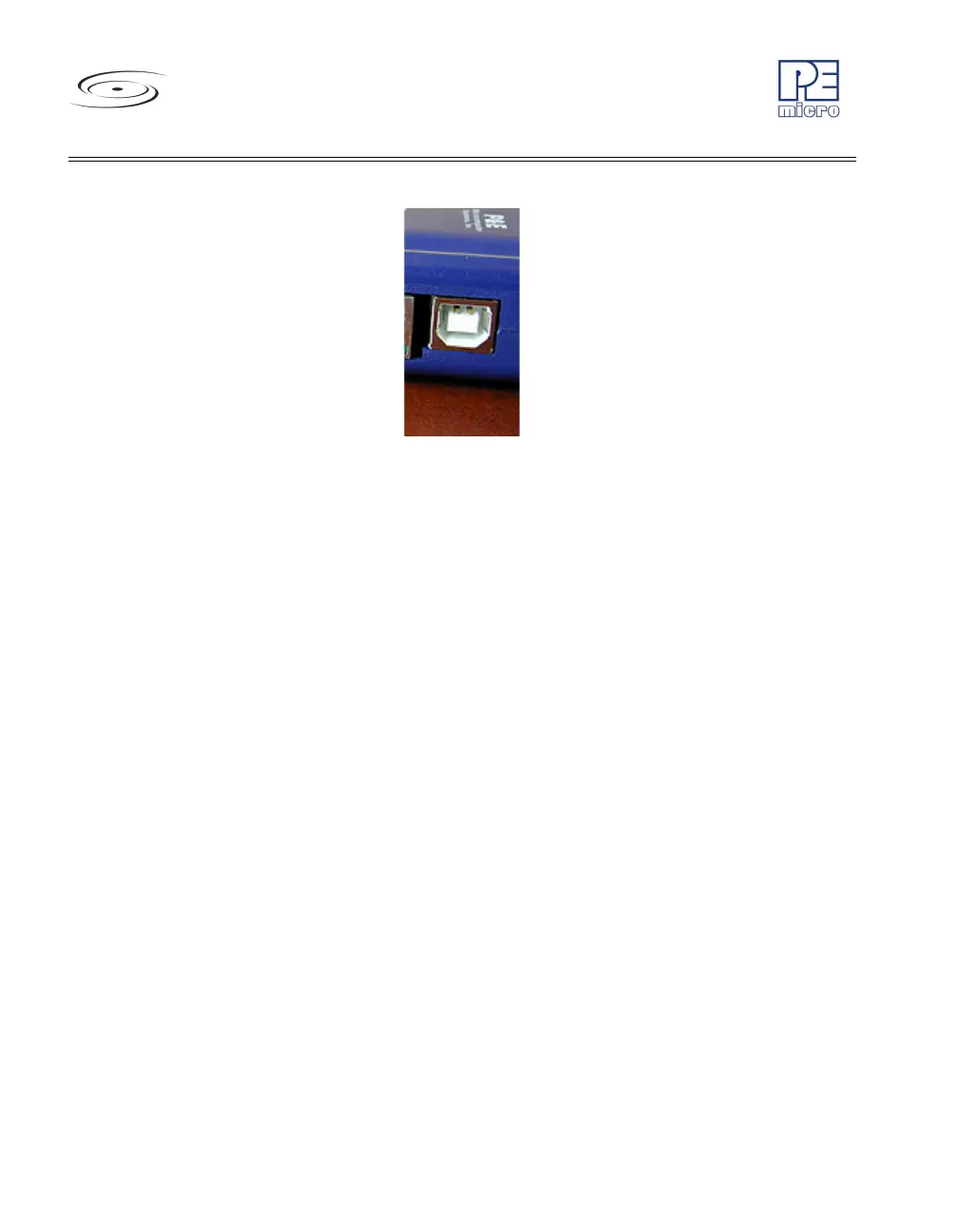

Figure 3-5: Cyclone PRO USB Connector
3.5 Electromechanical Relays
Inside the Cyclone PRO, two electromechanical relays are used to cycle
target power. The specifications of the relays are as following:
Maximum switched power: 30W or 125 VA
Maximum switched current: 1A
Maximum switched voltage: 150VDC or 300VAC
UL Rating: 1A at 30 VDC
1A at 125 VAC
P&E only recommends switching DC voltages up to 24 Volts.
