Cyclone PRO User Manual 9
CYCLONE PRO

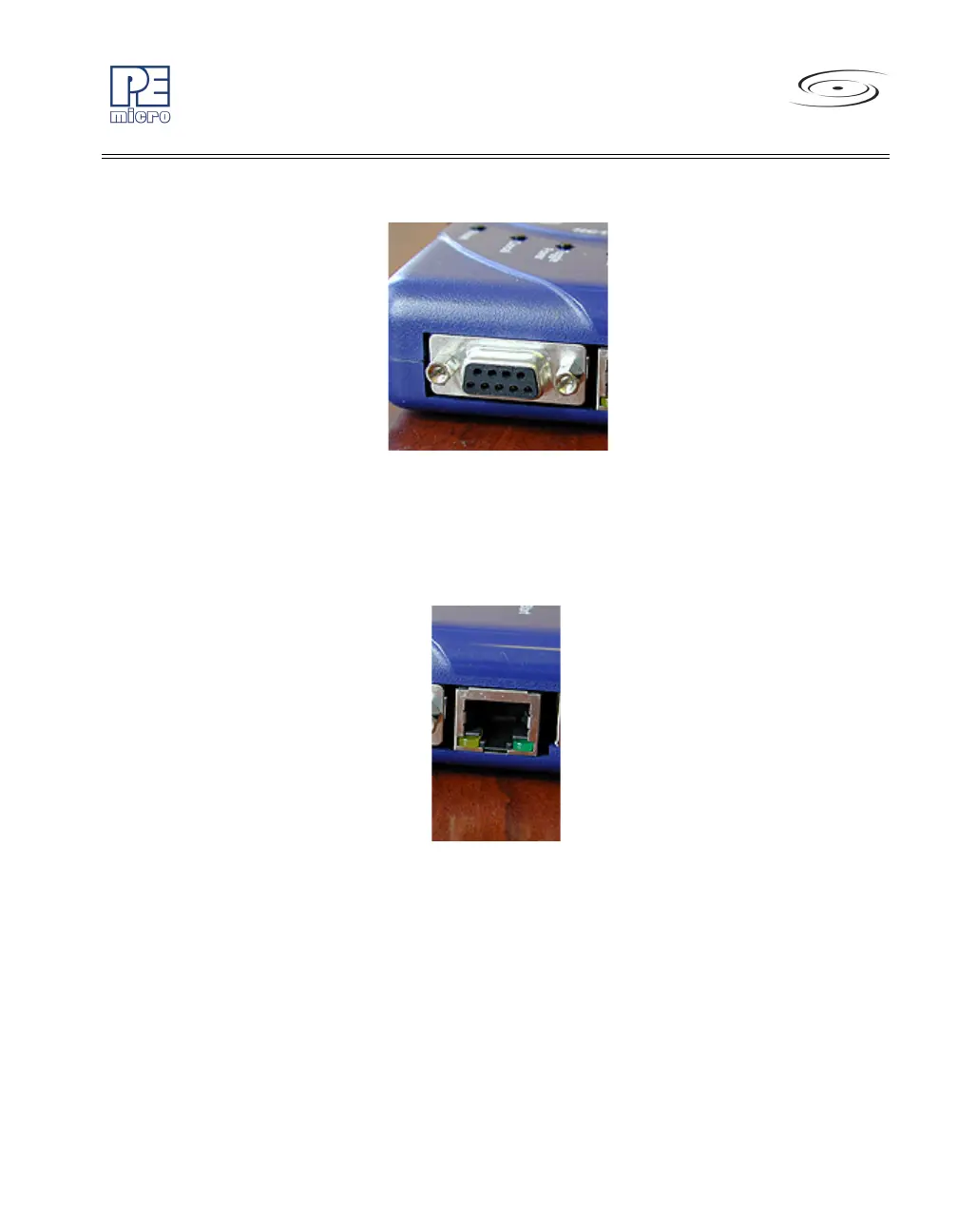

Figure 3-3: Cyclone PRO RS232 Connector
3.3 Ethernet Communication
The Cyclone PRO provides a standard RJ45 socket to communicate with a
host computer through the Ethernet Port (10/100 BaseT).
Figure 3-4: Cyclone PRO Ethernet Connector
3.4 USB Communications
The Cyclone PRO provides a USB connector for Universal Serial Bus
communications between the Cyclone PRO and the host computer. The
Cyclone PRO is a USB 1.1 compliant device.
