Cyclone PRO User Manual 21
CYCLONE PRO

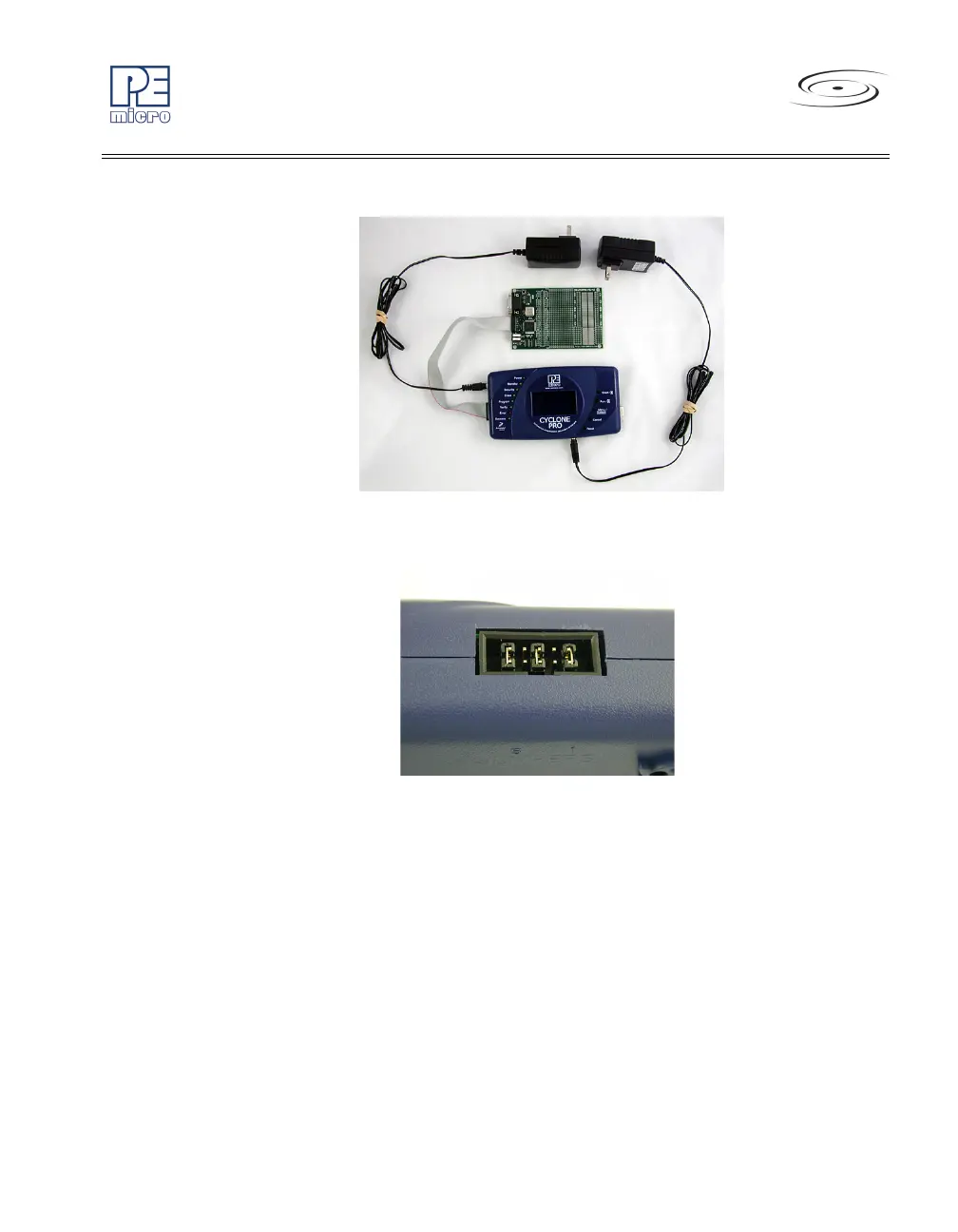

Figure 3-20: Using Power IN Jack And MON08 Header Pin 15
Figure 3-21: Jumper Settings For Power IN Jack And MON08 Header Pin 15
Jumpers 1, 3, and 5 are enabled. Jumpers 2 and 4 are left open.
3.12.5 Target Powered Independently Of Cyclone PRO
For ColdFire V1/HC(S)12(X)/HCS08/RS08 devices, the target may be
powered independently of the Cyclone PRO. The user should remove all
jumpers on the Cyclone PRO except jumper 5 if they elect to provide a
separate power source for the target.
3.13 CompactFlash Port
The CompactFlash port can be activated by purchasing a CompactFlash
Activation License from P&E. The CompactFlash port accepts Type I
