Cyclone PRO User Manual 53
CYCLONE PRO

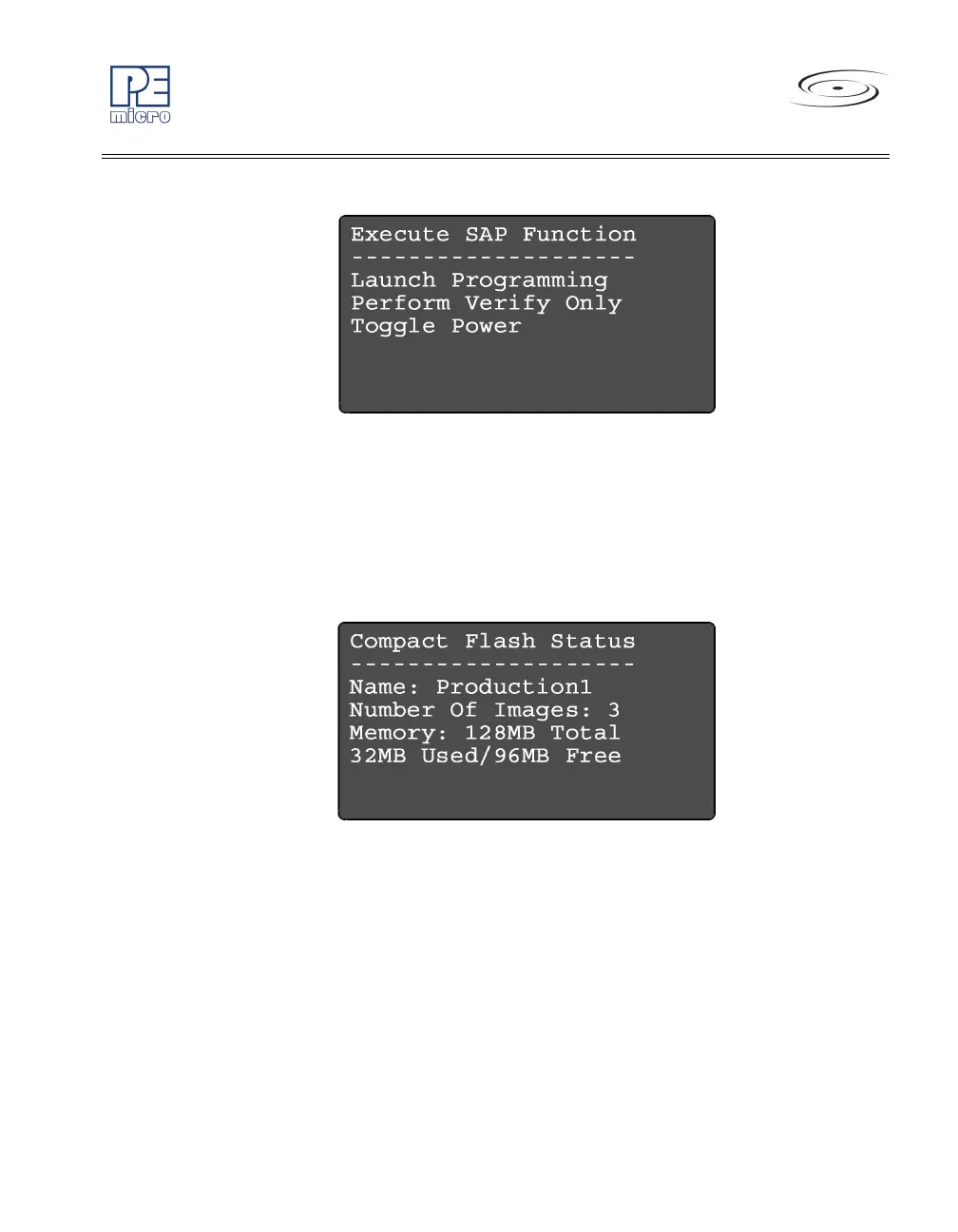

Figure 6-4: Execute SAP Function
6.2.2.2 Compact Flash Status
If a compatible CompactFlash card is loaded into the Cyclone, the
Compact Flash Status menu selection displays information about that
CompactFlash card, including its name, the number of images it contains,
and the amount of free, used, and total memory it contains.
Figure 6-5: Compact Flash Status
6.2.2.3 Show Statistics
The fourth line (PCIP:) displays the IP address of the last PC to control
the Cyclone PRO. The other categories listed are for future use and are
not currently implemented.
