Cyclone PRO User Manual 59
CYCLONE PRO
8.1.2 In-Circuit Debugger
The ICD In-Circuit Debugger uses the Cyclone PRO to control the target
HC08, HCS08, RS08, HC(S)12(X), or ColdFire V1 device. With the ICD In-
Circuit Debugger you can load code into the on-chip RAM, run code out of
RAM or FLASH (already programmed by the In-Circuit Programmer), and set
many software breakpoints and a single hardware (meaning in FLASH)
breakpoint. The main advantage of using the ICD is that your application runs
in real-time at the full bus speed of the processor.

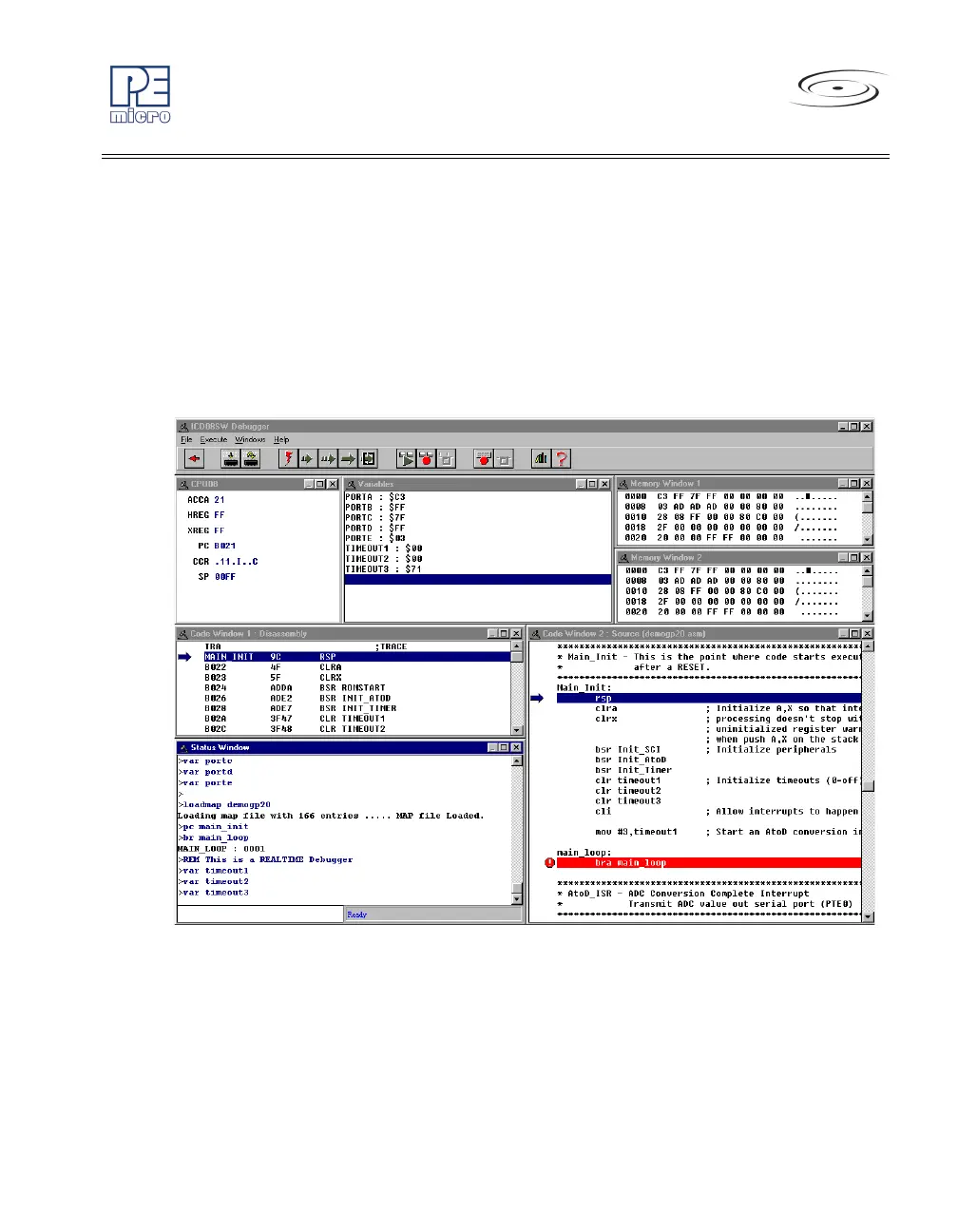

Figure 8-2: ICD08SZ Debugger Screen Snapshot
Debugger features include:
• Full-speed in-circuit emulation
• Breakpoints with counters on the Nth execution
• Variables window showing multiple data types
