freightliner 122SD - Page 22

f611069
10/16/2009
1/2
ULTRA LOW SULFUR
DIESEL FUEL ONLY
EF
DEF
FE
8
2
910
1
11
3
5
7
6
4
13
15
16
14
12
1. Engine Oil Temperature Gauge
2. Lightbar
3. Engine Oil Pressure Gauge
4. Coolant Temperature Gauge
5. Forward Drive Axle Oil
Temperature Gauge
6. Battery Voltage Gauge
7. Rear Drive Axle Oil Temperature
Gauge
8. Driver Message Center
9. Tachometer
10. Speedometer
11. Transmission Oil Temperature
Gauge
12. Primary Air Pressure Gauge
13. Secondary Air Pressure Gauge
14. Fuel/DEF Level Gauge
15. Application Air Pressure Gauge
16. Application Air Pressure Gauge

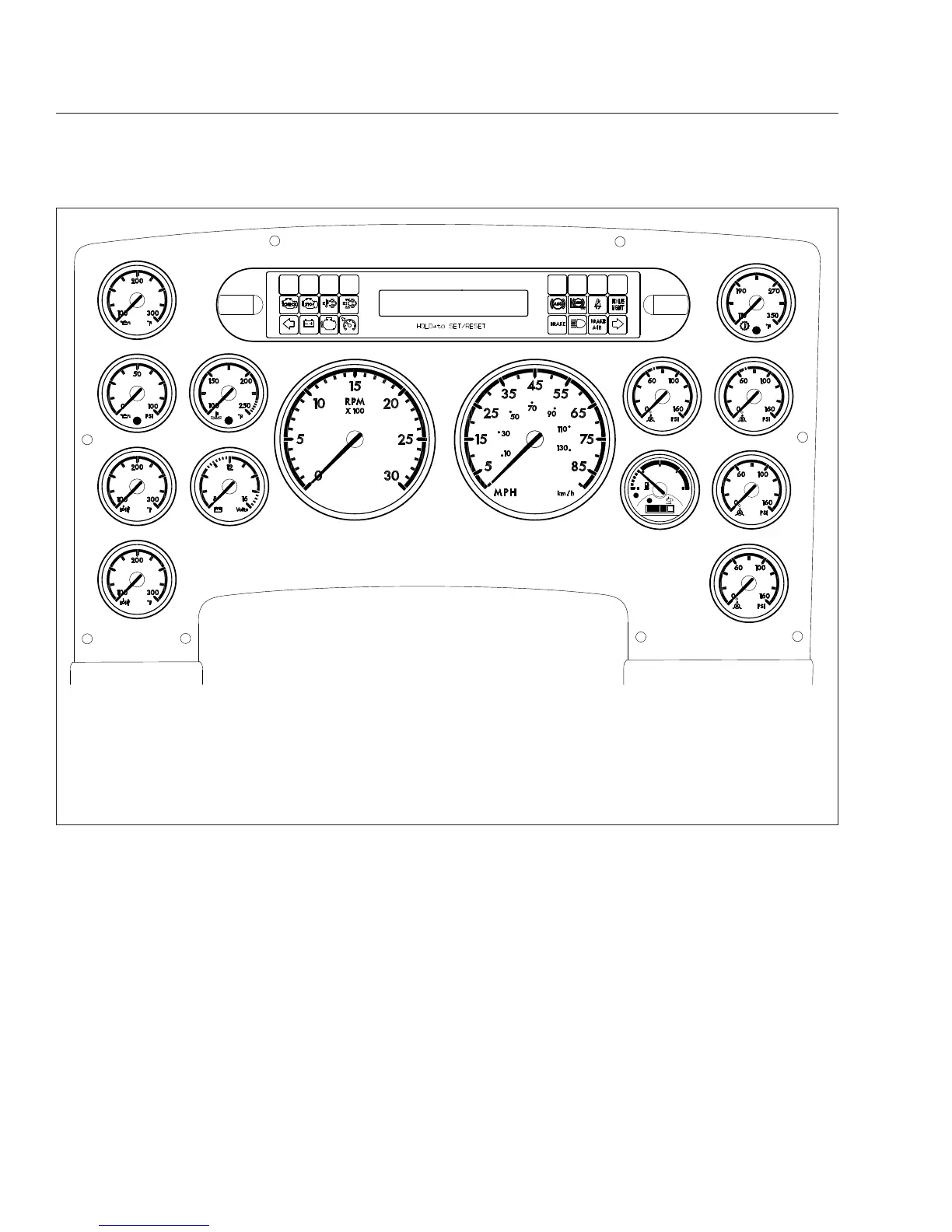

Fig. 4.2, Typical ICU4M Layout
Instruments
4.3
