Common Warning and Indicator Lamps
Lamp Description Color
STOP
STOP Engine
*
Indicates a serious fault that requires engine shutdown
immediately. The engine protection system will reduce the
maximum engine torque and speed, and, if the condition
does not improve, will shut down the engine within 30 to 60
seconds.
Safely bring the vehicle to a stop on the side of the road
and shut down the engine as soon as the red light is seen.
If the engine shuts down while the vehicle is in a
hazardous location, turn the key to the OFF position for
a few seconds, then restart the engine and move the
vehicle to a safer location.
Red
02/20/2013 f611204
1
2
3
7
8
9
10
11
12
6
4
13
5

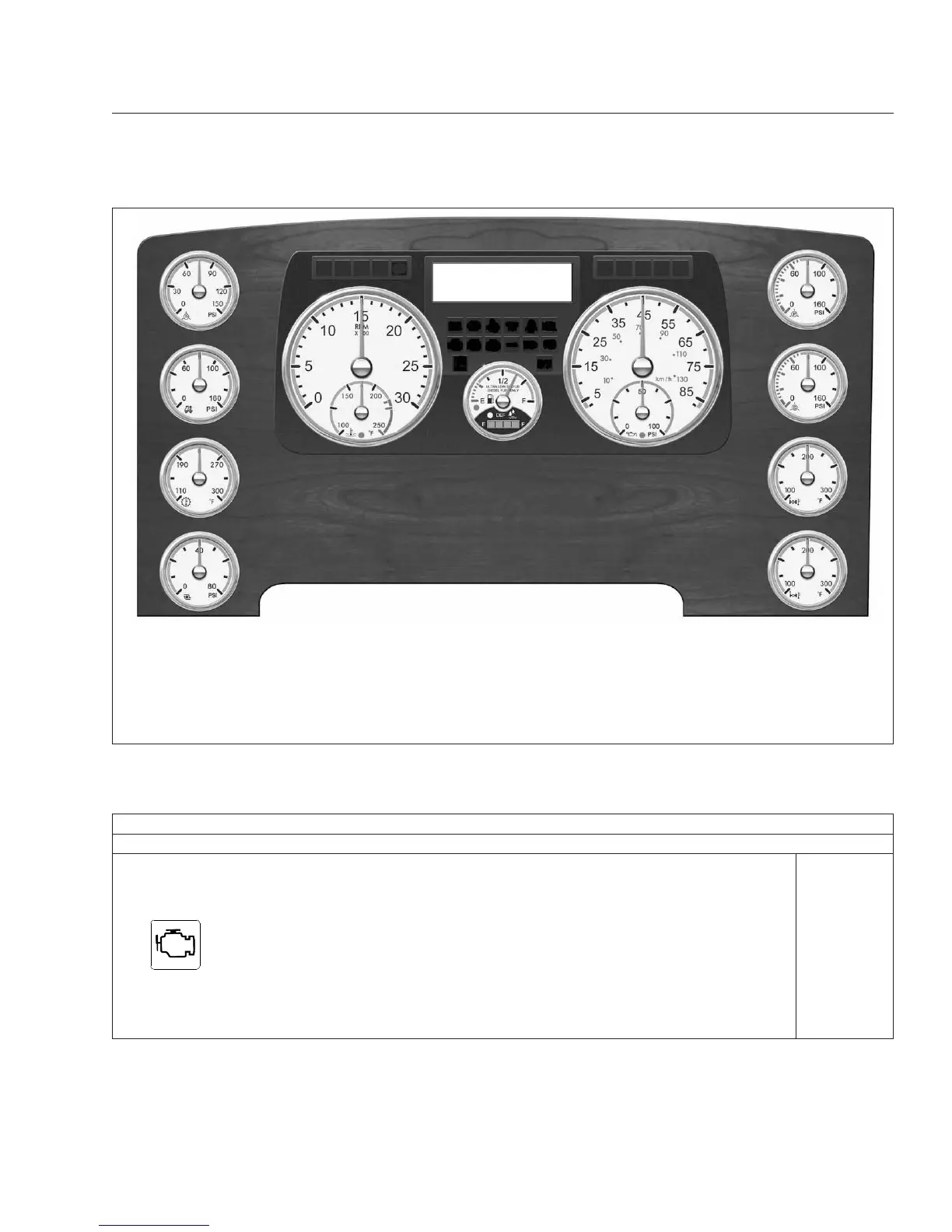

1. Application Air Pressure Gauge
2. Suspension Air Pressure Gauge
3. Transmission Oil Temperature
Gauge
4. Turbo Pressure Gauge
5. Lightbar
6. Driver Message Center
7. Tachometer and Coolant
Temperature Gauge
8. Fuel/DEF Level Gauge
9. Speedometer and Engine Oil
Pressure Gauge
10. Primary Air Pressure Gauge
11. Secondary Air Pressure Gauge
12. Front Axle Temperature Gauge
13. Rear Axle Temperature Gauge
Fig. 4.3, ICU4Me Instrument Cluster
Instruments
4.4
