FRICK QUANTUM EVAPORATOR CONTROL PANEL S90-600 O
OPERATION Page 19
CONTROL SETUP -
“TIME SCHEDULE” SCREEN

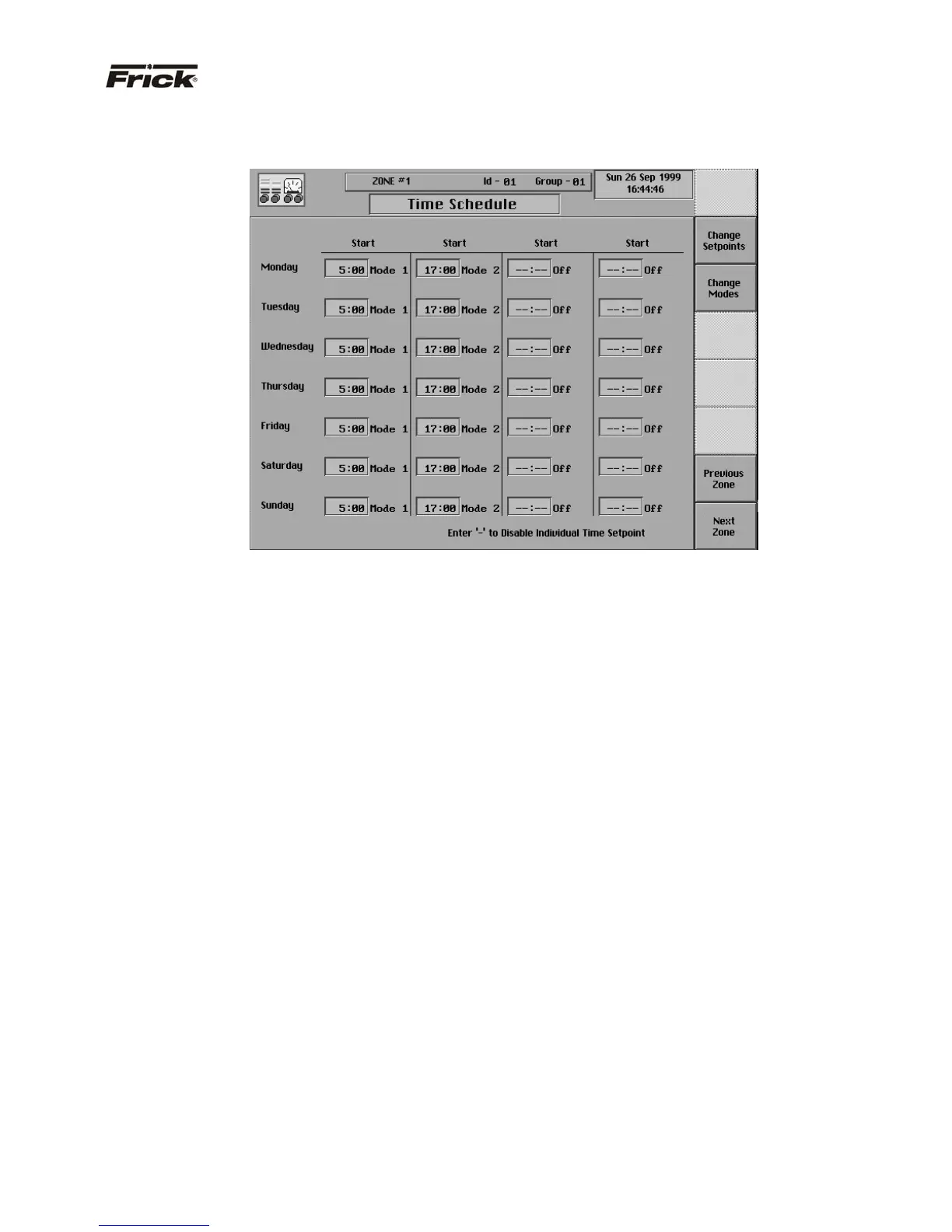

This screen shows a time schedule. The “Time Schedule”
is a schedule of what time of day to start controlling the
temperature of the zone by using either Mode 1, 2, or 3
control setpoints or turning off control. The modes can be
used to maintain different temperatures. One mode could
be used to save energy. For example, at night or on
weekends, when room doors are kept closed, a higher
temperature can be set to reduce energy consumption.
The “Time Schedule” is used to select which set of control
setpoints (mode) to use based on the time of day. Each
unit can have up to four different start times scheduled per
day that can vary each day of the week. An entry of “-” will
void the time entry field. The “Time Schedule” is only used
if the zone is in automatic mode. The time schedule is
used to switch the active control mode to another mode at
a start time.
The following is a description of the setpoints:
· Start – The time of day to switch to another
mode of control. The time of day is represented
using a 24-hour clock, i.e. 00:00 is midnight and
23:59 is a minute before midnight
· Mode - Three separate groups of setpoints
(modes) can be used to control one zone’s
temperature. The following modes can be
selected.
· Mode 1
· Mode 2
· Mode 3
· Off
