FRICK QUANTUM EVAPORATOR CONTROL PANEL S90-600 O
OPERATION Page 27
ANALOG CALIBRATION -
“TEMPERATURE CALIBRATION” SCREEN

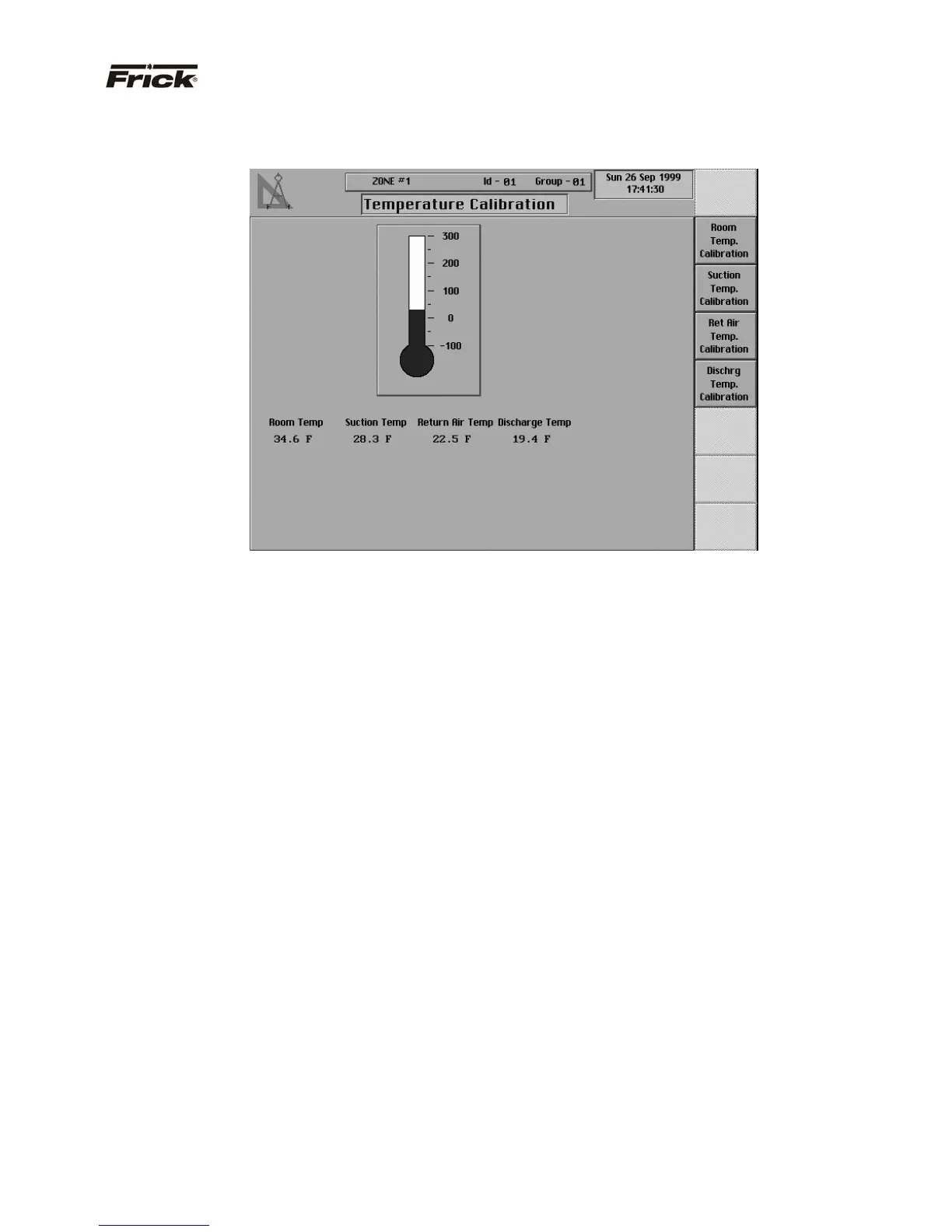

This screen shows a thermometer and the current
temperature readings for:
· Room
· Suction - (enhanced unit only)
· Return Air
· Discharge
The Setting for the “Current Value” is blank until a
temperature for calibration is selected from the screen
keys. A screen key exists for each of the displayed
temperature readings. When a temperature calibration is
selected, the identification of the temperature
measurement sensor and its settings are shown. It is at
this time that the thermometer will also show the current
reading. Select the [Calibration Setpoints] screen key to
modify the present calibration.
